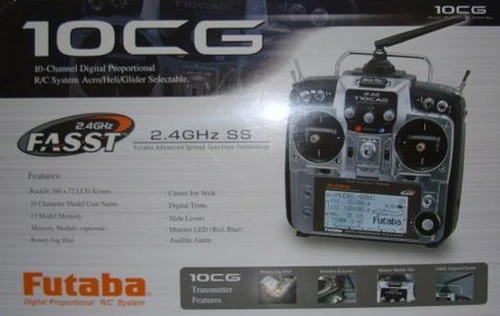

10CHG Futaba 10-Channel 2.4GHz/ R6208SB

• The 10CG: pro-level features at a sport-system price.
• The 10CG is perfect for the price-conscious pilot —
  an integrated, 2.4GHz treasure trove of features formerly found only on the
  most advanced Futaba systems.
• But it’s also a system that boasts advantages few
  others can claim: 7-point throttle and pitch curves; 4 heli flight modes;
  a round dozen factory-defined glider mixes; graphics for programming swash
  plate types; swash ring; and logic switches that allow you to activate a timer
  or other function just by changing the positions of specific sticks or switches.

10CG System Overview:

• Dial ‘n Key™ programming w/joystick
• Airplane, heli and glider software
• 2048 resolution
• Real-Time Response™
• Smart Switch Technology™
• Basic & advanced menus
• 15-model memory, expandable to 48 models*
• 10-character model & user naming
• Assignable switches & dials/functions
• Model select, copy, re-set
• Data transfer
• 2 proportional slider switches
• Fail-safe, sub-trims, servo reversing & EPA
• Digital trims & trim step, expo & dual/triple
  rates
• 160 x 72 backlit LCD w/adjustable contrast
• Servo monitor display
• Auxiliary channel screen for 1-step function/switch assignment
• Model & system timers
• Full functionality trainer system (cord required)
• Throttle cut, hold & idle down
• Mode 1-4 selectable
• Sticks w/length and tension adjustments
  * Requires optional 128K CAMPac Module (FUTM9408)

Airplane Features:

• 8 programmable mixes
• Elevator/Flap
• Throttle needle
• Aileron differential
• Flaperons
• V-tail
• Elevon
• Air brake w/elevator delay
• Ailevator
• 4-position snap roll switch
• 2 independent gyro settings
• 7-point throttle curve
• Flap trim

Heli Features:

• 6 programmable mixes
• Hover/pitch
• Hover throttle
• 8 swash plate types w/graphics
• Swash AFR
• 5-point revo mixing
• Gyro menu
• 7-point throttle & pitch curves w/delay
• High/low pitch setting
• Swash ring
• Throttle hold 3 idle-ups w/delay

Glider Features:

• 8 programmable mixes
• Butterfly/elevator (2)
• Elevator/flap
• Chamber mix
• Aileron/flap
• Aileron/rudder
• Flaperons
• V-tail
• 4-point offset
• Spoiler mix
• Single/dual flap servos
• 5 flight conditions
• 3 wing types
• Adjustable motor cut

Glider Features:

• 8 programmable mixes
• Butterfly/elevator (2)
• Elevator/flap
• Chamber mix
• Aileron/flap

R6208SB:

• R6208SB is a new S.Bus System 2.4Ghz High Voltage Receiver
  from Futaba. It utilizes digital serial data communication technology to transmit
  control signals between the receiver and servos using S.Bus hubs and cables.
• The 10CG 2.4GHz is the perfect system for the value-oriented
  pilot: offering far more than you’d expect for less than you’d
  imagine.

Includes:

• Futaba 10CHG 2.4Ghz Transmitter
• R6208SB High Voltage Receiver
• Heavy-Duty Switch Harness
• *No RX Battery

R6208SB Spec:

• Operating Voltage: 3.8V ~ 7.4 V
• Dimensions: 1-7/8 x 1 x 9/16″ (47 x 24.9 x 14.3mm)
• Weight: 0.5oz (13.8 g)
