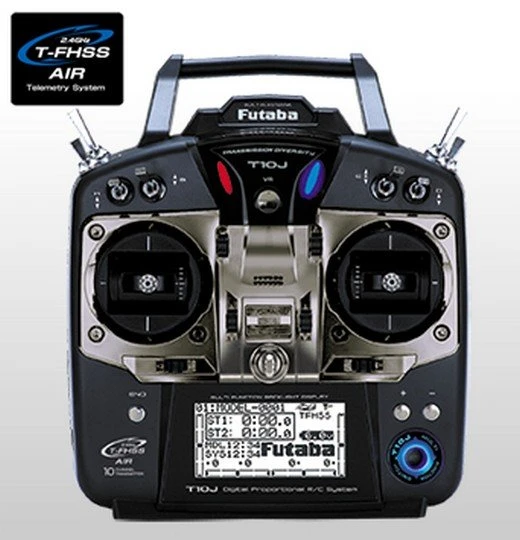

10JM Futaba – 2.4GHz T-FHSS Multicopter R3008SB Receiver Mode 1 T10J

The Futaba 10J has T-FHSS AIR system which is 2.4GHz telemetry system.It is
a high-performance radio that it has not only Airplane and Helicopter mode but
also Multicopter and glaider mode.

The 10J has a text-to-speech function from audio output connetor. So you can
make sure of telemetry data safely withot take your eyes off from your fliying
body.

It is also equipped with vibrator function to inform you such as voltage drop.

System Features:

• Futaba T-FHSS, S-FHSS 2.4GHz security
• Airplane, heli, glider and multi-rotor software
• 30-model memory
• S.Bus capable T-FHSS receiver
• Telemetry
• Synthesized voice for telemetry data
• Vibration alerts for alarm conditions and low battery
• User-updatable software (requires optional CIU-2 interface)
• Wireless data transfer among 10J transmitters
• Built-in S.Bus programming link for S.Bus servos
• 10-character model and user naming
• Large (128 x 64 dot) backlit LCD display
• 10 channels (one variable knob, five 2-position switches, two 3-position
  switches, one momentary switch, two digital levers)
• Built-in diversity antenna
• Jog dial and 3 buttons for fast, easy programming
• Sub-trim and fail-safe (all channels)
• Servo reversing, endpoint adjustment, digital trims, dual rates/exponential*
  & ATL
• Trim step adjustability
• Trainer system
• Throttle cut
• 2 count-up/-down timers + integrated timer
• Model timer
• Range check mode
• Servo cycle w/bar graph displays
• Assignable switch/lever/functions (Ch. 5-10)

Airplane Features:

• 6 programmable mixes, plus:
• 9 factory-defined mixes
• Flaperons with differential rate
• Flap trim
• Differential ailerons
• Gyro sensitivity
• 5-point throttle & pitch curves
• Throttle delay
• Idle down

Helicopter Features:

• 6 programmable mixes, plus:
• 10 factory-defined mixes
• 8 swash plate types
• 5 flight conditions w/delay
• Throttle curve (4 curves, 5 points)
• Pitch curve (5 curves, 5 points)
• Throttle hold & delay
• Swash AFR
• Electronic swash ring

Glider Menu:

• 6 programmable mixes, plus:
• 3 factory-defined mixes
• 5 wing types
• Gyro sensitivity
• Motor menu
• 2 flight conditions

Multi-Rotor Menu:

• 6 programmable mixes, plus:
• Gyro sensitivity/mixing
• Center stick alarm

The R3008SB is a T-FHSS telemetry-capable receiver that features S.Bus and
S.Bus2 compatibility and 8 conventional ports. The receiver also features an
external battery voltage connector.

Dimensions/Weight:24.9×47.3×14.3mm/10.1g
