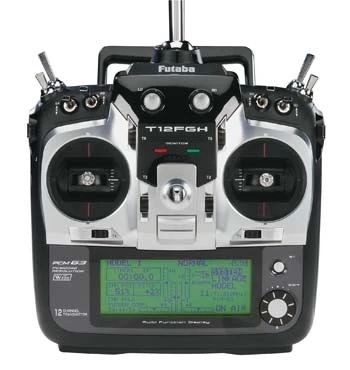

12FGH Futaba 12-Channel (M1) PCM 40MHz/ R5114DPS/ 4xS9255

This is the 40MHz Futaba 12FGH Computer Radio on Mode 1 with the R5114DPS Synthesized
14-Channel Receiver and S9255 Servo.

This is the helicopter version which will default to heli settings when powered
up and does not have a ratcheted throttle stick.

The Futaba 12FGH shares many features with the 14MZ such as Real-Time Response
with 2048PCM, Fully Synthesized Receiver that operates in either Mode A (standard
Mode) or Mode B (new Mode), Servo Grouping, Variable Dual Rates and Quad-Bearing
Gimbals.

FEATURES:

• PCM G3 2048 resolution is “backwards compatible” with 1024 PCM,
  and FM/PPM
• 10 free (user programmable) mixes
• 24 preset model types, 8 heli swash types and 16 model types for fixed wing
  aircraft
• 6 types of no tail wing (winglet) in each airplane and glider
• Supports eight flight conditions (seven plus the default)
• FLASH-ROM memory for up to thirty models
• 1882 model memory available with optional 1GB SD Card available separately,
  Six factory-set Variable Dual Rate (VDR) curves can be assigned to any function
  in any flight condition configuration
• Variable Dual Rates (VDR) and Expo can be combined so they are automatically
  activated when a function is activated, no program mixing required
• Dual Antenna Diversity (DAD)
• “Full Functionality” trainer system
• 255 x 96 LCD with adjustable contrast
• 7.2V 1700mAh NiMH transmitter battery
• R5114DPS Receiver;
• Operates in either Mode A (standard Mode) or if flying a model that generates
  a lot of RF interference or if flying in an area where interference may occur
  Mode B (new Mode) may be selected
• By using state-of-the-art Ball Grid Array (BGA) layered PC board technology,
  this 14-channel synthesized receiver is the world’s smallest. All pilots will
  appreciate how easy its
• WFSS (Wireless Frequency Setting System) makes changing frequencies at busy
  airfields. It can be done right from the transmitter without changing crystals.
  Servo Grouping;
• Multiple servos controlling a single function can be set up through the
  transmitter and then plugged into differently adjustable receiver channels
  (even non-consecutively) without needing a separate servo synchronizer for
  mixing. Each servo’s
• EPA can be adjusted individually from the transmitter-no separate servo
  synchronizer requires for mixing
• Quad-Bearing Gimbals for smoothest motion and response, stick tension and
  detent are adjustable
• Front mounted slider switches for easier access
• Seven color LED indicator

INCLUDES:

• 12FGH Synthesized Transmitter (not available separately) 40MHz Module
• 7.2V 1700mAh NiMH Transmitter Battery
• Battery Charger
• NiCd 1500mAh 4.8V Receiver Battery
• Four S9252 Servo
• R5114DPS Receiver
• Heavy Duty Switch Harness
• Woven Orange Neck Strap
• Instruction Manual

SPECS:

Transmitter:

• Operating System: 2-stick, 12 channels, PCM-G3 synthesizer system
• Modulation: PCM-G3, PCM 1024, or FM/PPM switchable

Receiver:

• Receiving Frequency: US only 72MHz bands
• Intermediate Frequency: 10.7MHz & 450kHz
• Size: 2″ x 1.5″ x .65″ (52mm x 37.5mm x 16.5mm)
• Power Requirement: 4.8V NiCd battery
• Current Drain: 75mA
• Weight: 1.16oz (33g)

Servo:

• Speed: 0.16 sec/60?X @ 4.8V
• Torque: 125 oz-in (9.0 kg-cm) @ 4.8V
• Size: 1.6 x 0.8 x 1.4″ (40 x 20 x 37mm)
• Weight: 1.9oz (55g)
