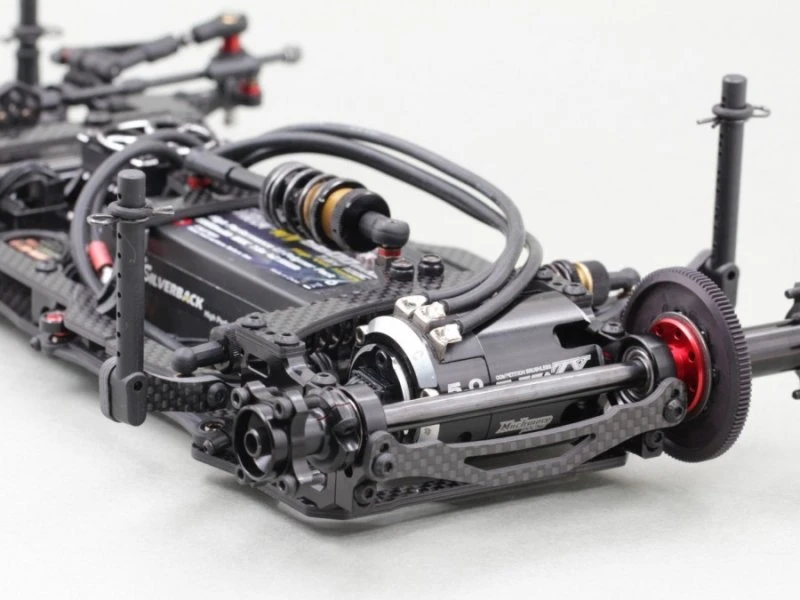

151018 ROCHE ROCHE Rapide P10W 1/10 235mm Competition Pan Car Kit

New design 2.5mm high grade graphite materials for main chassis and lower pod plate.

New design dual upper deck.

New design 7075 aluminum front lower bulkhead.

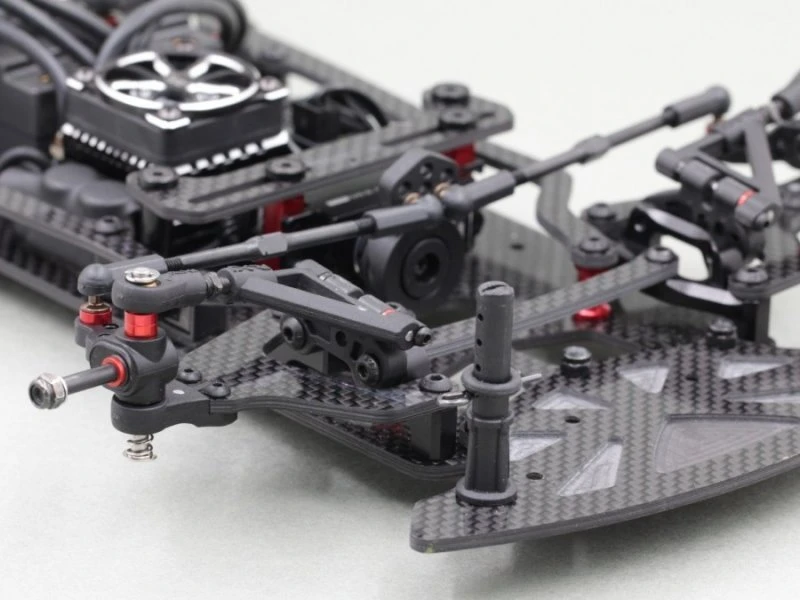

New design graphite lower arm.

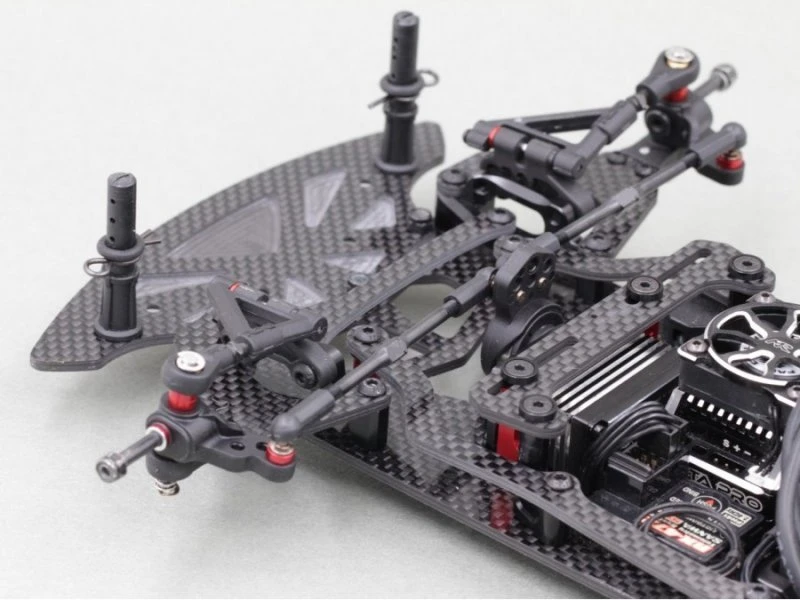

New design spring steel front axle and steering knuckle.

New graphite floating servo plate and 7075 aluminum servo mount.  Servo position fine adjustable.

New black steel steering turnbuckle (M3x57mm).

New design graphite top plate with quick change damper angle and 14 position selectable.

New DVS-V3 big bore center damper with long extension post.

New design graphite front brace and rear chassis brace.

New design 7075 aluminum long side link mount, servo mount and center pivot brace mount.

New design side link angle adjuster.

New design slide style center pivot mount.

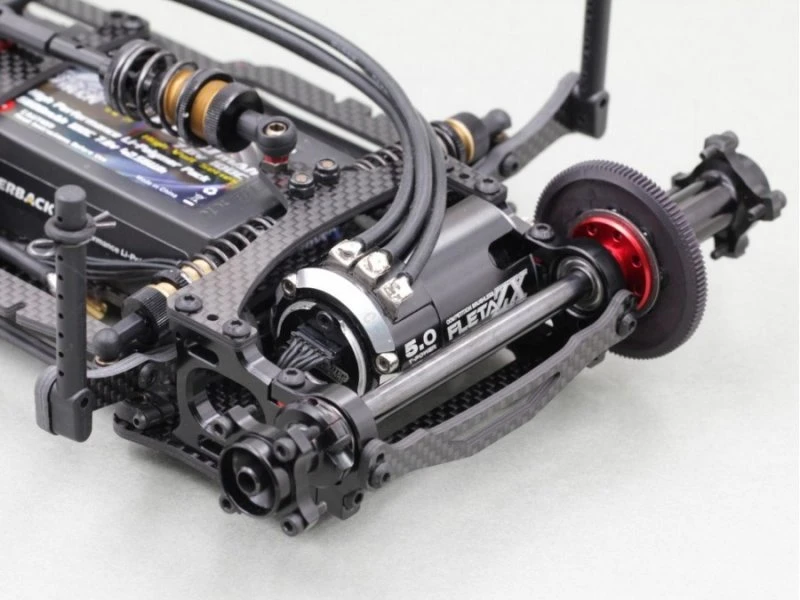

New design 7075 aluminum motor mount / rear bulkhead.

New design graphite rear pod plate.

New design 7075 aluminum axle height adjuster with oversized rear axle ball bearings.

New black anodized CARBON drive axle, differential hub and wheel hub.

New design low CG rear body mount.



Caster adjustment : 1.8/3.25/6.15 deg.

Low friction coating pivot balls and ball studs.

Polished kingpin and upper hinge pin

Spring steel upper arm turnbuckle (M3x15mm).

High grade composite front suspension plastic parts.

Low profile and mini size servo compatible.

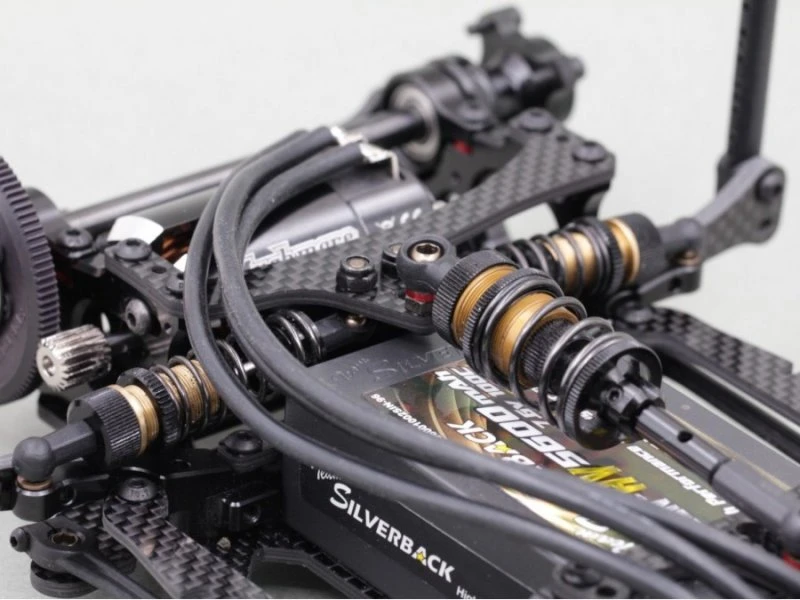

Micro side dampers rear suspension design.

Quick center damper angle and position adjustment design.

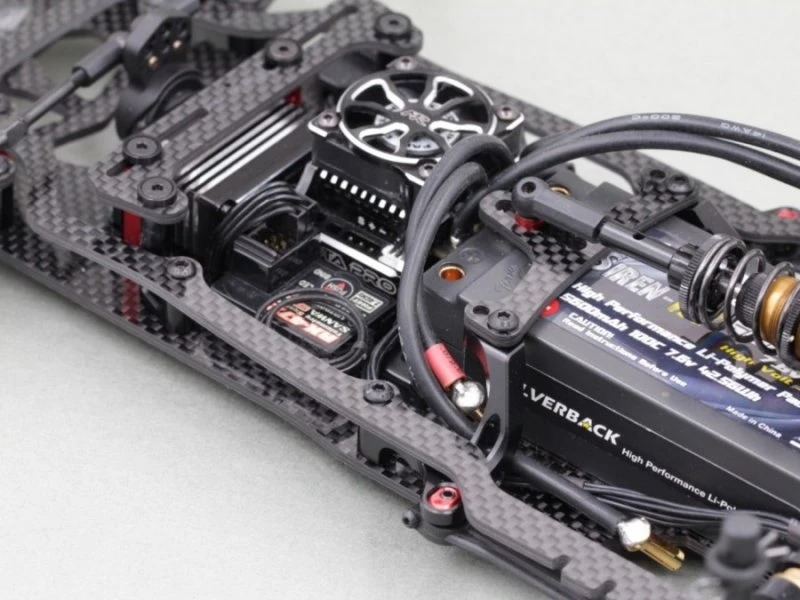

Inline alignment battery placement with forward/backward position selectable. Cross-chassis battery placement.

7075 aluminum main shaft holder, precise adjustment ride height by spacers.

Floating pod link rear suspension.

High precision ball differential and reliable Carbon main shaft.

Thrust ball bearing is included in ball differential with maximum performance.

64 pitch (16 balls) spur gear.
