20572Y Kyosho – 1/18 Zephyr Smashing Yellow Drone Racer Readyset R/S

Ultra-Low altitude. Take on a new challenge

The Storyline of the Drone Race:

Kyosho’s Drone Racer is fantastic.
A group of 3 former mischievous boys are now around forty years old and senior.
They have grown into the men they once looked up to as children, full of work
and home responsibilities. They work late; get caught up in the hustle of city
life, and maintain otherwise normal healthy lifestyles. Fast forward to the
dawn of the Saturday on which they will get together again for the first time
in ages. Preparing their Drone Racers and loading the car with other equipment
(course), and then GO!

The New Generation, Drone Racer glides above the ground.

Unlike existing drones that are difficult to control, the sensational DRONE
RACER is controlled like an R/C car with a pistol-grip transmitter. Takeoff
and auto-hover with one-touch control using ultrasonic sensors that remove the
frustration of learning complicated flying techniques. Now you can experience
the fun of drone flying at your own pace.

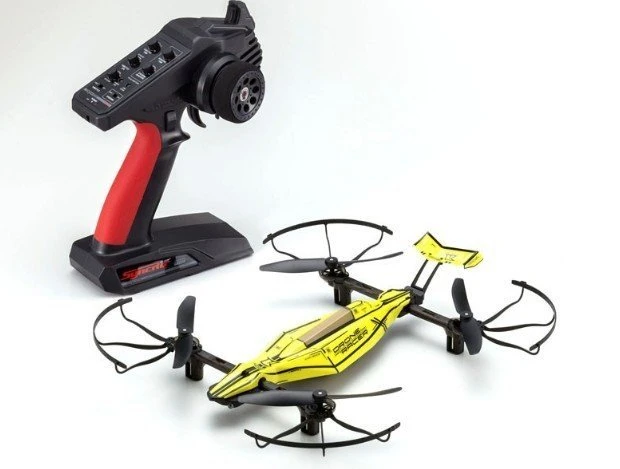

Control with a pistol-grip R/C system, The KT-231P+ Transmitter

This Readyset includes everything you need. Open the package then charge the
battery to start flying.

Includes the latest 2.4GHz Syncro KT-231P pistol-grip transmitter featuring
advanced aircraft-like instrument panel. Flying height adjustment switch is
installed on the base of the transmitter grip.

Battery : 3.7V-1000mAh Li-Po battery, Flight time /10 minutes approx.

USB Charger : Includes USB auto-cut charger. Charging time / 1-2 hours, (depending
on USB power supply output)

USB Cable : Includes USB cable to connect the drone to a personal computer.

New Technology: Dogfight only 35cm above the ground. Speeds over the ground
just like a Hoverboard. Newly developed drone technology.

The DRONE RACER is equipped with advanced ultrasonic sensors,
6-axis gyroscope (3-axis angle speed sensors, 3-axis acceleration sensors),
barometric pressure sensor and four fast response mini coreless motors.
Speed switching function provides a choice between “Easy Mode” and
“Active Mode” and
delivers direct intuitive flight control.

LOW HEIGHT FLYING CONTROL
Altitude is automatically maintained with ultrasonic and barometric pressure
sensors. Altitude setting of 35cm or 60cm can be selected with a switch on the
R/C system and one-touch control is used for takeoff, hovering and landing.
Some people may feel frustrated in learning drone flying techniques.Kyosho’s
newly developed technology*(patent pending) removes these barriers so anyone
can enjoy the fun of flying drones. *according to Kyosho research

Flies over any surface, even over water. Maintains constant altitude of 13
inches (23 inches) using ultrasonic sensors.

All Terrain: Grass/Ground/Water/Mud/Snow

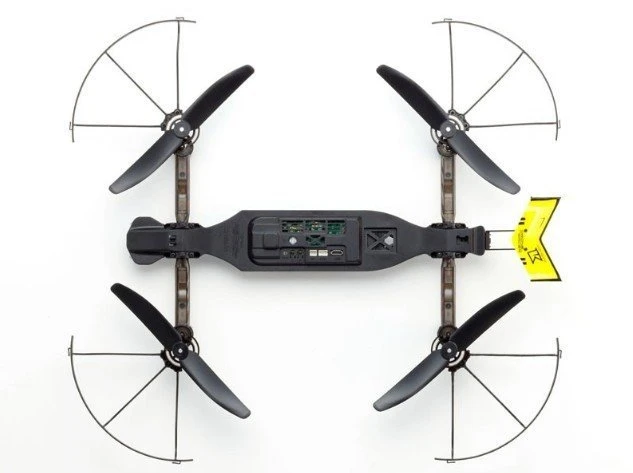

VPUS, VARIABLE PROPELLER UNIT STRUCTURE
H-type chassis with split upper and lower sections and left-right propellers
connected on one propeller arm allow the propeller unit angle to be changed
between: 0°, 10°, 20°. Use more stability (0°/ max speed : 30km/h)
or more speed (20°/ max speed : 34.5km/h) as a racing weapon.Includes Arm
holder 0°,10°,20°.

KYOSHO DRONE CONTROL MIXING SYSTEM
Optimal roll and yaw mixing match control from the steering wheel.

K-DCMS, Kyosho Drone Control Mixing System

DRONE BACKWARD CONTROL
Uses similar control movement as a car.

New Drone Safty,Kyosho DRONE RACER is not subject to the revised Japanese aviation
law. This product can be enjoyed by anyone.

The DRONE RACER is not designed for high altitude performance, but for people
to enjoy flying safely within their field of vision near the ground. A total
safety system includes: removable propeller guards; “PROPELLER AUTO STOP
SYSTEM” that activates in case you lose control of the throttle; “ANGLE
EMERGENCY AUTO STOP SYSTEM” if the drone becomes inverted, and “RADIO
CUT EMERGENCY AUTO STOP SYSTEM” in case the radio signal is lost. Weighing
only 130g, the DRONE RACER is not subject to the Japanese aviation law so you
can fly freely anywhere you like (except in restricted areas). *as at aviation
laws 10th December 2015

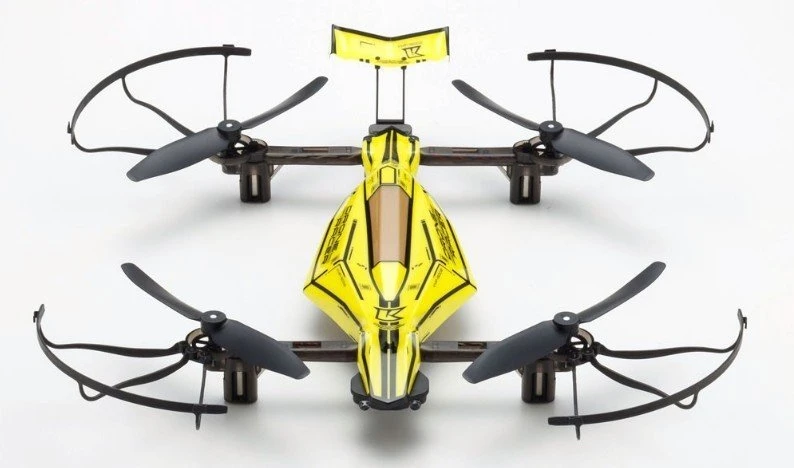

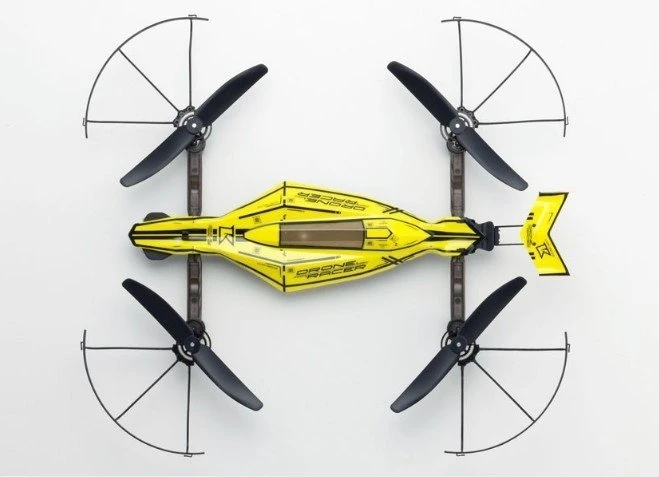

Fast, beautiful and more powerful. Sophisticated masterworks.

Model lineup features two body style designs, the G-ZERO and ZEPHYR,
which are based on a futuristic impression of car with the narrow form and
rear wings associated with formula racing cars.

Bright LEDs light up the fuselage. LEDs can be used as drone identifiers
when racing.
Full color LED installed on front propeller units allows a selection from 6
colors. You can choose your favorite luminescent color to use as an identifier
when racing.

Red : flashing indicates low battery warning, when lit indicates safety function
is released & can operate as tail lamp
Yellow : transmitter not connected = RADIO EMERGENCY STOP
Green: flashing indicates detecting horizontal, when lit indicates ready to
takeoff and safety function is activated
Blue : gyro calibration in progress

2 x LED on front and 1 x LED on rear installed
For easy front-rear identification the front mask features 2 bright white LEDs
and the tail features red LED.

Infrared LED installed in the cockpit works with a special lap counter.

Additional features include: pairing button; LED color change; calibration correction;setting
mode changing button;5V external power port; extended LED port, and micro USB
terminal.

Includes set of spare propellers (4). Do not hesitate to fully enjoy the fun
of flying!
Infinite Possibilities
DRONE RACER SETTING MANAGER

DRONE RACER can connect to your (Windows) computer with the included USB cable
to adjust flight settings. In addition, an optional cable can also be used to
connect to an Android terminal with a USB host function to adjust settings.
Download the free (DRONE RACER SETTING MANAGER) to adjust to your favorite setting
and turn up the volume of fun.

Required for Operation (Sold Separately)

• 4 x AA size batteries for transmitter
• Computer with USB port (for charging) or USB power charger (if output is
  more than 2A, full charge can be complete within one hour)

Specs:

• Length: 302mm (with guard)
• Width: 300mm (with guard)
• Height: 65mm
• Gear Ratio: 5 : 1
• Weight: 130g approx.
• Motor: 8.5mm coreless
• Battery: 3.7V-1000mAh
• Propeller: D5 x P4
• Flight Time: 10 min approx.
• Charging Time: 1-2 hours (depending on USB power output)
• 30km/h approx. (normal specification)/34.5km/h approx. (with 20° propeller
  angle setting)/38km/h approx. (when using optional parts)
• Energy density: 318Wh/L (not subjected PSE)
• Flight altitude: Low 35cm/High 60cm approx. (setting can be changed using
  software application)
