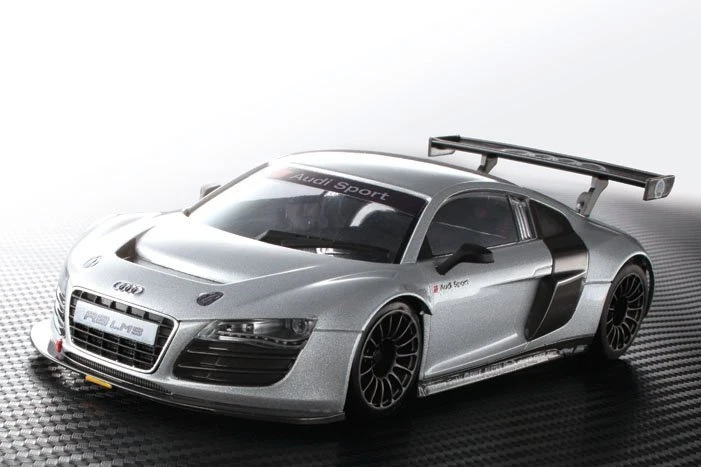

30533S Kyosho – 1/27 R/C EP Touring Car MINI-Z AWD MA-015DWS Chassis Set ASF 2.4GHz Audi R8 LMS Silver

Double wishbone suspension is great to look at, great to drive, great to drift!
Chase Mode boosts racing excitement! Compatible with (optional) gyro!

The release of this special MINI-Z AWD chassis model incorporates popular optional parts including the “Rear Double Wishbone (DWS)” as standard. In addition to the advanced double wishbone rear suspension, the chassis is mounted with a 2.4GHz one-piece RA-23T receiver-amp unit equipped with a high value optional sensor as standard and Chase Mode to charge up the racing excitement. The combination of precision control and easy operability from the 2.4GHz system allows you to enjoy high performance almost as soon as you take it out of the box. The precision structure of this micro-size AWD machine is comparable in its sophistication to 1/10 EP touring cars. The downstop mechanism, ball-connected system on the suspension shafts, and the friction damper with damping force adjusted with grease, provide a wide range of setting options. Precision geometry and link configuration realize effective mechanical grip for superior control. Compatibility with LL-size wheelbase body styles expands the driving experience even further. Optional gyro can be installed in the upper cover so throttle and steering control is automatically corrected to smooth the rough edges of driving, making it even easier for beginners to enjoy the fun of driving and drifting.

• Precision control for racing and drifting. Sophisticated structure is impressive even to look at.
• Equipped with 2.4GHz RA-23T that automatically manages frequencies. Chase Mode adds extra excitement to racing. Matched in stylish black color.
• Popular optional double wishbone suspension is pre-installed on rear. Packaged at an affordable price without transmitter, tires and wheels.
• Ball connected suspension shafts with adjustable angle improves performance over bumps. Features adjustable toe angle and includes two types of rear suspension holder.
• Features screw-in adjustable down stop and other setting options similar to 1/10 touring cars.
• Optional gyro unit can be fitted inside the cover. Detects deviation and automatically corrects throttle and steering control. Promises improved driving stability.
• Install the optional scramble flasher (sold separately) that lights up when overtaking mode can be used, flashes when it is active and goes out when not available.

＜ Chassis Set Contents ＞ Factory assembled chassis (pairing setup complete) Upper and lower chassis plates for LL wheelbase setting Rear suspension spacers for chassis height adjustment Pinion gears (15T, 17T, 19T, 21T) Spur gears , , Pinion gear tool Spare nuts Wheel wrench

＜ Required for Operation ＞ 3-channel transmitter for MINI-Z compatible with ASF 2.4GHz or Perfex KT-18 transmitter (If not using the Chase mode) AAA-size alkaline batteries x 4 or NiMH batteries x 4 for chassis. Batteries for transmitter I.C.S. USB adapter (No.82080) for using I.C.S. functions and Chase Mode adjustment. **Note: Overtake function may work with R246 2.4GHz module adapter but is not guaranteed with transmitters other than Kyosho or KO 3-channel transmitters. Also, the 2-channel KT-18 transmitter can be used without Chase Mode.

Chassis Technical data

Length	127.5（M）～135.5（LL）mm
Width	65～72mm
Height	31mm
Wheelbase	90（M）～98（LL）mm
Tread (F/R)	56.5～63.5mm／56.5～61mm
Tire(F/R)	Φ25.0×8.5 mm／Φ25.0×11 mm
Gear Ratio	7.2、 6.4、 6.0、 5.7、5.3、 5.0、4.5 : 1
Weight	140g (approx.)
Motor	130 class
