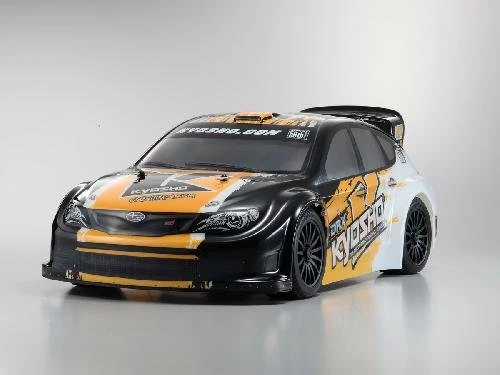

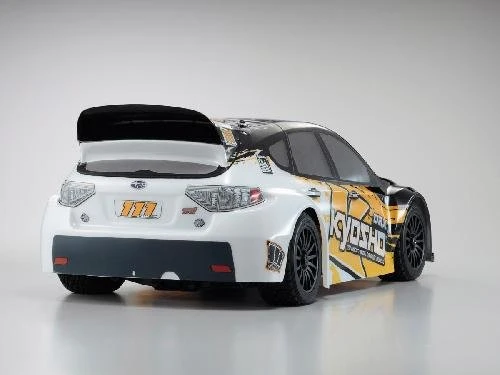

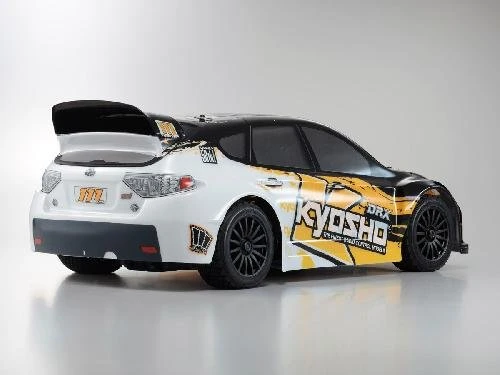

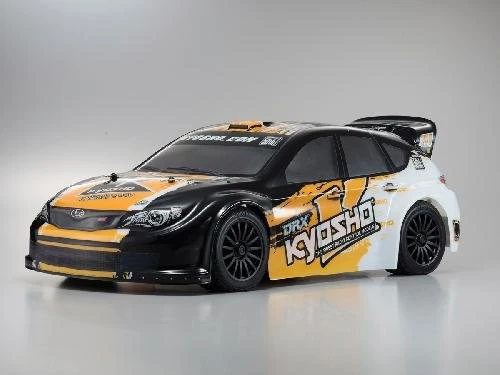

30882 Kyosho – 1/9 EP 4WD R/S DRX VE SUBARU IMPREZA Readyset

Brushless motor power delivers real rally car performance.
The limits of EP rally machine performance have changed forever!

Realistic scale long wheelbase dimensions combine with Kyosho’s proven fulltime 4WD drive train powered by an ORION KV2400 sensorless brushless motor and Vortex R10 Sports ESC equipped with a simple waterproofed structure and constant cooling fan. Incredible power and performance delivers both fingertip drift control and dynamic straight line running that leaves you waiting for the sound of squealing tires. Combined with the ultra realistic 1/9 scale body, the aggressive driving characteristics make the nearest R/C off-road course, or even tarmac, gravel or parking lot your next rally stage setting. Just about everything you need is packaged in a fully assembled Readyset, including the 2.4GHz KT-200 R/C system that automatically manages frequency band allocation and features dual-rate setting and a failsafe function (optional setting) that slows the throttle if radio signal is lost. Look no further to enjoy the best of electric rally car excitement and performance!

• Kyosho’s proven design combines a low C of G center shaft 3-differential drive system on a full-time 4WD long wheelbase chassis.
• Orion KV2400 sensorless brushless motor is secured on a one-piece diecast aluminum motor mount. Backlash can be adjusted with just two screws.
• Pre-installed Orion Vortex R10 Sports ESC with cooling fan features a simple waterproof structure and auto setup function. Compatible with 3-cell Li-Po.
• Can be used with various battery types such as 7.2V NiMH, 7.4V-11.1V Li-Po or Li-Fe (sold separately).
• Interchangeable front/rear and left/right suspension arms and interchangeable front/rear knuckles are more economical and easier for maintenance.
• Features rock guards on the knuckles that stop dirt and stones getting inside the wheels, preventing the wheels from locking up unexpectedly at crucial times under racing conditions.
• Long span suspension arms create wide tread on a double wishbone 4-wheel independent suspension system. Delivers plenty of stroke and smooth running stability.
• Features inner body structure that is dirt resistant and protects the important radio equipment while supporting the dual-purpose running performance.
• Includes 2.4GHz Syncro KT-200 transmitter featuring a failsafe function and delivers stable control and requires no management of frequency bands.

• Fully assembled Readyset. Just set the batteries to run.
• Pre-installed Syncro KT-200 R/C system automatically manages frequencies and activates as soon as the power is switched on.
• Pre-cut and finished body is complete with color scheme and decals applied.
• Large capacity oil shocks with chassis height adjustment function.
• Radio box is dirt resistant and allows easy maintenance.
• Setting options are available for chassis height, camber and tread, as well as front and rear toe angle.
• Install an optional stabilizer to take performance to an even higher level.
• One-piece battery box included keeps batteries safe and secure.
• High efficiency specifications include 18 ball bearings throughout the drive train.
• Rally pattern tires and wheels deliver superior control and compliment the scale appearance of the body with its separate clear-lens headlights and taillight.

＜ ReadySet Contents ＞ Pre-assembled chassis with pre-set control linkages Completed pre-painted body Syncro KT-200 transmitter Team Orion KV2400 sensorless brushless motor installed Team Orion Vortex R10 Sports ESC installed Hexagonal wrench 4-types (1.5, 2.0, 2.5, 5mm) Cross wrench (large)

＜ Required for operation ＞ Chassis battery / 7.2 NiMH or 7.4-11.1V (2-3cell) Li-Po battery with super plug type, or Li-Fe Battery charger AA-size alkaline batteries x 4 for transmitter

Chassis Technical Data

Length	563mm
Width	260mm
Height	187mm
Wheelbase	316mm
Tread (F/R)	215mm/215mm
Tire(F/R)	Φ93×38mm / Φ93×38mm
Gear Ratio	8.86：1
Weight	2,600g approx.
Motor	Team Orion R10 EVO. Motor KV2400 sensorless brushless motor installed
Battery	7.2V NiMH, 7.4-11.1V Li-Po or Li-Fe (sold separately)
ESC	Vortex R10 Sports
