30914T1 Kyosho – 1/10 EP FAZER VE-X 2007 Subaru Impreza KX2 Readyset

Newly designed brushless motor powered rally car!

A great rally car to bash around the neighborhood delivering the best performance vs cost around!! Shaft driven 4WD can handle just about any type of rough terrain with ease. Features a waterproof speed controller, brushless motor and servo as standard. In addition the package includes both grip and drift tires for twice the fun in all kinds of terrains or locations. The bathtub chassis is equipped with heavy-duty suspension, slipper clutch and metal diff gears. Team Orion speed controller and brushless motor combined with the high durability drive train can take plenty of punishment from hard driving. A true fun rally car for off / on-road bashing or even drifting.

• Low center for gravity design realizes superior maneuverability.
• Sealed receiver box protects receiver from dust and dirt.
• High response & high torque waterproof KS204WP servo pre-installed.
• Includes high grip rally block tires and an extra set of drift tires! Twice the fun factor!! Photograph is a silver color.
• Includes waterproof Team Orion R10 ONE speed controller. (MAX 25A)
• Includes waterproof Team Orion NEON ONE brushless motor. (KV-2400)
• Stylish FHSS 2.4GHz R/C system featuring dual rate function is pre-installed. Also features 4-channel receiver, providing scope for future development.

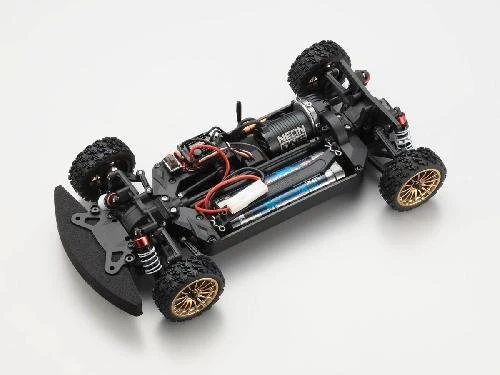

• Fully Assembled Chassis

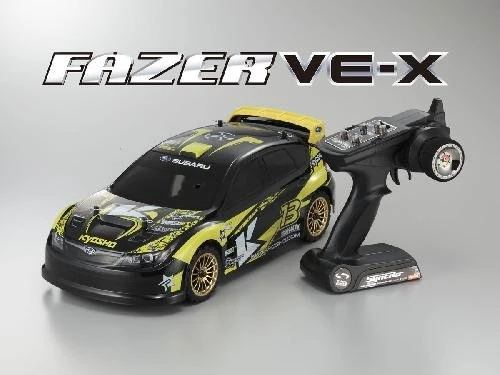

• SYNCRO KT-200 2ch Radio System Installed.

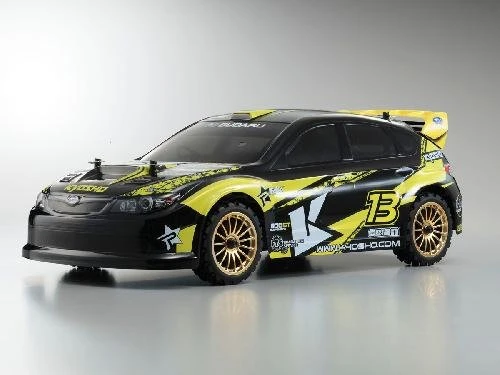

• Pre-painted assembled body with decals applied.
• Sealed differential and transmission delivers the reliability for rough road racing performance.
• Fixed length suspension arms eliminate the need for camber, caster and toe-in (front) adjustment.

＜ ReadySet Contents ＞ Factory assembled chassis with pre-installed R/C unit Pre-painted assembled body with decals applied (with large wing) Syncro KT-200 transmitter Hex wrench (1.5mm) Cross wrench

＜ Required for Operation ＞ 4 x AA sized alkaline batteries for transmitter 7.2V-Ni-MH battery or 7.4V Lithium Polymer (Lipo) battery AC Charger

Chassis Technical Data

Length	383mm
Width	200mm
Height	80mm
Wheelbase	260mm
Tread (F/R)	174mm / 174mm
Tire(F/R)	Φ68.5mm × 26mm / Φ68.5mm × 26mm
Gear Ratio	6.34：1
Weight	1,700g (approx.)
Motor	Orion NEON ONE brushless motor. (KV-2400)
R/C System	Synclo KT-200
