30919T2 Kyosho – PUT FAZER VE LANCER VEX EVO. RED

Newly designed brushless motor powered rally car!

A great rally car to bash around the neighborhood delivering the best performance vs cost around!! Shaft driven 4WD can handle just about any type of rough terrain with ease. Features a waterproof speed controller, brushless motor and servo as standard. In addition the package includes both grip and drift tires for twice the fun in all kinds of terrains or locations. The bathtub chassis is equipped with heavy-duty suspension, metal diff gears. Team Orion speed controller and brushless motor combined with the high durability drive train can take plenty of punishment from hard driving. A true fun rally car for off / on-road bashing or even drifting.

• Low center for gravity design realizes superior maneuverability.
• Sealed receiver box protects receiver from dust and dirt.
• High response & high torque waterproof KS204WP servo pre-installed.

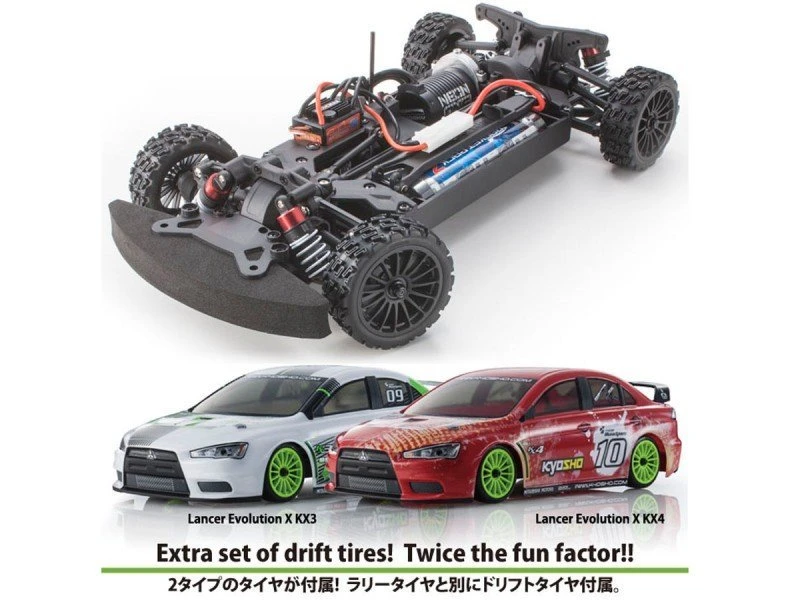

• Extra set of drift tires! Twice the fun factor!!
• Includes waterproof Team Orion R10 ONE speed controller. (MAX 35A)
• Includes waterproof Team Orion NEON ONE brushless motor. (KV-2400)
• Stylish 2.4GHz R/C system featuring dual rate function is pre-installed. Also features 4-channel receiver, providing scope for future development.
• Includes Team ORION 7.2V Ni-MH battery and Charger can charge from AC power.
• Decorative parts are included to enjoy Rally Car or Touring car specification.

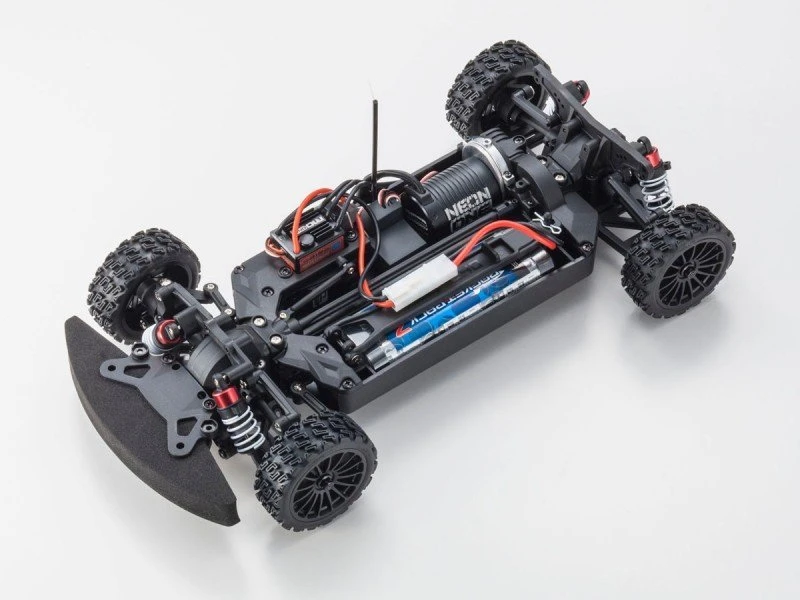

• Fully Assembled Chassis

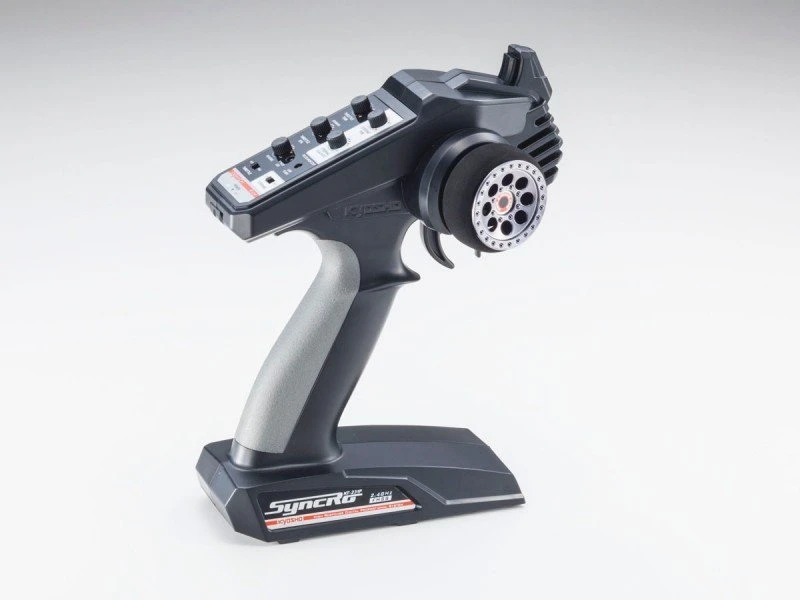

• SYNCRO KT-231P 2ch Radio System Installed.
• Pre-painted assembled body with decals applied.
• Sealed differential and transmission delivers the reliability for rough road racing performance.
• Fixed length suspension arms eliminate the need for camber, caster and toe-in (front) adjustment.

＜ ReadySet Contents ＞ Factory assembled chassis with pre-installed R/C unit Pre-painted assembled body with decals applied (with large wing) Syncro KT-231P transmitter 7.2V 1800mAh Ni-MH battery AC Charger Hex wrench (1.5mm) Cross wrench

＜ Required for Operation ＞ 4 x AA sized alkaline batteries for transmitter

Chassis Technical Data

Length	383mm
Width	200mm
Height	80mm
Wheelbase	260mm
Tread (F/R)	174mm / 174mm
Tire(F/R)	Φ68.5mm × 26mm / Φ68.5mm × 26mm
Gear Ratio	6.34：1
Weight	1,700g (approx.)
Motor	Orion NEON ONE brushless motor. (KV-2400)
R/C System	Synclo KT-231P
