30924 Kyosho – 1/12 EP 2WD PLAZMA LM MAZDA 787 KIT

Amazing new PLAZMA combines stunning detail with dynamic performance!

The potential of the PLAZMA Ra has been unleashed at electric racing events around the world and developed a reputation as a trend leader in 1/12 electric racing machines. Now a new star has risen with the PLAZMA Lm that incorporates the racing DNA of the PLAZMA Ra with the stunning detail and scale parts of MINI-Z class models. To deliver on the concept of a scale model with high-level performance, rubber tires have been replaced with sponge tires while maintaining the highly detailed scale form in a kit packed with racing features. From racing circuits to parking lots, the power of the PLAZMA Lm is on display.

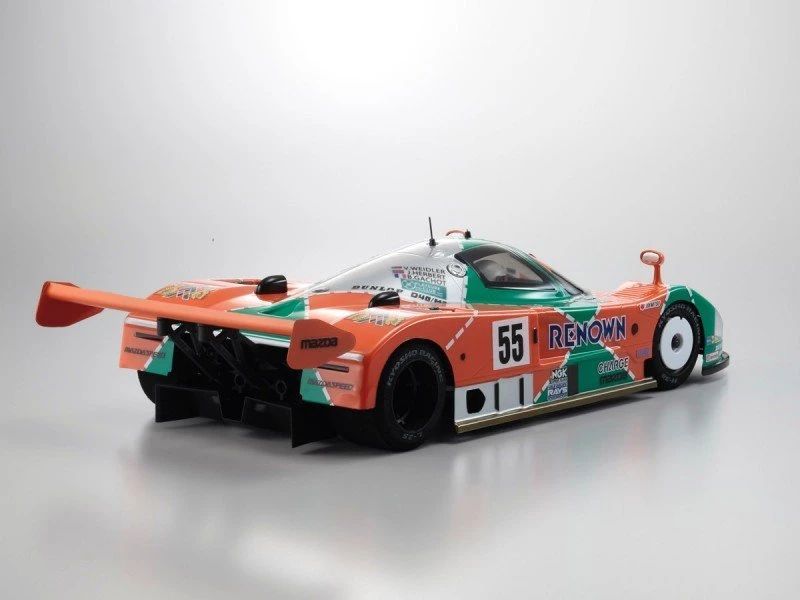

• MAZDA 787B No.55 LM 1991 scale body includes bolt-on front/rear LED light base, door mirrors, wipers, and antenna and dummy duct intake parts.
• Includes two bodies. Plain body for you to paint as you like and a printed semi-completed body that takes only a short time to finish. Simply apply sponsor logos and install decorative scale parts.
• Features the same king pin & coil spring-type suspension on front as the PLAZMA Ra. Natural FRP T-Bar governs the rear with pitching and side roll damper that requires minimal adjustment and maintains the settings for a long period.
• Pitching is regulated through a center shock with a fixed volume diaphragm + roll is controlled via a friction tube. (Kyosho logo lazer etched)
• Main parts such as aluminum motor mount are lightweight and anodized in KYOSHO’s signature red color.
• Equipped with large plastic diffuser for improved rear traction. Can be removed with three screws when not used.
• Drive shafts fully equipped with ball bearings. (total 9)
• Brush-type G20 motor installed.

• Rear ride height can be adjusted to 5 levels with 1mm spacers on the rear axle.
• 10. Radio compartment is large enough to comfortably fit standard size servo, ESC and receiver. (Mini-servo from Ra can also be installed).
• Smooth ball diff from the PLAZMA Ra is included as standard.
• Features pre-glued sponge tires that deliver strong grip on all surfaces. KYOSHO RACING and degree of hardness are printed on sides of tires. 【H-38】 H indicates H rubber (material) and 38 is degree of hardness.【L-25】 L indicates L rubber (material) and 25 is degree of hardness.

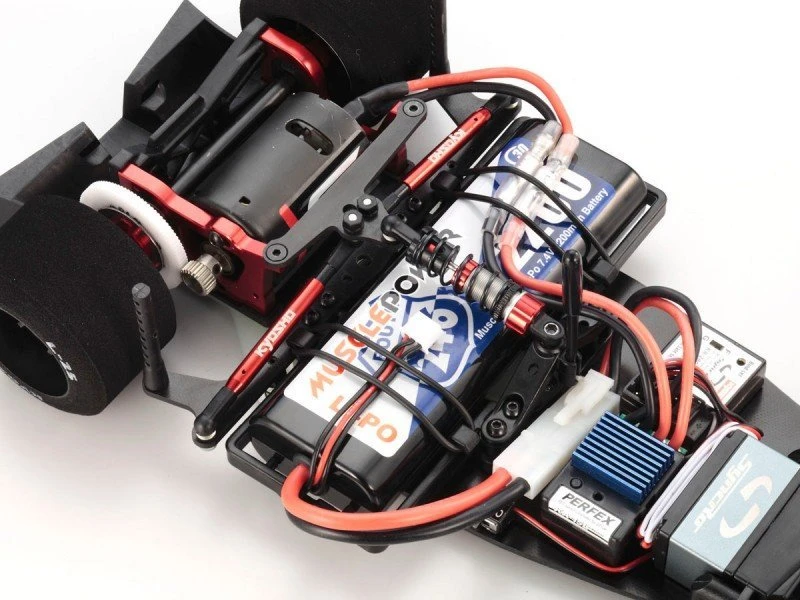

Unrestricted battery choice with a multi design

PLAZMA Lm does not restrict the type of battery to be used. Two battery holders included can suit most NiMH, Li-Po and Li-Fe batteries available on the market. From slightly older and larger 7.4V Li-Po’s to the latest ORION TS and RC PLANNING R246 Muscle Power series batteries or short size and 1-cell size Li-Po batteries used in 1/12 racing, nearly all batteries for 1/12 and 1/10 models can be installed.

＜ Kit Contents ＞ Unassembled chassis kit Decals Instruction manual

＜ Required for Operation ＞ 2-channel, 1- servo and ESC Brushed Type (see ESC specs for battery compatibility) Li-Po battery Battery charger for chassis battery Tools Batteries for R/C system

Chassis Technical Data

Length	410mm
Width	172mm
Wheelbase	233mm
Tire(F/R)	56.0×36.5mm/54.0×36.5mm
Gear Ratio	1:3.875 (24T/93T)
Weight	900g approx.
Motor	G20 motor
