30987 Kyosho – 1/12 EP RS RP BLIZZARD SRW/WIFI I-RX

Watch the action on screen while controlling the model through your smartphone
or tablet PC.

Belt tracked vehicle equipped with iReceiver and camera sends real time images
to a smartphone or tablet PC over wireless LAN as it powers relentlessly through
snow or wastelands. This creates the sense that you are actually onboard and
controlling the model. A newly developed unit that replaces the traditional
R/C system provides full control and transmits high quality video to the smartphone
or tablet PC and marks a new era in wireless model control. The 140+ degree
wide-angle lens provides the extensive range of sight needed for effective driving
control. In addition, blur and distortion are minimized from the periphery to
deliver clear resolution to all parts of the screen. Lens design provides excellent
depth of vision and aperture control so you can plot your course around distant
objects that are clearly visible. Control is as smooth and natural as any R/C
model. Download the special app to your smartphone (iPhone, iPad or Android
device) or tablet PC to enjoy the stunning performance of this model using the
control sticks on your screen. Video can be transmitted in real time with simple
start/stop function and still shot photography easily controlled from your smartphone.
Experience the future of model control with wireless LAN creating the sensation
of being onboard and in the driver’s seat!

120+ degree wide-angle lens provides clear visibility of surrounding environment
for a realistic onboard control experience.

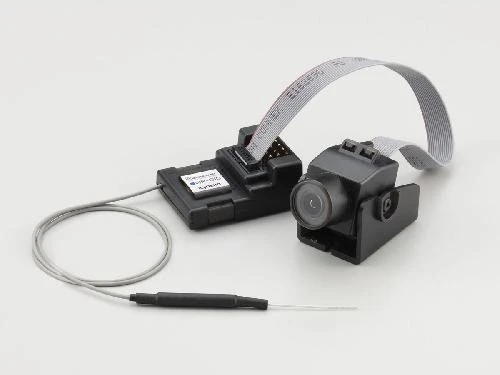

iReceiver provides complete and free control of the Blizzard. Control everything
from video transmission to motor and servo (shovel up/down).

High-resolution image quality produces realistic video and recording. Creates
the sense of being onboard the model.

Runs with the unrelenting power of a belt tracked vehicle through snow, sand
and off road over riverbanks. Take full control of forward/reverse, left/right
and pivot turning.

Download the special app from the Kyosho website. Control the model from the
screen of your smartphone or tablet PC.

Suspension on each wheel combines with continuous track to run over uneven
surfaces without difficulty. Can be enjoyed under a wide range of conditions.

• iReceiver + onboard camera installed.
• Factory assembled Blizzard is controlled over wireless LAN.
• Includes mount with adjustable camera angle.
• Excellent low light image capture takes clear video in dimly lit conditions.
• Auto white balance function produces natural color shades.
• Automatic aperture produces optimal exposure from bright to dark scenes.
• Video start/stop is controlled from your smartphone.
• Pan focus feature provides video preview to avoid out-of-focus shots.
• Records video and still image data to your smartphone or tablet PC.
• Unique design features combination bevel gear & brake control system.
  Provides free control of gradual left/right turning and pivot turning.
• Features suspension mechanism on each wheel.
• Equipped with 3-forward, 1-reverse rotary speed controller.
• Includes 540-class high power motor.

＜ ReadySet Contents ＞

Factory assembled chassis
Chassis with iReceiver & camera installed

＜ Required for Operation ＞

Smartphone with wireless LAN compatible with OS or tablet PC
7.2V-1400-3000mAh battery
Battery charger
Special application download

Technical Data

• Length: 365mm
• Width: 320mm
• Height: 220mm
• Ground Clearance: 22mm
• Gear Ratio: 25.5:1
• Weight: 1650g (approx.)
• Motor: 2 x 550 class installed
• Weight: 9g approx.
• Image resolution: 640×480pixel
• Frame number: 25-30fps
• Focus: fixed
• Exposure: auto
• White balance: auto
• Power supply voltage: supplied through cable connected to iReceiver
• Connection: special cable & connector
• Compatible Device 1
  iOS7: iPhone 4S & 5/5C/5S, iPad (Retina display)/iPad mini
• Compatible Device 2
  Android 4.0 (Recommendation 4.2.2) (1.2GH quad core minimum) / Screen Size:4.5～7inch
