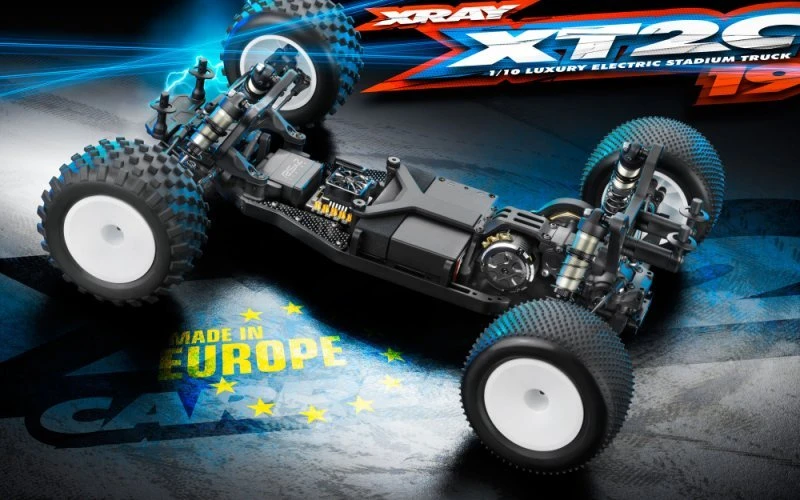

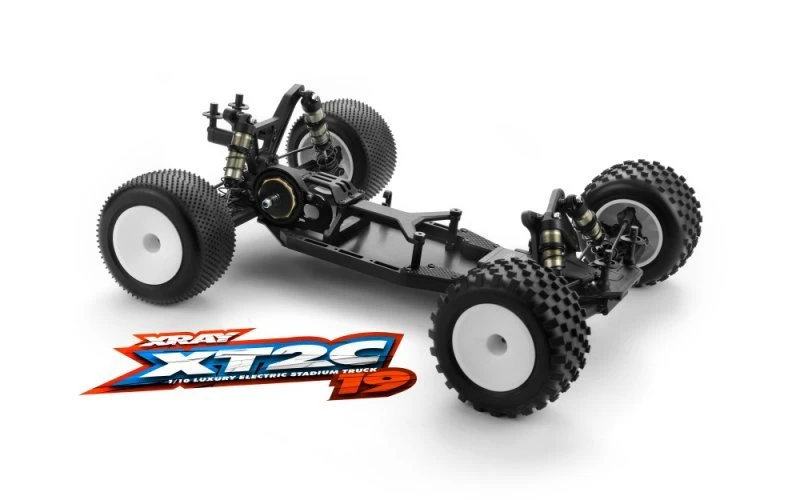

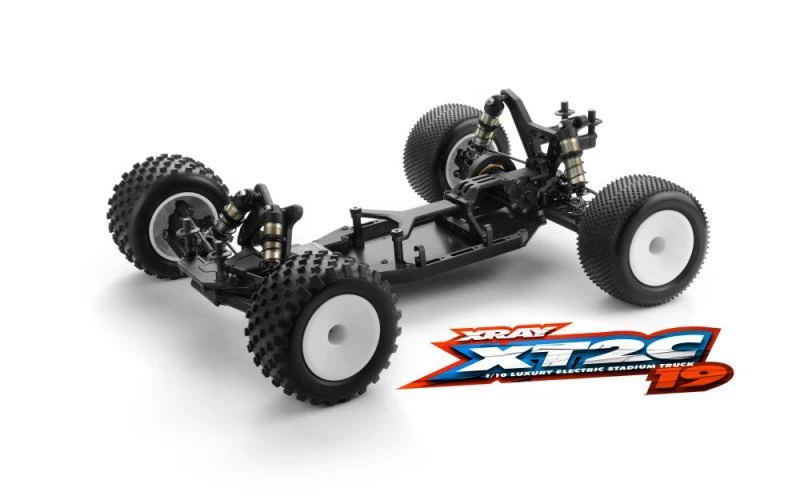

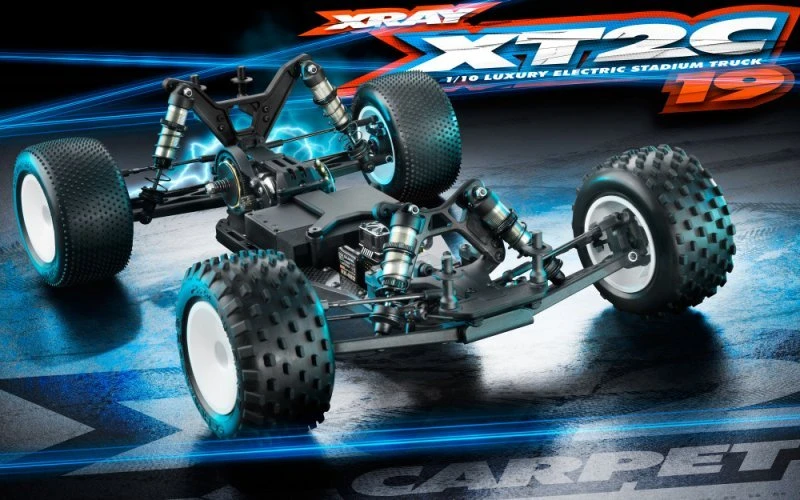

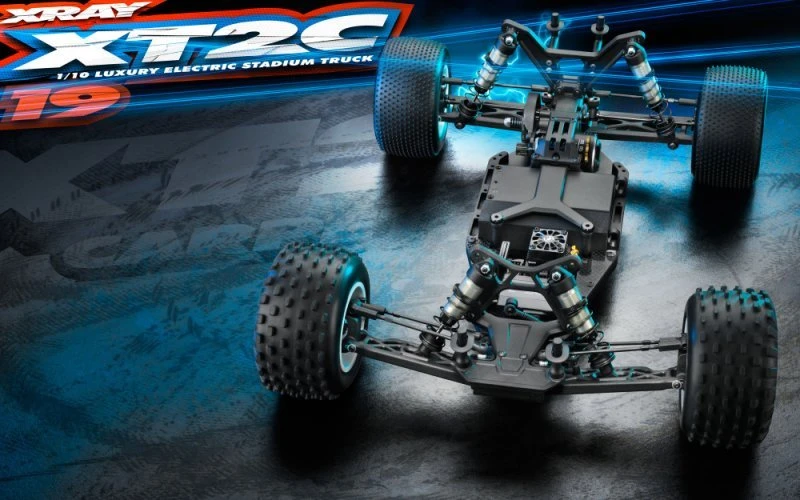

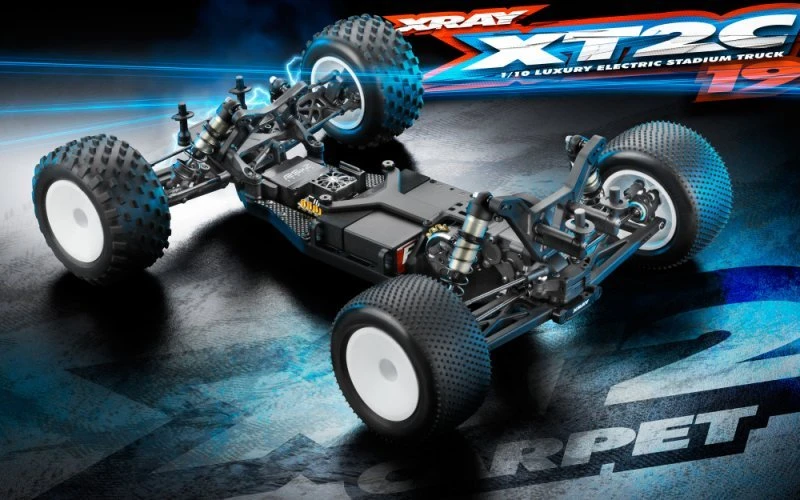

320202 XRAY – Xray T2C 2019 – 2WD 1/10 Electric Stadium Truck – Carpet Edition

XRAY XT2
1/10 LUXURY STADIUM TRUCK 2WD



2018 All-new

• Recent EOS Champion and USA Champion platform
• All-in-one concept  includes specific parts to build the XT2 for particular track conditions on either Carpet or Dirt:

– Both types of gearboxes and motor plates allowing positioning of the motor in lower position (Carpet) or upper position (Dirt)

– Gear differential (Carpet) and ball differential (Dirt)

– Two different hardness of suspension arms: medium (Dirt), hard (Carpet)

– Two different rear shock towers: composite (Carpet), graphite (Dirt)

– Both types of composite battery straps to fit two different gear boxes

– Both types of composite mounts for upper brace to fit two different gear boxes

– Composite gear cover to protect the gear box from dirt

• New shorter front composite chassis front brace allows mounting of new graphite side guard brace to adjust front chassis flex
• New graphite chassis side guard brace for increased stability and performance
• New secure steering linkage mounting increases reliability of the steering assembly
• New shock absorber lower shims give more precise shock shaft movement
• New shock absorber O-rings for better sealing and shock performance
• New suspension pin washers prevent the suspension pins from coming out, increasing reliability



General

• Recent EOS Champion and USA Champion platform
• All-in-one concept  includes specific parts to build the XT2 for particular track conditions on either Carpet or Dirt:
• Both types of gearboxes and motor plates allowing positioning of the motor in lower position (Carpet Edition) or upper position (Dirt Edition)
• Gear differential (Carpet Edition) and ball differential (Dirt Edition) included
• Based on the ultra-successful XB2 platform
• Full compatibility and interchangeable parts
• Designed for highest performance at all levels of racing
• Engineered with attention to smallest details
• Manufactured with legendary artistic craftsmanship from premium European materials
• EFRA, ROAR, FEMCA spec compliant
• Super easy to build, set up, maintain, and drive
• Developed, designed, and styled by European Champion Martin Bayer and Dipl. Eng. Juraj Hudy, manufactured exclusively by XRAY in Europe in the world’s most sophisticated RC manufacturing facility
• Setting the new benchmark for premium quality, reliability and performance
• Premium XRAY service & support

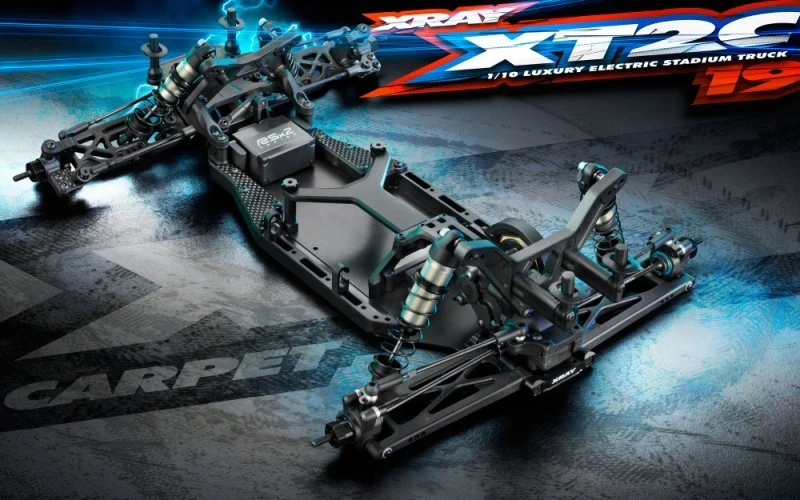

Chassis

• Optimal chassis weight distribution & balance
• Both types of gearboxes and motor plates allowing positioning of the motor in lower position (Carpet Edition) or upper position (Dirt Edition)Unique XRAY Multi-Flex™ technology for easy chassis flex adjustment
• Swiss 7075 T6 hardcoated 2.0mm aluminum chassis: lightweight, strong, rigid
• Electronics layout allows for moving the batteries frontwards/rearwards, as well as using standard or mid-size servos and either using saddle pack or short pack batteries
• Composite side guards are an integral part of the XT2 Multi-Flex™ system
• Shorter front composite chassis front brace allows mounting of new graphite side guard brace to adjust front chassis flex
• Custom-designed front lower chassis brace, available in medium and hard hardness for specific track conditions
• Front protection bumper
• Custom-designed upper deck, available in medium and hard hardness for specific track conditions
• Swiss 7075 T6 aluminum motor plate
• Both types of composite battery straps to fit two different gear boxes with foam spacer
• Lightweight, strong composite shock towers with multiple shock mounting positions (Carpet Edition) & graphite rear shock tower (Dirt Edition)
• Pre-drilled centerline holes for easy balancing with the HUDY Chassis Balancing Tool #107880



Drivetrain & Differentials:

• Conventional gear-driven 2WD off-road stadium truck
• Unique gear box, Gear Box and Motor Plate with lowered top shaft, forward-shifted motor for improved steering and handling on higher-traction surfaces
• Included rear gear differential with adjustable oil viscosity, 53T gear & internal satellite gears (Carpet Edition)
• Included externally-adjustable ball differential, 53T gear & axial bearings (Dirt Edition)36T (Carpet Edition) & 25T (Dirt Edition) graphite composite idler gears
• 20T super-lightweight Swiss 7075 T6 hardcoated aluminum top shaft
• Robust slip-adjustable clutch with 81T main spur gear molded from exclusive secret blend of composite material
• 3-pad slipper clutch with ultra-efficient SLS material for more efficient & precise slip adjustment, and HUDY Spring Steel™ hardened outdrives for extra lifespan and reliability
• Constant velocity drives (CVD) are manufactured from special HUDY Spring Steel™ for reduced weight and increased durability
• Ultra-lightweight 12mm wheel hex drive hubs CNC-machined from Swiss 7075 T6 and additionally black-coated have ultra-true hex clamping design which ensures solid mounting of the wheel
• Full set of 22 high-speed, blue-sealed ball-bearings are used throughout the drivetrain to ensure maximum efficiency, degreased and oiled with AeroShell® Fluid 12 for maximum smoothness and long life



Suspension

• Integrated Suspension Settings (I.S.S.) for quick & easy suspension geometry setting using eccentric bushings inserted into Swiss 7075 T6 aluminum suspension holders
• Specially-designed suspension components manufactured from carefully formulated custom composite mixtures to ensure proper flex and durability
• Race-perfected suspension geometry for superior performance and versatility in all racing conditions.
• Suspension arms are available in medium, hard and graphite hardness for specific track conditions
• Suspension parts: steering blocks, caster blocks and uprights are available in medium and hard hardness for specific track conditions
• Lower composite arm mount with integrated 26° kick-up angle; optional aluminum and brass arm mounts available
• Lightweight, rigid caster blocks can achieve different overall caster angles using included caster bushings
• Tiny yet tough steering blocks comprised of composite steering blocks + graphite Ackermann extensions
• Adjustable weight balance & wheelbase via included shims on outer suspension pins
• Compact rear uprights with 0° toe and 6 different upper roll center positions
• HUDY Spring Steel™ material for turnbuckles (featuring a tougher core) is used for front & rear upright linkages, and steering system.
• Front anti-roll bar manufactured from special spring steel material to stabilize the car at front is mounted to the front body mount & can be easily adjusted via linkages; laser-engraved markings for easy identification, available in different sizes for fine-tuning
• Optionally available rear anti-roll bar set to stabilize the rear of the car; easily adjusted via linkages; laser-engraved markings for easy identification, available in different sizes for fine-tuning
• Suspension pin washers prevent the suspension pins from coming out, increasing reliability



Steering

• Simple yet effective dual-arm steering system
• Secure steering linkage mounting increases reliability of the steering assembly
• Fully bearing-equipped with 8 high-speed ball-bearings for very precise steering
• Easily-adjustable Ackermann by quickly changing the steering link mounting positions on the steering plate
• Bump steer adjustment for more aggression
• Ackermann adjustment via included shims or using various graphite extension plates on steering blocks



Shocks

• Consistent, reliable, membrane-free shocks with bleed-screw shock cap design feature up-stop & downstop adjustment via shims (under shock collar, and under pistons, respectively)
• Swiss 7075 T6 aluminum shock bodies, lower nut & bleeder shock caps
• Super-precise molded Delrin™ pistons are offered with 2-hole & different diameters (1.6mm & 1.7mm) for precise shock adjustment, for custom adjustment, a set of blank pistons (no holes) are also included
• Shock rods are machined from a special steel material, precision hand-ground for maximum smooth operation and additionally hardened for increased lifespan
• Premium shock springs designed specifically to complement the XT2 shocks; manually measured, selected and matched into pairs to guarantee equal length and damping characteristics; laser engraved for easy identification
• Full line of linear -or- progressive shock springs available
• Premium silicone oils laboratory tested and calibrated to ensure highest possible consistency and quality



Body, Wings, Wheels:

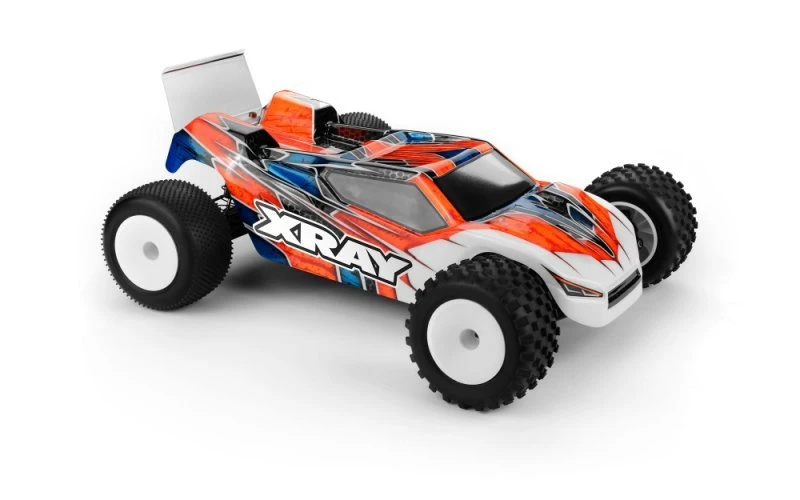

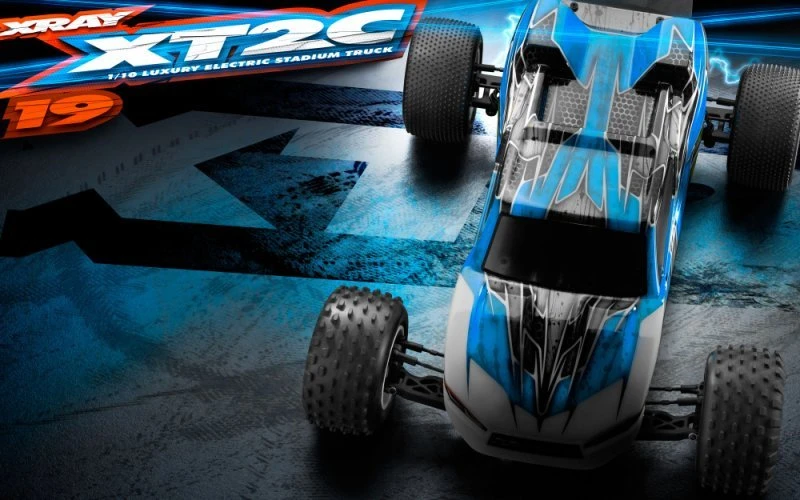

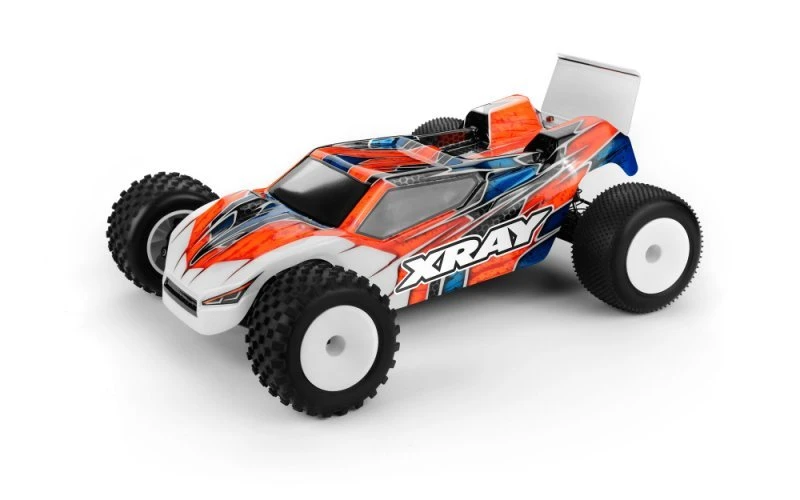

• High-downforce, low-profile aerodynamic Lexan™ body designed to perfectly fit the XT2, features high-downforce areas (including front window and top roof flow channels) for proper air flow, and side downforce areas for higher stability.
• Tough composite side guards feature double-sided Velcro™ tape to seal the body perfectly to the chassis and seal against dirt.
• Effective rear wing was designed to work perfectly with the XRAY XT2 body. Made from strong Lexan™ material, the wing is supported on the wing mounts by extra flat shims to better support and extend the life of the wing.
• Specially designed 12mm hex hub wheels for high-competition racing; featuring reinforcement ribs to eliminate deformation and molded from very flexible material to retain shape even after impacts (available as option only)



Assembly, Set-up & Support:

• Premium 3D full-color Instruction Manual & supplementary sheets
• To fully understand the set-up possibilities we recommend the legendary HUDY Set-up Book which is loaded with over 40 pages of high-quality pictures and easy-to-read RC car set-up explanations
• Exclusive Virtual Online Setup Sheet database with thousands of set-up sheets for race tracks around the world
• Premium, unmatched XRAY online support

Adjustment Possibilities:

• Fully-adjustable front and rear suspension geometry: caster, camber, rear toe, kick-up, anti-squat, ride height, downstops, track-width, roll center, wheelbase, Multi-Flex™
• Adjustable rear differential action
• Adjustable slipper clutch
• Adjustable HUDY Sprint Steel™ turnbuckles (steering, front & rear upper links)
• Multiple upper & lower shock mounting locations at front & rear
• Adjustable Ackermann and bumpsteer
• Adjustable front anti-roll bar
• Optional adjustable rear anti-roll bar
• Chassis pre-drilled holes for weight balance adjustment



Dimensions
Class:	1/10 electric 2WD off-road stadium truck
Width:	Adjustable 313-319mm
Length:	319mm (420 with wing)
Wheelbase:	Adjustable  289-294mm
Weight:	920g
Ready-to-run weight:	1900g
Chassis
Chassis:	CNC-machined Swiss 7075 T6 aluminum 2mm
Front upper deck:	Hard composite
Suspension
Suspension:	Adjustable suspension via Integrated Suspension System I.S.S.
Rear suspension:	Lower arm with adjustable upper camber link
Front suspension:	Lower arm with adjustable upper camber link and with adjustable caster 0°, 2.5° and 5°
Rear upright:	Composite 0° toe-in with dual arm mounting and 7 roll center positions
Shocks:	Membrane free shock absorbers with Delrin pistons
Shock towers:	Composite front and rear shock towers include multiple shock positions (Carpet Edition) & Graphite rear shock tower (Dirt Edition)
Drivetrain
Type:	2WD
Primary:	Pinion / spur
Drive shafts:	HUDY Spring Steel™ CVD drive shafts
Differential:	Sealed gear differential, 6 gear, silicone-filled (Carpet Edition) Hard coated ball differential (Dirt Edition)
Slipper clutch:	Adjustable 3-Pad
Bearings:	Rubber-sealed high-speed bearings
Gearing
Primary ratio:	1:2.65
Gear Box gear:	36T (Carpet Edition) & 25T (Dirt Edition)
Differential pulley:	53T
Spur gear:	81T (75T, 78T, 84T & 87T option)
Motor pinion:	Not included
Geometry
Camber:	Adjustable front + rear
Front Caster:	26° static + caster in caster block = 26°, 28.5°, 31° total caster range
Toe-in:	Adjustable front + rear
Downstops:	Adjustable front + rear
Front kick-up:	Adjustable 26°~31°
Rear anti-squat:	Adjustable 0°~4°
Anti-roll bars:	Front – 1.4mm (1.2mm, 1.6mm & 1.8mm option only) Rear – 1.0mm to 2.0mm  (option only)
Ackermann:	Adjustable
Bump steer:	Adjustable
Steering:	Centrally-positioned dual steering system
Body, Tires, Wheels & Misc
Body:	XRAY XT2 body
Tires:	Not included
Wheels:	Not included – XRAY Aerodisk 12mm Wheel hex hub (option only)
Adjustment Possibilities
Standard adjustment:	Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer
Instructions:	Full-color manual with 3D graphics (40 pages)
Set-up book:	Not included. HUDY 2-color off-road set-up book (40 pages) can be downloaded in the Download section and it shows 1/8 off-road models in photographs contained within it. However, the methodology and set-up theory are the same for all modern 1/10 off-road cars.
Packaging:	Carton box with vinyl bags with parts
Additionally included	HUDY Graphite Grease, Silicone Oils, Authentication Certificate, Parts list & Exploded view, Decals
Items Not Included
Radio system (transmitter and receiver), steering servo, motor, pinion gear, LiPo battery packs, speed controller, charger, wheels, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal tool for all nuts and turnbuckles and other tools
