32083JT Kyosho – MB-010S LAZER ZX6 Jared Tebo R/S Readyset EP 4WD Racing Buggy MINI-Z Buggy Sports

Sports version makes a perfect first R/C car,
or even a second!

Released in November 2011, the MINI-Z buggy features a 4WD drive train supported
by a 4-wheel independent double-wishbone suspension with oil shocks and a slipper
clutch to protect the gears in a technologically advanced design that far exceeds
any expectations of its palm top size. With a formidable reputation for performance
established through the MINI-Z Cup Buggy class, this ‘Sports’ version
of the proven MINI-Z buggy is equipped with the basic components of MINI-Z buggy’s
success, but at a great low price. Precision components are protected within
the shell structure of the chassis that keeps out dirt and provides optimal
rigidity. The 7-stage geared steering servo provides torque and precise response
to deliver the MINI-Z’s renowned linear steering feel and control. Also,
the Sports version is equipped with a specially designed split circuit board
that allows easy manual adjustment of the optional gyro unit. Just add batteries
to start enjoying the serious R/C racing buggy performance of this factory assembled
Readyset that makes an ideal first or even your second R/C car!

• Shaft driven 4WD and 4-wheel independent suspension are condensed in the
  MINI-Z’s compact size. The chassis powers easily over small bumps and
  gaps.

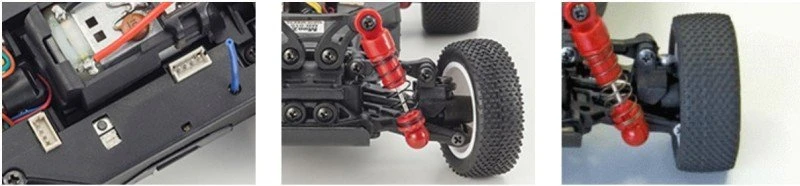

• Main parts including sealed diff gearbox are contained within the dust proof
  structure. 15 ball bearings and a slipper clutch make this machine ready for
  serious action.

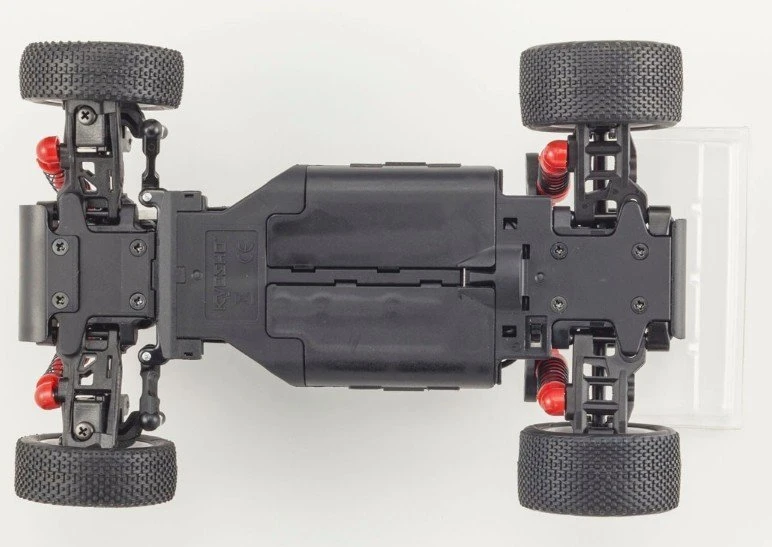

• Flat finish to underside of chassis is achieved with contours for each part
  shape. Efficient design allows tie-rods to be changed simply by removing the
  chassis cover.
• Includes connector for optional gyro unit (MZW431) and the tiny volume allows
  gyro unit’s sensitivity to be manually adjusted.

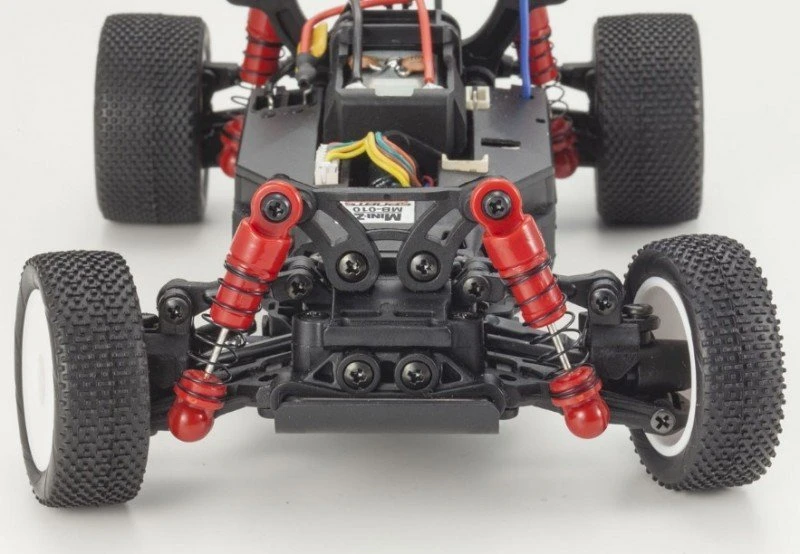

• 4-wheel independent double wishbone suspension equipped with oil shocks.
  Delivers surefooted road holding over a variety of different road surface
  conditions.
• Realizes integrated coupling of drive shafts despite the constraints of
  its size. Also front suspension arms produce a 10-degree skid angle for improved
  rough-road performance.

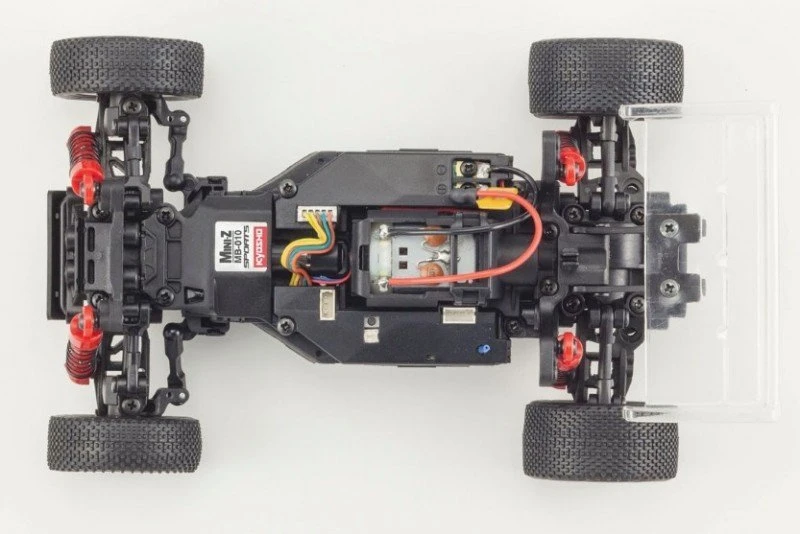

• Chassis features shell structure with battery boxes on each side. High rigidity
  extracts full effectiveness from the suspension.

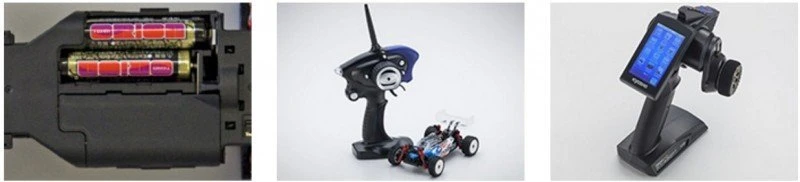

• Optional Syncro Touch KT-432PT transmitter is recommended if increased precision
  and control response is required. Provides even more precise setting flexibility
  with smartphone-like control.
• Readyset package allows model to be enjoyed straight after purchasing batteries.
• Fully pre-assembled chassis with printed polycarbonate body.
• Real racing performance will please buggy owners. Great for indoor practice.

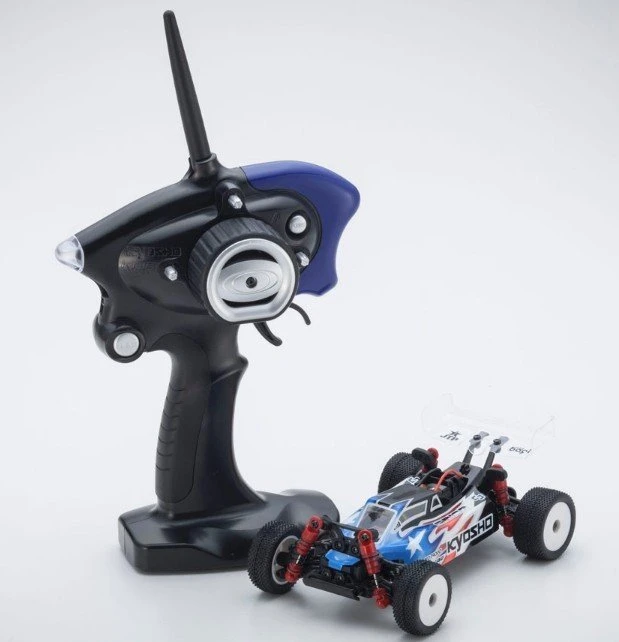

• Includes Perfex KT-19 transmitter. Allows various setting adjustments such
  as steering angle.
• FHS2.4GHz R/C system removes the need to manage frequency bands. A single
  transmitter can be used with multiple R/C models.
• Frequency crystals are not required and up to 40 cars can be run at the
  same time.
• Optional gyro unit set (MZW431) can be installed. Gyro sensitivity can be
  manually adjusted on the chassis.
• Most optional parts already released for MINI-Z Buggy can be installed.
• This model is specially designed for the KT-19 transmitter. It is not compatible
  with the KT-18 and EX-5UR ASF transmitters (No.82011).



ReadySet Contents:

• Factory assembled chassis with pre-installed R/C unit
• KT-19 transmitter
• Pre-painted polycarbonate body finished with markings
• Pinion gears (11T, 13T, 15T)
• Spur gears (33T, 35T)
• Pinion gear tool
• Pairing stick
• Wheel wrench
• Spare nuts for wheels

Required for Operation:

• AAA alkaline batteries x 4 or NiMH batteries x 4 for chassis
• AAA alkaline batteries x 4 for KT-19 transmitter

Specs:

• Length: 167mm
• Width: 106mm
• Height: 68mm
• Wheelbase: 115mm
• Tread (F/R): 89mm/89mm
• Tire(F/R): f37x13.5mm/f37x18.5mm
• Weight: 200g (approx.)
• Motor: 130 class
• Battery: AAA alkaline x 4
• R/C System: KT-19
