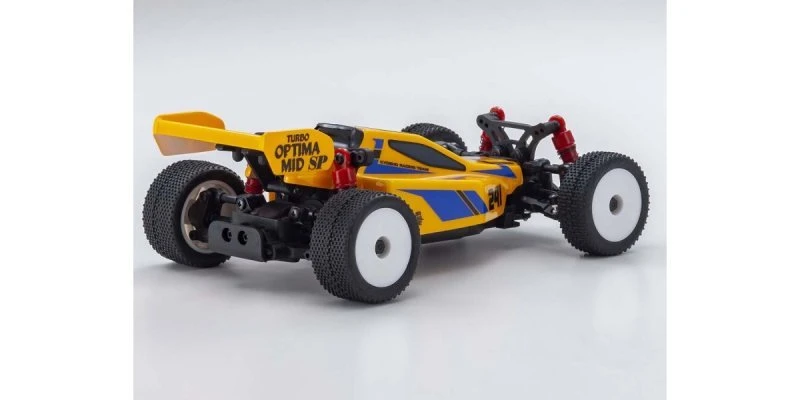

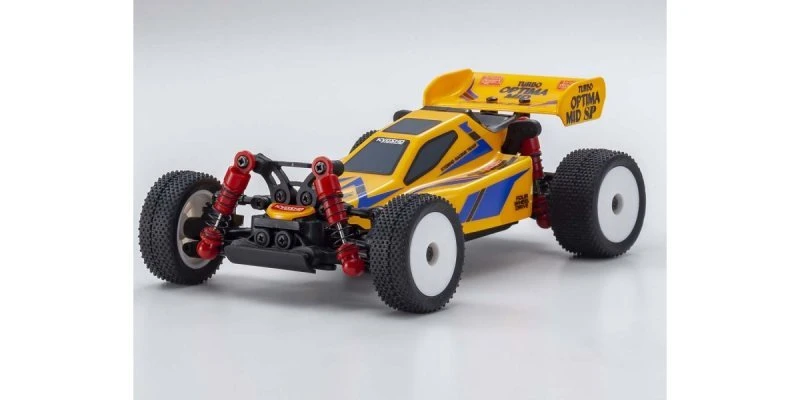

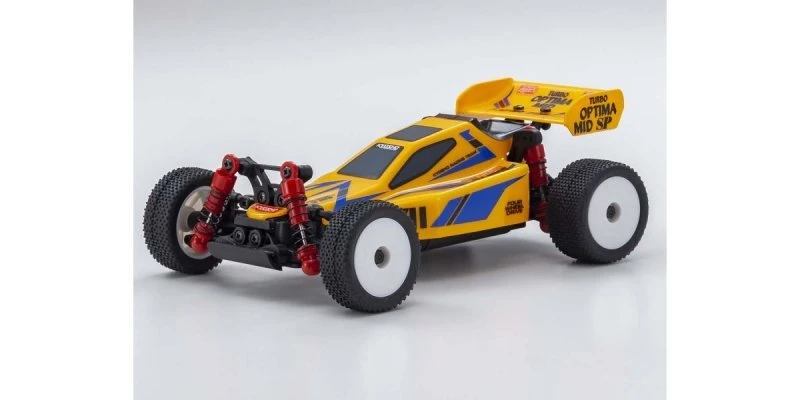

32092Y Kyosho – MINI-Z Buggy Readyset TURBO OPTIMA Mid Special Yellow

Simply add eight AAA-size alkaline batteries to this Readyset and the MINI-Z Buggy brings the fun of R/C car action. The advanced compact design includes 4WD drive train with slipper clutch to protect the gear system, and 4-wheel independent double wishbone suspension with oil-filled shocks to deliver true racing buggy performance. Most critical components are protected within the high-rigidity dustproof chassis shell. 7-stage geared steering servo provides plenty of torque for precision steering response and combines with the control program to realize the MINI-Z’s signature linear handling and light feel. The circuit board also features manual left/right volume adjustment for the optional gyro unit (sold separately) that stabilizes straight line running and improves cornering control. The fully pre-assembled Readyset package makes it simple and enjoyable for anyone to experience advanced R/C buggy performance, whether it’s your first car or as fun-driving second car.
※As the Readyset includes the Syncro KT-531P transmitter operating on FHSS 2.4GHz, it cannot be used with ASF/MHS/FHS 2.4GHz systems.


• Readyset package allows model to be enjoyed straight after purchasing batteries.
• Fully pre-assembled chassis with printed polycarbonate body.
• Real racing performance will please buggy owners. Great for indoor practice.
• Includes Syncro KT-531P transmitter. Allows various setting adjustments such as steering angle.
• FHSS 2.4GHz R/C system removes the need to manage frequency bands.
• Frequency crystals are not required and up to 40 cars can be run at the same time.
• Optional gyro unit set (MZW431) can be installed. Gyro sensitivity can be manually adjusted on the chassis.
• Most optional parts already released for MINI-Z Buggy can be installed.

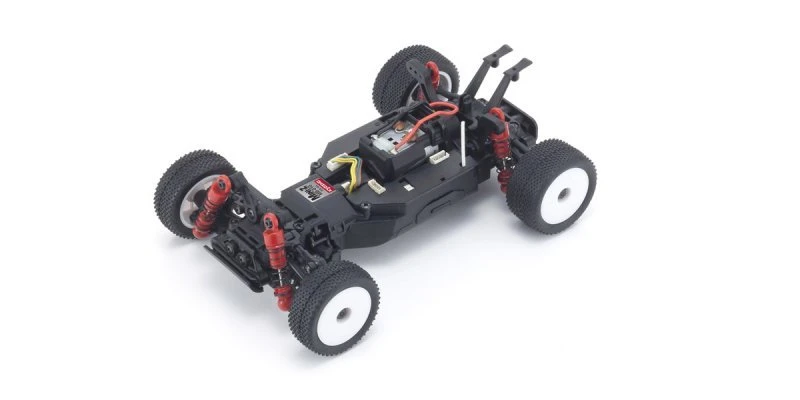

•  Shaft driven 4WD and 4-wheel independent suspension are condensed in the MINI-Z’s compact size. The chassis powers easily over small bumps and gaps.

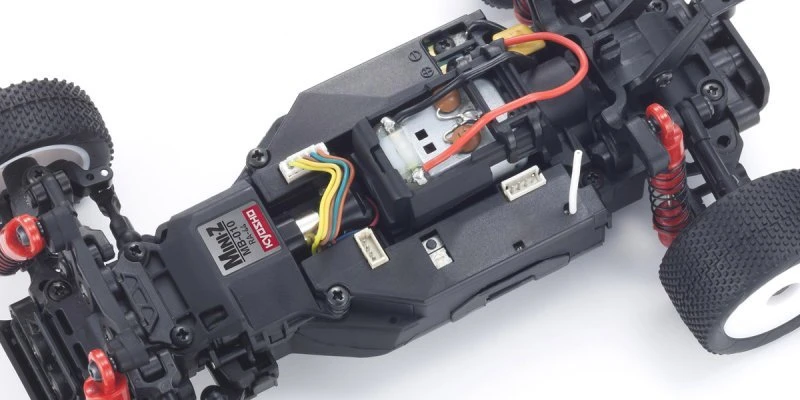

•  Main parts including sealed diff gearbox are contained within the dust proof structure. 15 ball bearings and a slipper clutch make this machine ready for serious action.

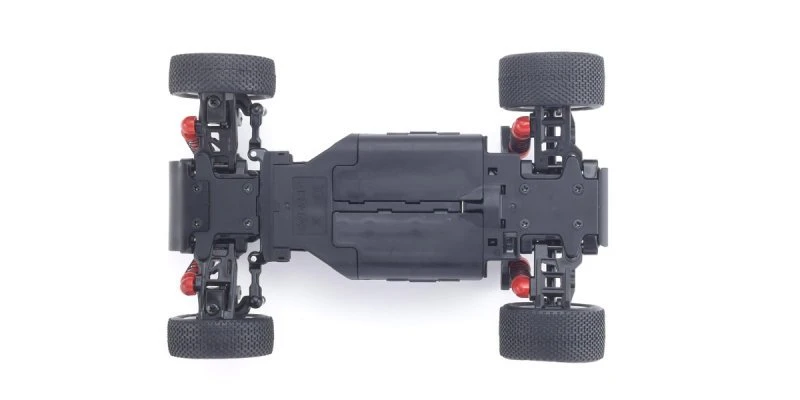

•  Flat finish to underside of chassis is achieved with contours for each part shape. Efficient design allows tie-rods to be changed simply by removing the chassis cover.
•  Includes connector for optional gyro unit (MZW431) and the tiny volume allows gyro unit’s sensitivity to be manually adjusted.

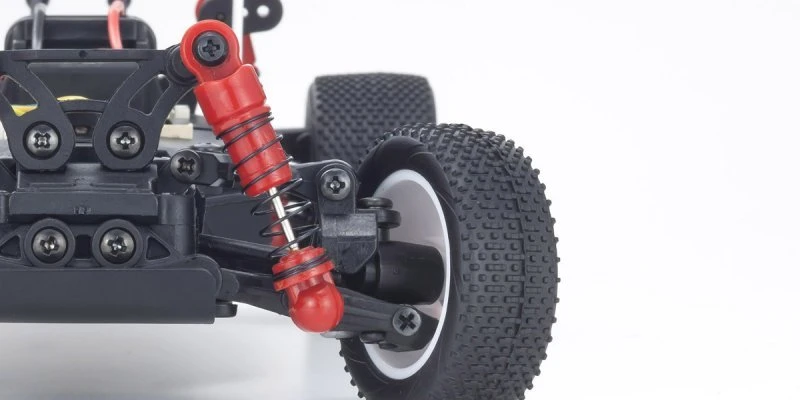

•  4-wheel independent double wishbone suspension equipped with oil shocks. Delivers surefooted road holding over a variety of different road surface conditions.
•  Realizes integrated coupling of drive shafts despite the constraints of its size. Also front suspension arms produce a 10-degree skid angle for improved rough-road performance.

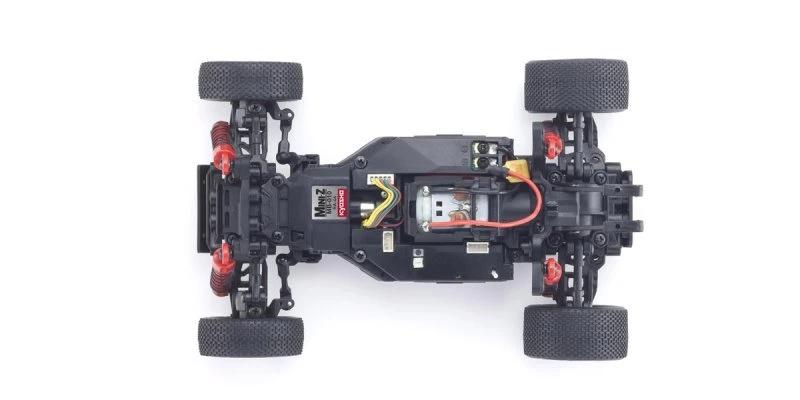

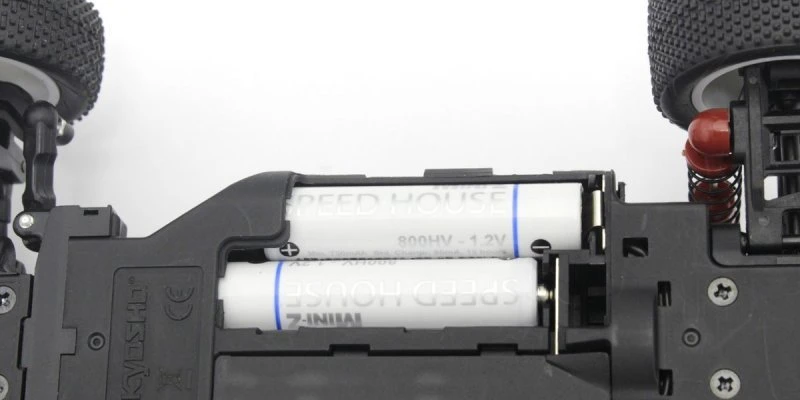

•  Chassis features shell structure with battery boxes on each side. High rigidity extracts full effectiveness from the suspension.

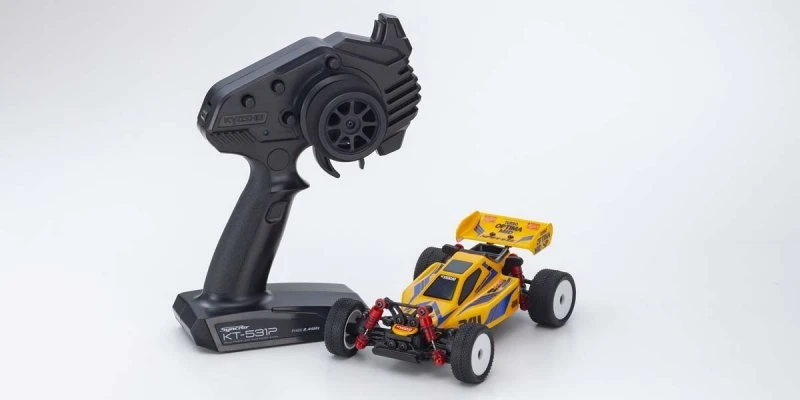

• Readyset includes KT-531P transmitter and other items. Requires only 4 batteries for the transmitter to start enjoying realistic buggy performance.

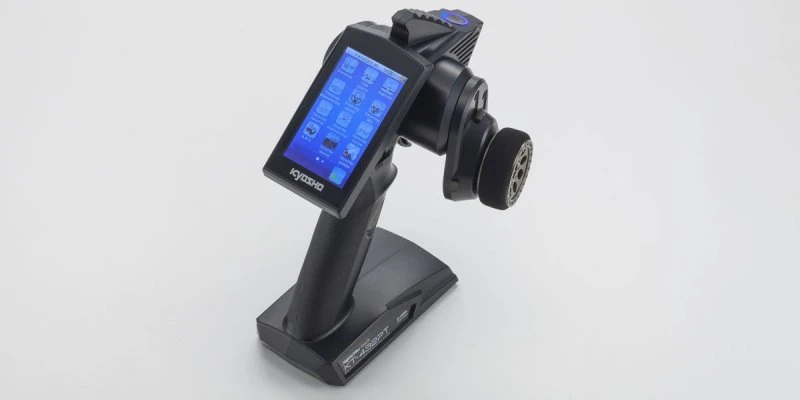

• Optional Syncro Touch KT-432PT transmitter is recommended if increased precision and control response is required. Provides even more precise setting flexibility with smartphone-like control.

TECHNICAL DATA

• Length  167mm
• Width  106mm
• Height  56mm
• Wheelbase 115mm
• Tread (F/R) 89mm/89mm
• Tire(F/R) F37 x 13.5mm/F37 x 18.5mm
• Weight  200g (approx.)
• Motor  130 class
• Battery AAA alkaline x 4
• R/C System KT-531P FHSS 2.4 GHz

KIT CONTENT

• Factory assembled chassis with pre-installed R/C unit
• KT-531P transmitter
• Pre-painted polycarbonate body finished with markings
• Pinion gears (11T, 13T, 15T)
• Spur gears (33T, 35T)
• Pinion gear tool
• Pairing stick
• Wheel wrench
• Spare nuts for wheels

REQUIREMENT TO RUN

• AAA alkaline batteries x 4 or NiMH batteries x 4 for chassis
• AAA alkaline batteries x 4 for KT-531P transmitter
