32129R Kyosho – AWD MA-020S Mazda RX-7 FD3s Red RS Readyset RTR Mini-Z

Drift tires and a Readyset package! The MA-020S AWD Sports has arrived!

Advanced 020 model chassis with gyro-ready circuit board !
To bring its dynamic performance to even more drivers, the MINI-Z AWD Sports
is now available in a Readyset. The latest MA-020 chassis features VCS (variable
camber suspension) on the front that optimizes camber change with suspension
stroke and a specially designed circuit board. The chassis design allows space
for installing the special Sports version gyro (sold separately) and adjustment
of gyro gain (sensitivity). The gyro can be adjusted on the chassis to reflect
the amount of steering correction in response to changes in chassis posture,
allowing beginners through to experts to drive to their full potential. Fully
fitted out with precision ball bearings, the high drive efficiency of the MA-020
chassis is complimented in the Readyset by the unique scale body and 2.4GHz
Perfex KT-19 R/C system that requires no frequency band setting; all at a great
value price. Simply set the batteries to enjoy the thrill of drift driving with
the included set of drift tires. The chassis is compatible with nearly all ASC
MINI-Z bodies (additional parts maybe required for some body styles). The MINI-Z
AWD Sports promises a unique world of dramatic racing action for you to experience
and enjoy.

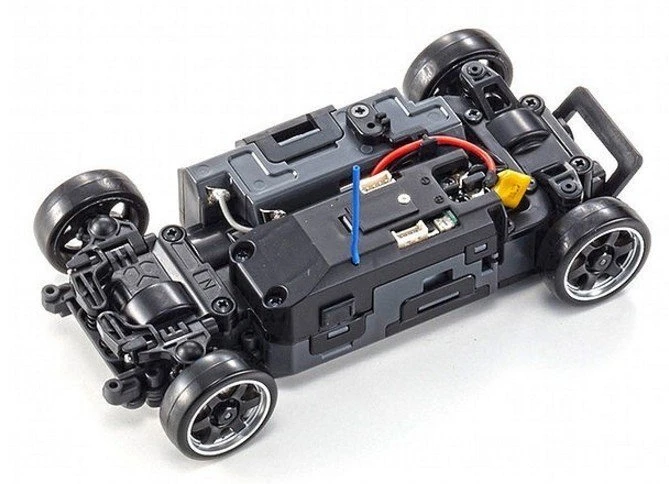

• Newly developed AWD Sports chassis based on MA-020 chassis.

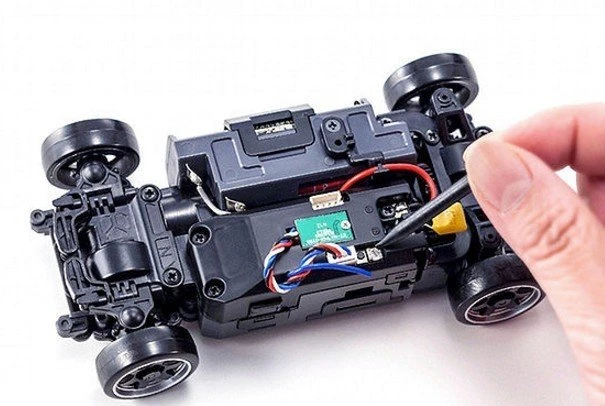

• Special circuit board compatible with optional gyro.
• Chassis features gyro sensitivity adjustment function.
• Drift tires are installed as standard.
• Readyset requires only batteries to be ready for action!
• Features 2.4GHz Perfex KT-19 transmitter that requires no setup of frequency
  bands.

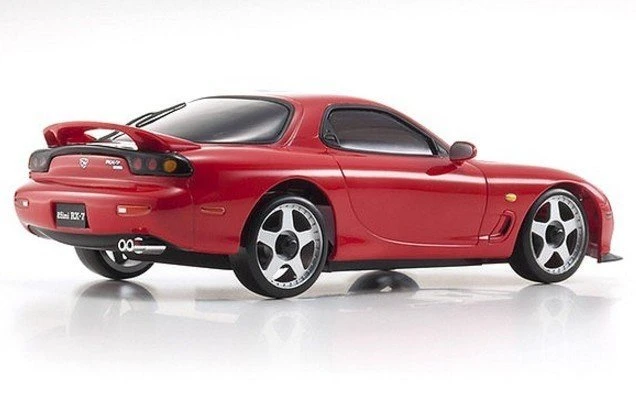

• Factory completed body comes with display model quality finish.
• Features VCS (variable camber suspension) that adjusts camber in accordance
  with suspension stroke.
• Coil spring on front suspension can be easily replaced without tools.
• A wide range of optional parts is available to be installed.
• Note) Optional ICS can NOT be used.Also, this model is specially designed
  for the KT-19 transmitter. It is not compatible with the KT-18 and EX-5UR
  ASF transmitters (No.82011). It is only compatible with the special (No.MZW431)
  gyro unit (sold separately).



＜ ReadySet Contents ＞

• Factory assembled chassis with pre-installed R/C unit
• Pre-painted factory assembled plastic body, finished with markings

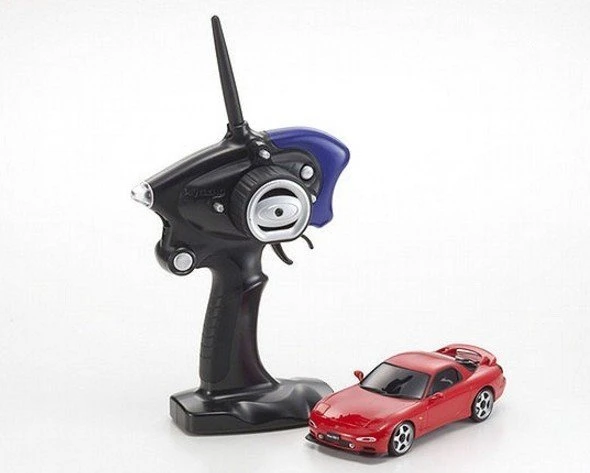

• 2.4GHz Perfex KT-19 transmitter
• Drift tires (installed)
• Pinion gears (15T, 17T, 19T, 21T)
• Spur gears for wheelbases: 27T, 29T, 31T for M, L
• Pinion gear tool
• Spare nuts
• Wheel wrench
• Pairing stick
• Parts for changing front width



Chassis Technical Data

• Length 164.0 – 165.0mm
• Width 68.0 – 70.5mm
• Height 45.0 – 48.0mm
• Wheelbase 90(M)mm
• Tread (F/R) 56.5 – 58.5mm / 56.5 – 58.5mm
• Tire(F/R) F8.5 mm / F8.5 mm (drift tires)
• Gear Ratio 7.23, 6.38, 6.0, 5.71, 5.34, 4.97, 4.5 : 1
• Weight 192g (approx.)
• Motor 130 class
