32422R Kyosho – Mazda Demio XD Touring Soul Red Premium MA-03F FWD R/S Readyset

To make the MR-03 Readyset even more user-friendly and appealing to more drivers, Kyosho introduces the completely new front wheel drive chassis design in the first FWD chassis of the MINI-Z series! Widely popular body styles in highly detailed body sets create the incredibly realistic MINI-Z FWD series lineup. A newly developed transmitter delivers precise control from the optimal weight balance of the new chassis design that incorporates the proven reliability and durability of the AWD’s drive train and suspension, as well as the servo from the MR-03. In addition to the inherent straight line stability and easy steering control of front wheel drive, linear handling from the new control program on the newly designed circuit board can be further enhanced for even easier control characteristics by installing the optional gyro unit (MZW431). Including the latest Syncro KT-531P transmitter with steering trim, throttle trim, dual rate, LED control function, and sponge steering wheel for comfort fit, the car has a control feeling that loses nothing to rear wheel drive MINI-Z racers. The new MINI-Z FWD presents a new way to enjoy the performance and style only the MINI-Z can deliver!
*Syncro KT-531P transmitter uses FHSS 2.4GHz and is not compatible with existing ASF/MHS/FHS 2.4GHz systems.

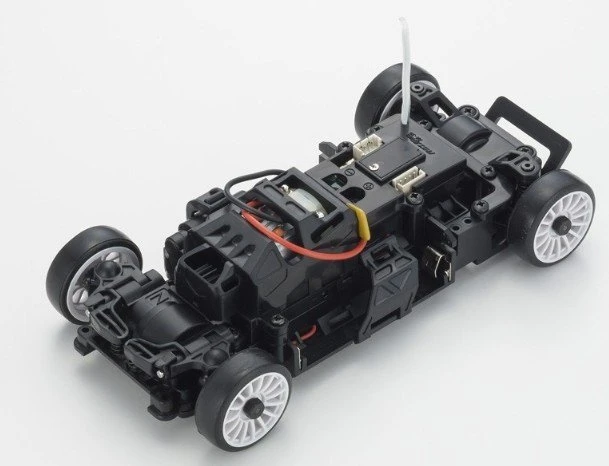

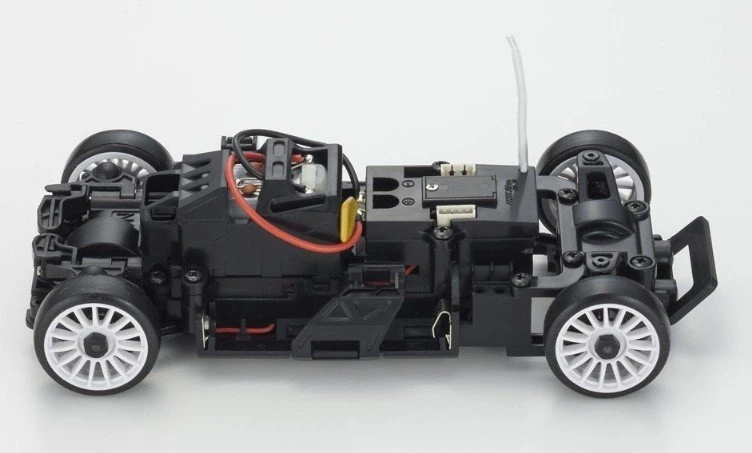

First MINI-Z Racer chassis with front wheel drive positions the motor behind the front axle in a front midship layout.

Newly developed Syncro KT-531P transmitter provides full range of setting adjustments.

New circuit board with newly developed control program realizes dramatically improved steering feel.

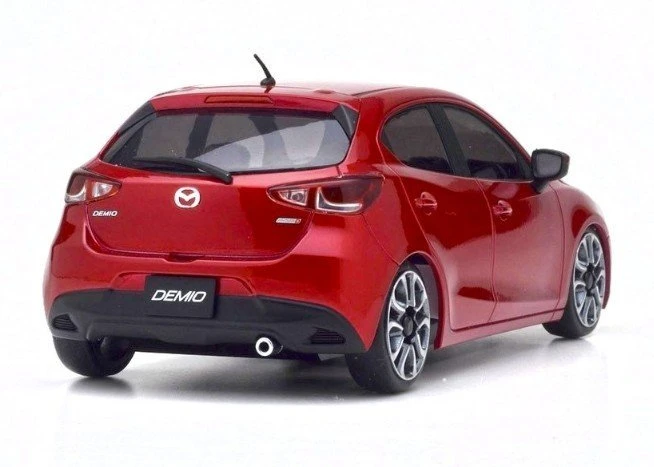

Highly detailed display-standard body is fully factory finished.

Full ball bearing specifications include 12 bearings.

Wheelbase can be set to M(90mm), L(94mm) and LL(98mm).

Compatible with optional gyro unit (MZW431). Volume of gyro effect can be adjusted on the chassis. (**Settings can be adjusted from the transmitter if using KT-432PT transmitter (sold separately)).

Compatible with optional LED light unit clear & red (MZW429R).

TECHNICAL DATA

Length 156.0mm

Width 70mm

Height 57.0mm

Wheelbase 98.0mm (LL)

Chassis FWD(MA-03F)

Front Wheel Offset Narrow +1.5mm (for AWD)

Rear Wheel Offset Narrow +1.5mm (for AWD)

R/C System Syncro KT-531P

KIT CONTENTS

Factory assembled chassis

Pre-painted plastic body, complete with markings

2.4GHz Perfex KT-531P 2.4GHz transmitter

Pinion gears 15T, 17T, 19T, 21T

Spur gears 27T, 29T, 31T

Pinion gear tool

Spare nuts

Pairing stick

Tires, wheels

Mini pylons

REQUIRED FOR OPERATION

AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.

AAA-size alkaline batteries x 4 for transmitter
