32880 Kyosho – MR-03VE PRO GP Limited Chassis Set (MR-03 With Hybrid/ASF Compatible 2.4GHz System)

Introducing the 3rd version of the MR-03VE PRO, the “GP Limited” features the ultra-fast MHS2.4GHz system that delivers a response speed 16-times faster than the existing ASF2.4GHz + KT18 transmitter combination and 4-times faster than the ASF2.4GHz system + KO PROPO EX-1 transmitter combination. Equipped with the newly developed Xspeed VE PRO brushless motor that incorporates a one-piece aluminum case and heatsink, this dynamic 12000KV specification motor is kept cool to extract maximum performance to produce the fastest speeds in MINI-Z history. Additional features include the previously optional MML aluminum motor mount to lower the center of gravity and enhance heat dissipation even further, MML roll shock that increases setting flexibility, and ball diff for improved cornering and running performance. Previously optional parts included as standard in the “GP Limited” are anodized in a special color so you can enjoy incredible performance in this uniquely styled machine.

●The first MR-03 chassis set equipped with the newly developed Xspeed VE PRO brushless motor (12000KV).
●Features hard anodized MML aluminum motor mount and MML roll shock.
●Gold plated motor & battery terminals deliver efficient power supply.
●MHS2.4GHz system delivers the fastest control response in MINI-Z history.
●I.C.S. system can be used with the existing manager for the VE.
●Features full ball bearing specifications with ball diff (black anodized).
●Compatible with MINI-Z MR-03VE PRO GP Limited (MHS/ASF Compatible 2.4GHz System) Chassis Set for the MR-03 chassis.
●Front suspension VCS optimizes camber in accordance with suspension stroke.
●Compatible with ASF2.4GHz system. Transmitter sold separately.
●Includes digital steering servo with coreless motor.
●Coil spring on the front suspension can be easily replaced by removing the spring stopper with just two screws.

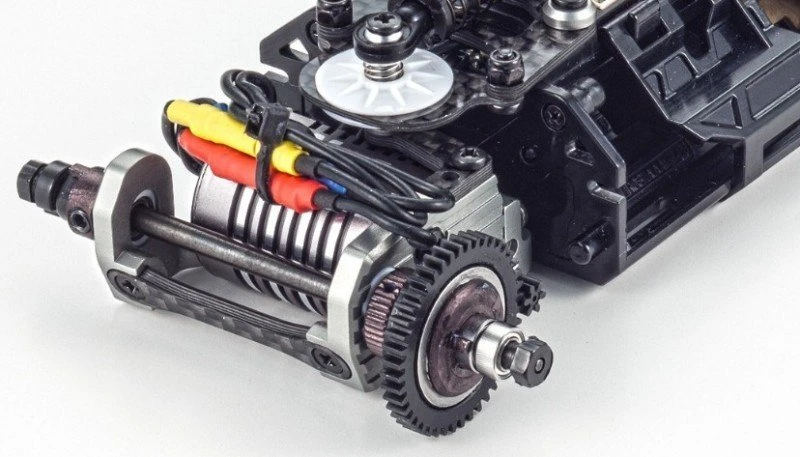

Features newly developed Xspeed VE PRO brushless motor (12000KV) with built-in one-piece high heat dissipating heatsink aluminum case.

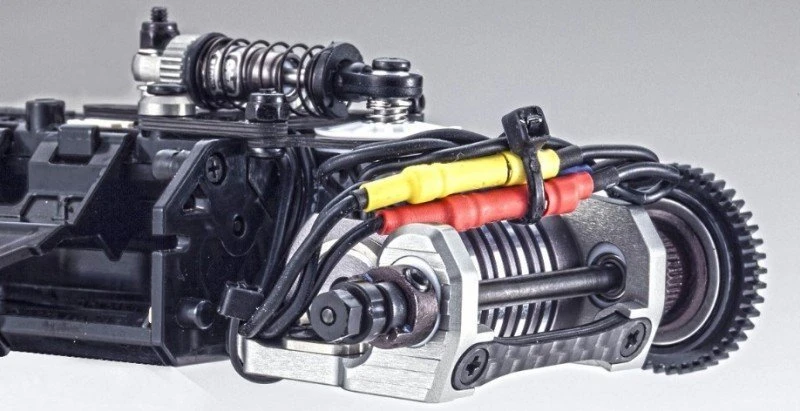

Hard anodised machine cut MML aluminium motor mount. Realizes lower motor mount and improved traction performance.

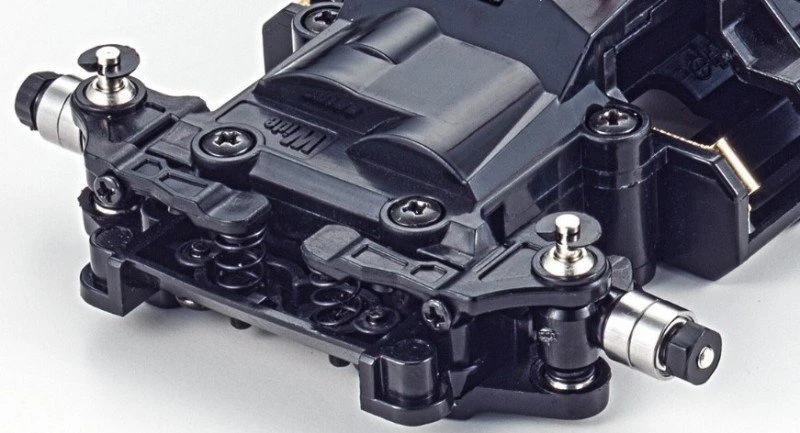

Newly designed glass fibre reinforced resin front suspension (upper / lower) .

Equipped with ball diff that realizes smooth differential rotation. Anodized in the GP LIMITED’s special black color.

Realizes 4-times the response speed compared to ASF2.4GHz system + KO PROPO EX-1 combination. Response speed and linear controllability contribute to faster lap times.

Ultrafast response of the MHS2.4GHz system can only be realized in combination with the optional Syncro EX-6. When used with the KT-18 transmitter, specifications revert to conventional ASF2.4GHz system.

TECHNICAL DATA

• Length
• 117.7mm
• Width
• 70-76mm
• Height
• 35mm
• Wheelbase
• 98.0mm(LL)
• Tread (F/R)
• 61.5-63.0mm
• Tire(F/R)
• 25×8.5mm (sold separately) / 25×8.5-11mm (sold separately)
• Gear Ratio
• 7.3, 6.3, 5.5, 4.9:1
• Weight
• 135g (approx.)
• Motor
• Team ORION Xspeed VE PRO (KV12000)

KIT CONTENT

MR-03W-MML factory assembled chassis installed with Team ORION Xspeed VE PRO brushless motor

Pinion gear (6T, 7T, 8T, 9T)

Wheel wrench

Pinion gear tool

Spare wheel nuts

REQUIREMENT TO RUN

ASF2.4GHz transmitter KT-18, or MHS 2.4GHZ transmitter EX-6

* Requires compatible transmitter if using MINI-Z HYBRID SPREAD SYSTEM (MHS).

Auto Scale Collection Body (body set, wheels, tires)

4 x AAA-size alkaline batteries or Ni-MH batteries for chassis.

4 x AAA batteries for transmitter
