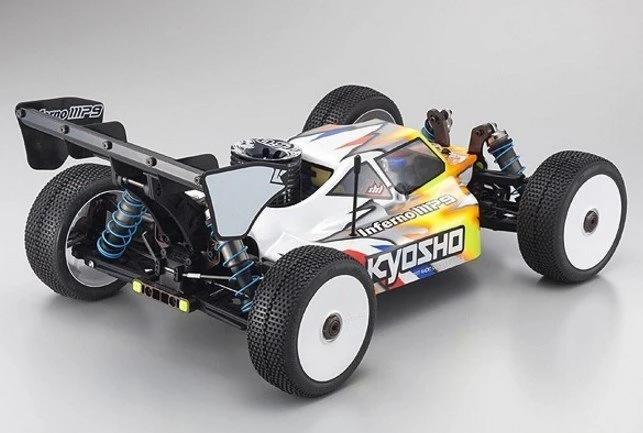

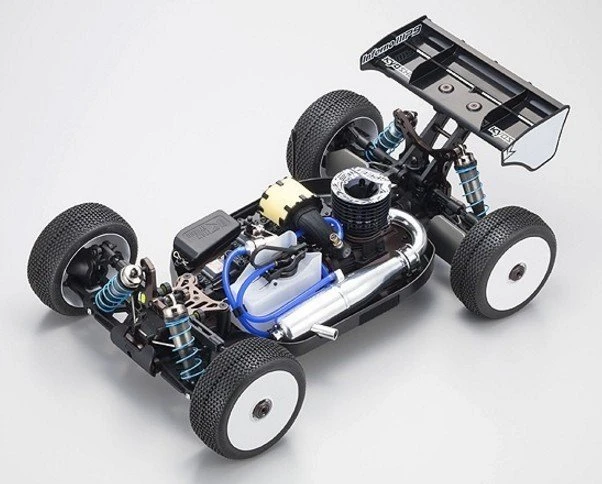

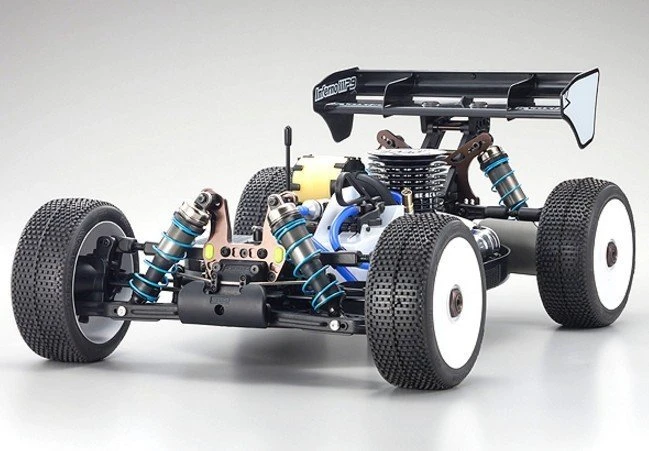

33001 Kyosho – 1/8 GP Inferno MP9 TKI4 Kit 4WD

With eyes on the ultimate prize of its 9th IFMAR World Championship title to be contested in the USA in October 2016, Inferno developer Yuichi Kanai has evolved the Inferno MP9 through 4 years of trial and error to produce the TKI4 model. Built for faster speed than the former TKI3, the new TKI4 features revised front/rear suspension for improved cornering stability and sharp control characteristics. A newly designed body and rear wing produces superior aerodynamics for high-performance cornering and traction. Improved driving performance goes hand-in-hand with enhanced maintenance and improved durability that can be relied upon during the critical stages of the race. Chassis structure and parts come together with precision and efficiency so the TKI4 can be recommended for serious buggy racers as well as those wanting to take the challenge of driving the ultimate 1/8 GP buggy.

Includes newly designed body that perfectly balances all factors for front end turning, cornering and traction performance.

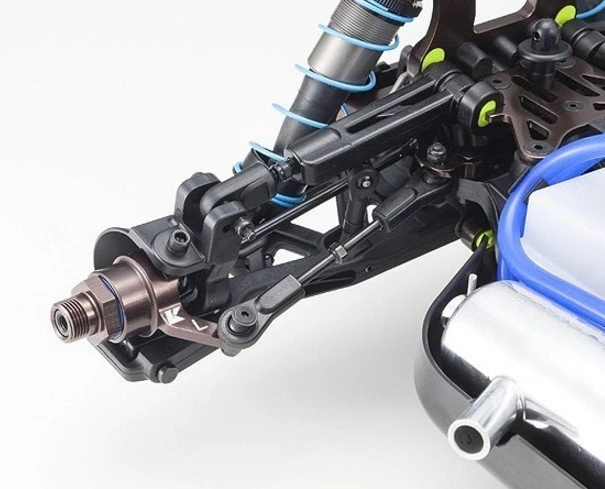

Front suspension arm is 2mm longer than the TKI3 and ribs have been added for more strength. Delivers both improved surface tracing and cornering.

Big bore shocks with φ1.5×5 hole pistons that power the chassis over surface gaps.

Front universal shafts and tie rods have also been lengthened and upgraded with reinforced tie rod ball ends.

Newly designed rear wing features 2 additional vertical fins for greater stability over jumps and removable gurney flap for increasing rear grip.

Features newly engineered wing stay with increased mounting surface area for more secure fixing to prevent damage and deformation.

Newly tooled air cleaner holder and fuel filter holder prevent rupture of fuel pipe to avoid engine trouble.

Chassis layout maintains the TKI3’s front mount of the receiver battery for superior controllability.

Chassis layout maintains the TKI3’s front mount of the receiver battery for superior handling.

TECHNICAL DATA

• Length: 490mm
• Width: 307mm
• Height: 180mm
• Ground Clearance: 28mm
• Wheelbase: 325mm (4 settings with rear hub collar position changes)
• Tread (F/R): 254mm (2 front settings, 3 rear settings with bush changes)
• Tire(F/R): sold separately
• Gear Ratio: 11.7:1
• Weight: 2,950g (approx.)
• Engine: 21-class engine (sold separately)

KIT CONTENT

• Unassembled Kit
• Special clear body
• Special wheels
• Logo Decals

REQUIREMENT TO RUN

• 2-channel, 2-servo R/C System for cars
• .21-class engine
• Muffler and manifold
• Tires & inner foam
• Fuel
• Engine starting tools
• Starter box
• Batteries for R/C system
