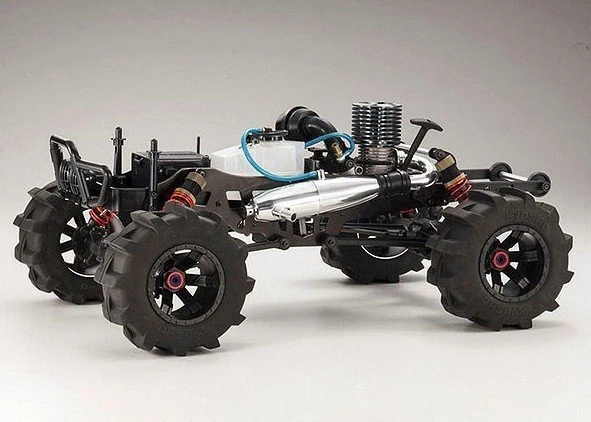

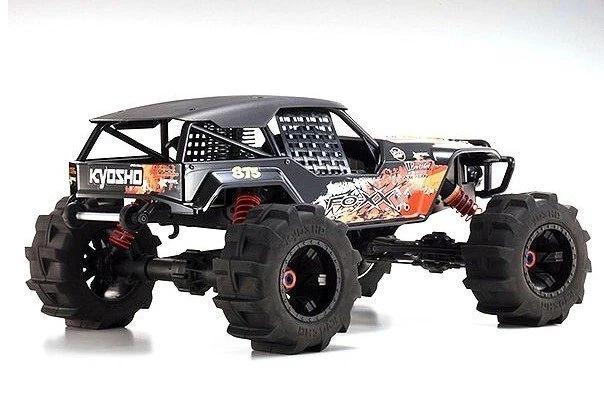

#33151 Kyosho – 1/8 4WD GP Truck FO-XX GP With KT-231P Readyset

33151 FO-XX GP w/KT-231P 1/8 GP 4WD RS

Go ballistic with rigid axle 4WD + 3-speed A/T + 25-class engine power!

From its crawler-like agility to explosive power for wheelie starts, the FO-XX
GP takes monster trucking to a new level. Formula off-road form combines with
paddle tread pattern tires to produce breathtaking running performance. The
hybrid tube frame and monocoque chassis structure is adorned with a pre-colored
body and dummy front fog lights to create an intrepid style. A hinged front
opening allows for fast and easy maintenance while the inner cover inside the
fender not only fills the gap between the tires and chassis for improved scale
appearance, but also keeps dirt out from the chassis. Proud owners of the FO-XX
GP will be impressed with the fine attention to detail throughout, not to mentioned
the proven front-rear 3-speed transmission + rigid axle + chain & shaft
driven 4WD from the Kyosho Mad Force. Equipped with new polished welded manifold,
tuned muffler and KE25 engine as its power source, the FO-XX GP becomes an unstoppable
force. Use the break-in reducer and there is no need for break-in adjustment
so even beginners can enjoy the brute force of the FO-XX GP as its runs wheelie
charges with its powerful acceleration. This is a fully pre-assembled Readyset
so all that’s required is the fuel, engine starting tools, and batteries for
the R/C system. With the 2.4GHz Syncro KT-231P transmitter included, simply
switch the power on and it automatically scans for an open frequency to use.
Other features include separate dual-rate settings and a failsafe function that
applies full brakes if the signal is lost. Combining real machine form and unstoppable
running power, the FO-XX takes off-road to the extreme.

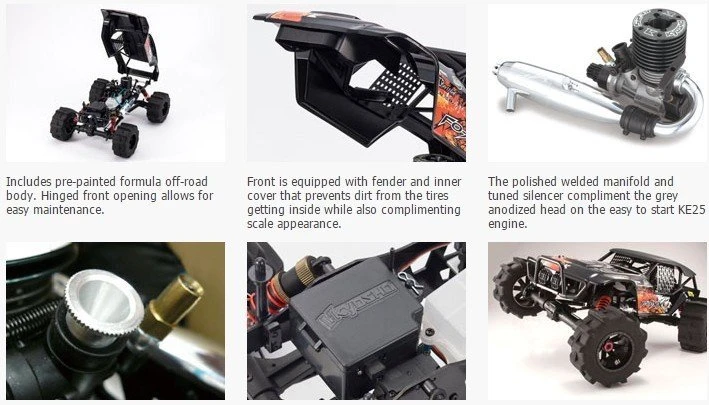

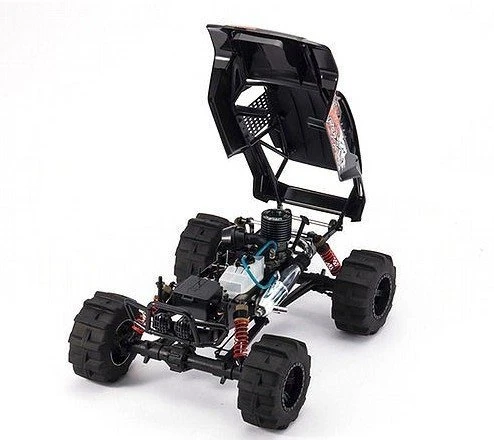

• Includes pre-painted formula off-road body. Hinged front opening allows
  for easy maintenance.
• Front is equipped with fender and inner cover that prevents dirt from the
  tires getting inside while also complimenting scale appearance.
• The polished welded manifold and tuned silencer compliment the grey anodized
  head on the easy to start KE25 engine.
• Includes removable intake limiting reducer. Minimizes lean mixture from
  over tightening of the needle and allows easy and safe break-in of the engine.
• Low height radio box allows realistic recreation of scale body form and
  realizes a lower center of gravity for improved cornering and driving stability.
• With plenty of suspension stroke, the optimal suspension arm position at
  1G delivers improved maneuverability. High strength suspension arm delivers
  tight handling.

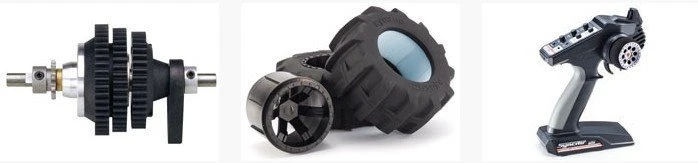

• 3-piece clutch shoe produces smooth gear mesh and efficient power while
  the 3-speed transmission delivers powerful traction and extended acceleration.
• Paddle tread pattern tires deliver tremendous running power. 17mm wheel
  hubs are compatible with both Inferno and market size wheels.
• Feature-packed 2.4GHz KT-231P transmitter allows settings to be freely adjusted.
  High torque KS5031-09MW servo incorporates precision metal gears for strength
  and accuracy.
• Fully factory assembled Readyset.
• Formula off-road body style exudes realism.
• 3-speed A/T makes full use of the power band and is included as standard.
• Shaft and chain 4WD mechanism transfers traction efficiently.
• Includes formidable black anodized side plate chassis.
• Rigid front and rear axles feature robust casing.
• 150cc fuel tank provides long run times.
• Unique design of steering knuckle delivers increased steering angle.
• Pre-painted and pre-cut body with decals applied.
• Solid steel bevel gears equipped on rear diff gear.
• Full ball bearing specifications use 22 bearings through the drive train.
• Low height radio box delivers low center of gravity and effectively protects
  R/C system from dirt.
• Paddle tread pattern tires provide sure-footed grip.
• 17mm wheel hubs and nuts are compatible with the Inferno series.
• Equipped with large capacity big bore shocks as standard.
• Front – rear interchangeable suspension arms provide efficient maintenance
  and parts utilization.
• Long wheelbase and low down suspension produces dynamic speed as well as
  stability in straight line running and cornering.

Readyset Contents:

• Factory assembled chassis complete with control linkages
• Pre-colored body complete with decals applied
• Pre-installed 2.4Ghz KT-231P R/C system
• Fuel bottle
• Plug heater
• Cross wrench (large)
• 17mm Wheel wrench
• 1.5, 2, 2.5, 3mm Hexagonal wrench
• Note: Fuel, 8 x AA sized alkaline batteries for transmitter & receiver,
  2 x D-size batteries for plug heater are sold separately.

Required for Operation:

• 8 x AA sized alkaline batteries for transmitter & receiver
• Fuel
• 2 x D-size alkaline batteries for plug heater

Chassis Technical Data:

• Length: 545mm
• Width: 383mm
• Height: 248mm
• Ground Clearance: 54.5mm
• Wheelbase: 360mm
• Tread (F/R): 312mm / 312mm
• Tire(F/R): F155×70.5mm / F155×70.5mm
• Gear Ratio: 25.7/19.8/15.6:1
• Weight: 4,200g approx.
• Engine: KE25 with recoil starter
