34932 Kyosho – 1/8 Honda NSR500 1991 Kit EP Motorcycles Hanging On Racer

Fun to build, pleasing to display, amazing to drive! The one and only electric R/C bike with hanging on rider figure than leans through corners

Since it’s first release in 1992, Kyosho’s long selling Hanging On Racer model is still as popular as ever. The S.D.S.S (semi direct steering system) delivers high performance fully independent motion with the rider figure construction incorporating 13 different connections so it hangs on to the bike as it leans into corners. The result is driving performance just like a real motorbike that is easy enough for anyone to control. In addition, each section of the bike is designed with an incredible level of scale detail from the body cowl, inverted front fork suspension, brake disk & calipers, wheels, drive chain, sprocket and asymmetrical swing arm to recreate a model of display standard quality. However, as only a few parts are used in construction, even beginners can enjoy the satisfaction of the assembly that only takes a short time to complete. Dive deep into the fascinating realm of R/C electric motorbike driving like never before and discover the pure enjoyment of building, displaying and driving your own Hanging On Racer.

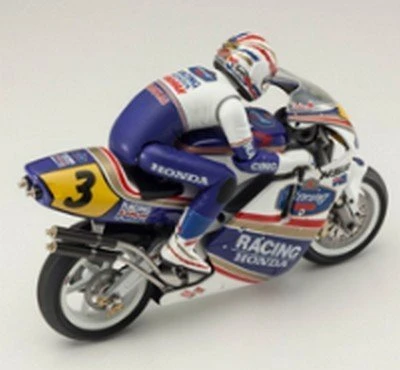

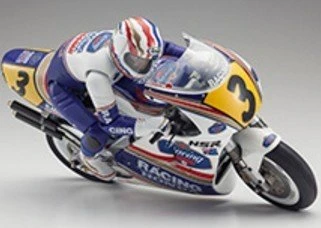

Recreation of the Honda NSR500 that competed in the 1991 Road Racing World Championship Grand Prix (WGP) 500cc class.

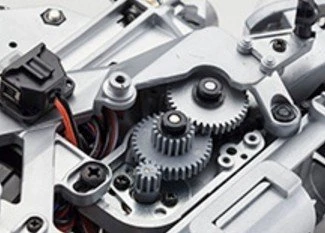

Features chain drive system incorporating sprocket and mini chain, similar to a real motorbike.

Includes Le Mans DM20 motor with moderate power and easy control characteristics.

Unique S.D.S.S enables full bank cornering.

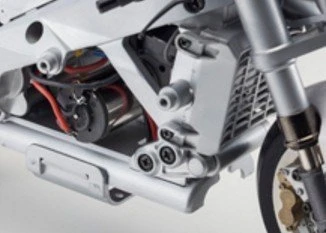

Twin tube style mainframe optimizes space utilization with air-cooling.

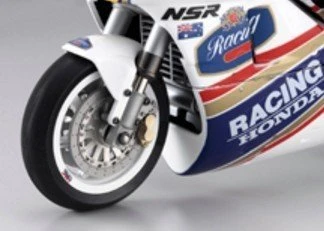

Inverted front fork suspension.

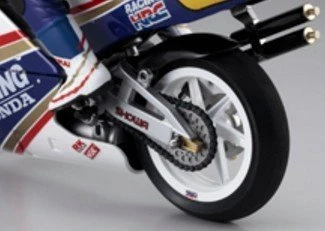

Rear suspension uses asymmetrical swing arm with mono-shock friction damper.

TECHNICAL DATA

Length : 270mm

Width : 98mm

Height : 190mm

Wheelbase : 185mm

Tire(F/R) : 78x18mm/86x23mm

Gear Ratio : 13.80:1~19.30:1

Weight : 750g (approx.)

Motor : Le Mans DM20

KIT CONTENTS

Chassis kit

Pinion gear (10T, 12T, 14T)

Grease

Cross wrench

Pinion gear tool

REQUIRED FOR OPERATION

2ch R/C system

Battery for model (7.2V-1600mAh Ni-MH recommended)

1 x servo (L32 x W16 x H31.5 max.)

1 x ESC (L34xW24xH14mm max.)

Batteries for transmitter

Battery charger for model battery

Charger Adapter

Paint and paintbrush
