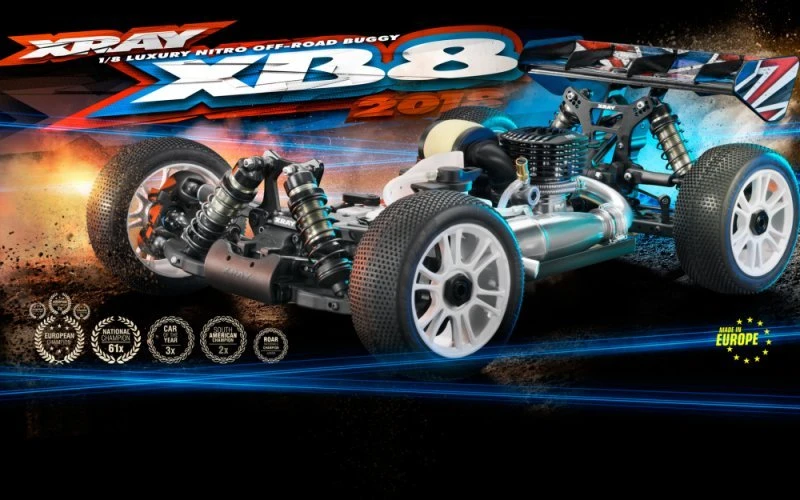

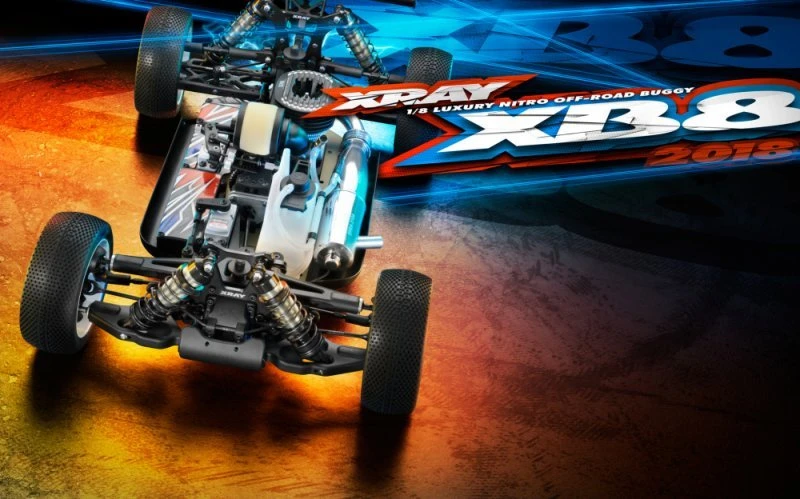

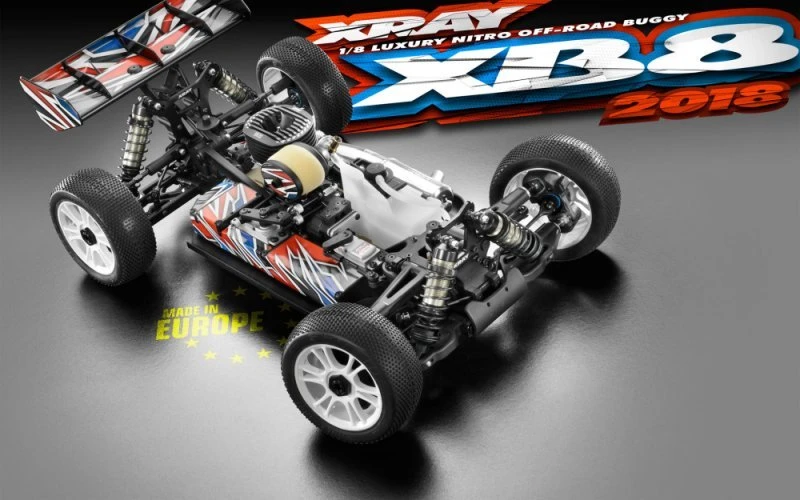

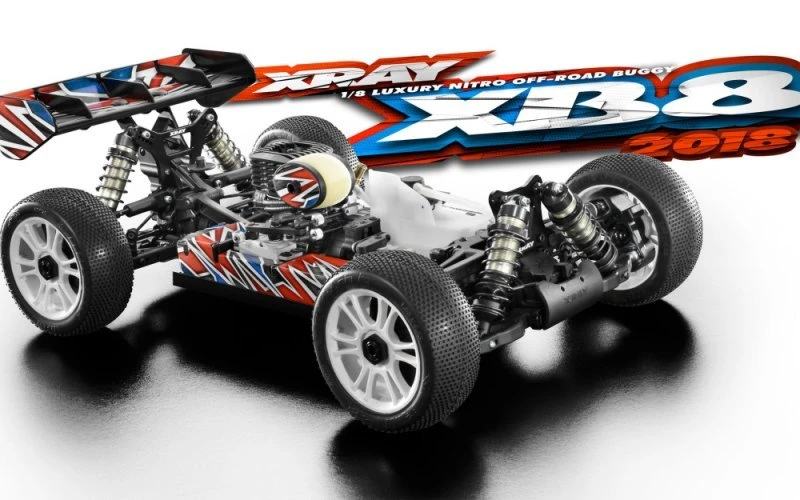

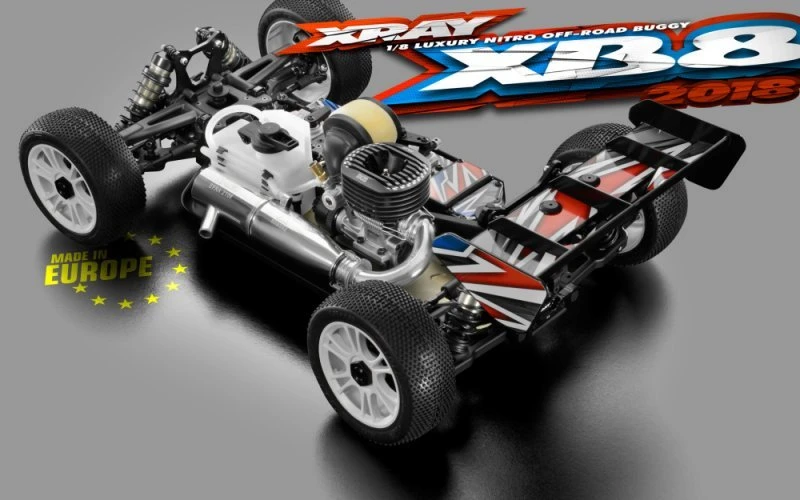

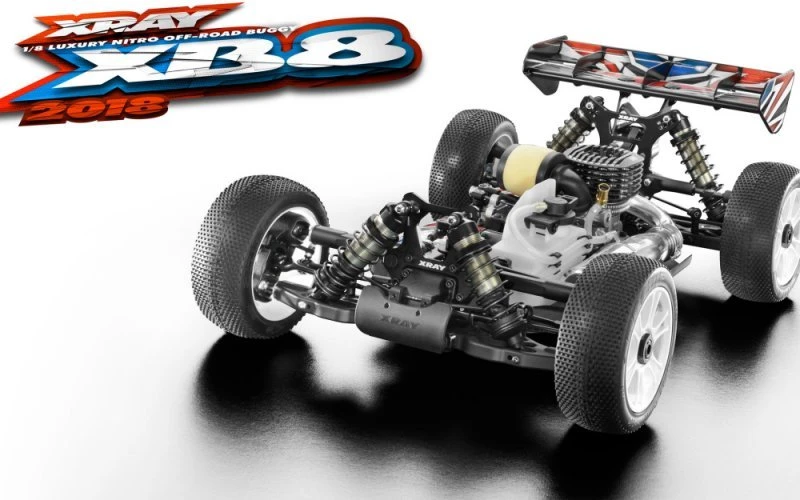

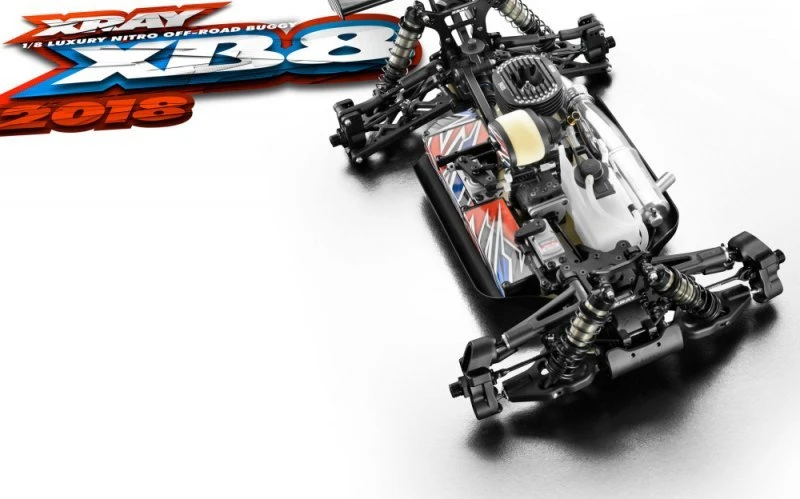

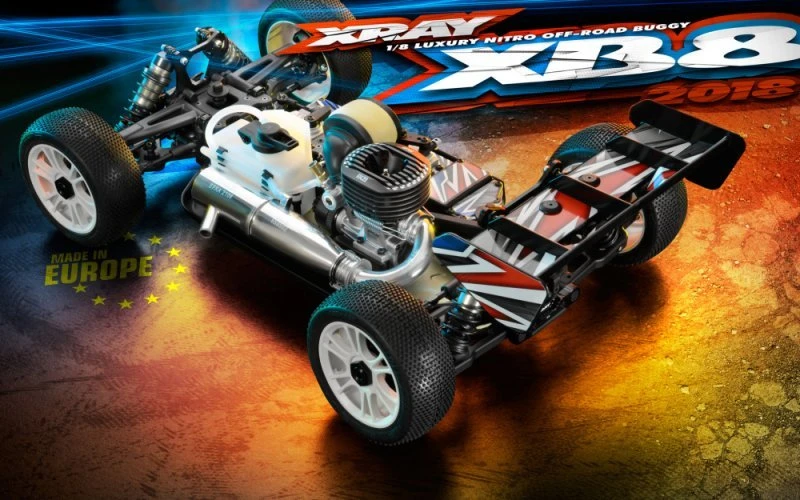

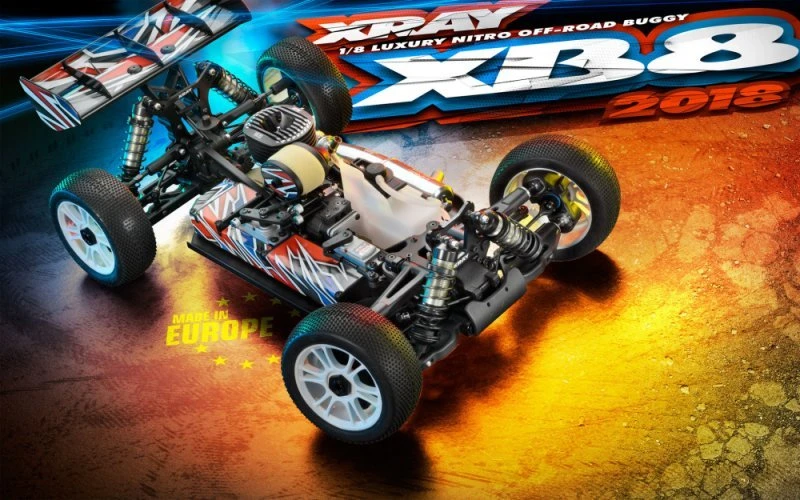

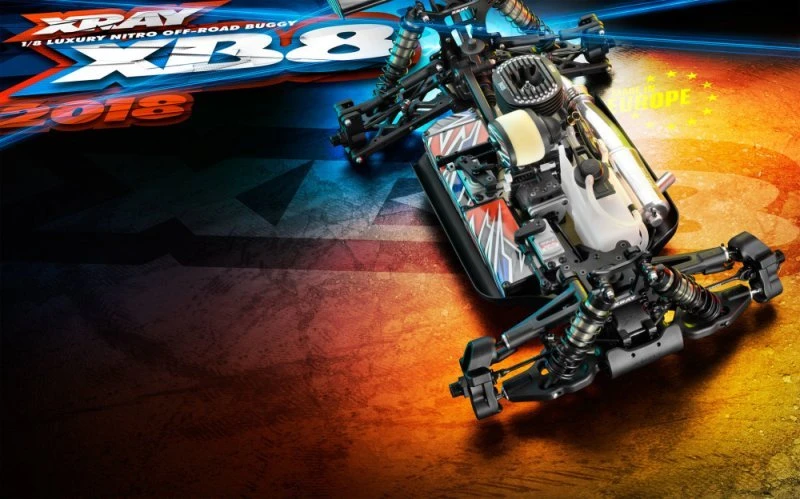

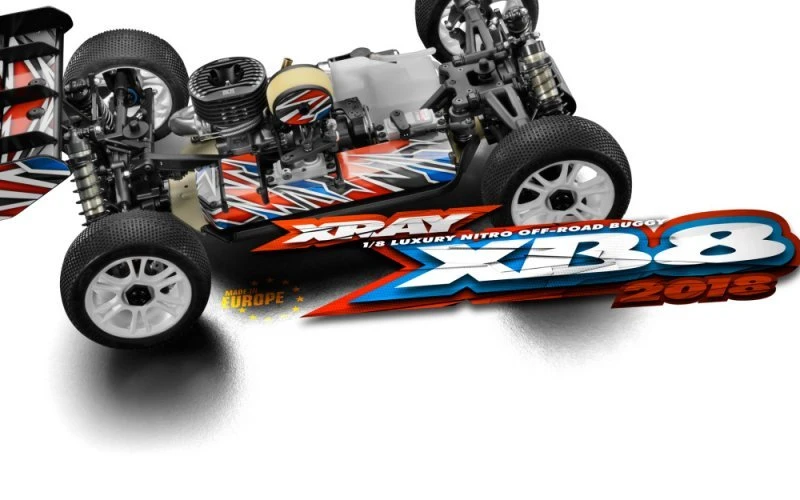

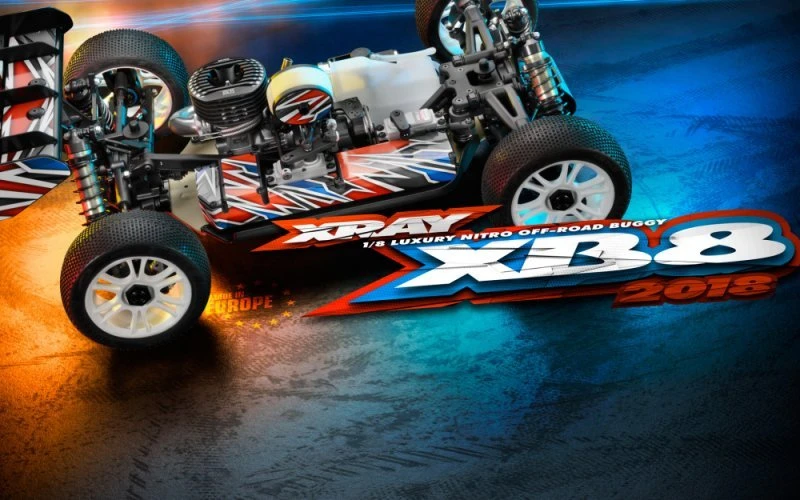

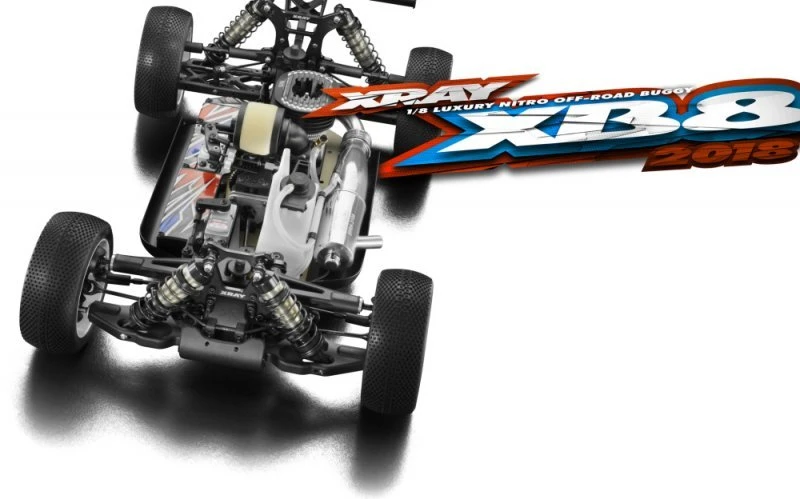

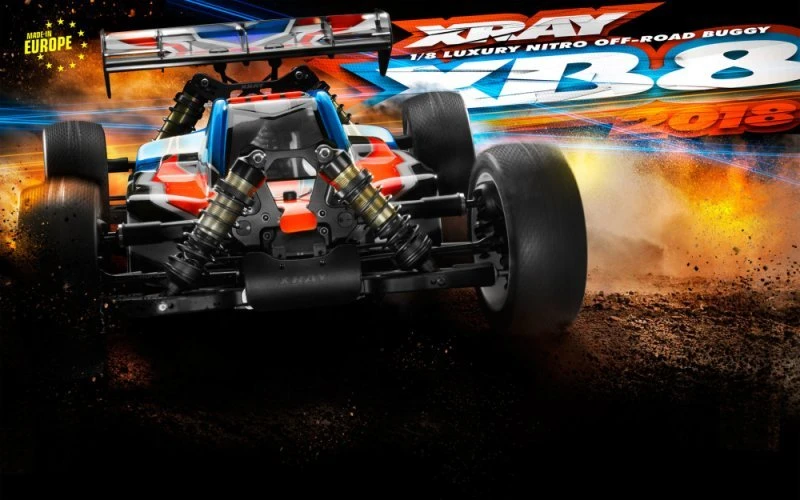

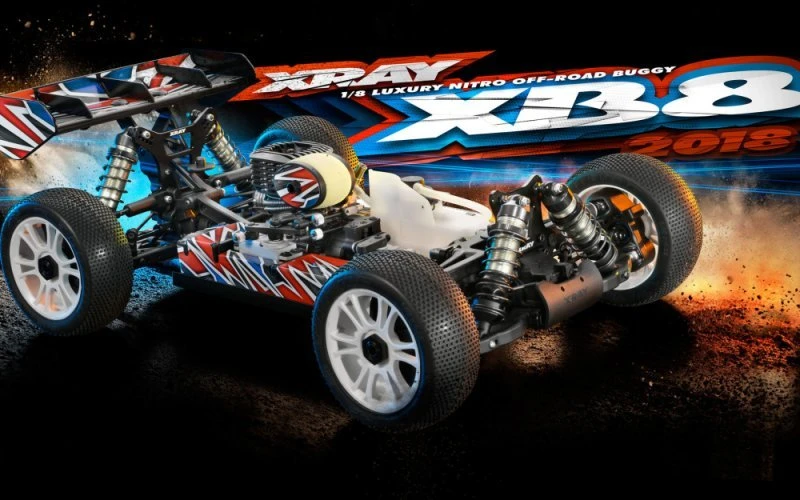

350013 XRAY XB8 2018 Specs

• Length: 500 mm
• Chassis length: 399.5 mm
• Wheelbase: 322~328 mm
• Width: 310 mm
• Weight: 1868 g
• Approximate running weight: 3205 g

Chassis

• Chassis: 3 mm CNC-machined Swiss 7075 T6 hardcoated aluminum
• Radio tray: Composite 1-piece
• Central diff upper deck: Composite
• Braces: Composite braces (front / rear)

Suspension

• Suspension: Pivot ball fully adjustable suspension
• Rear suspension: Lower H-arm with adjustable upper camber link
• Front suspension: Lower H-arm with adjustable upper camber link A-arm
• Rear upright: Composite with dual arm mounting and 2 lower roll center positions and upper aluminum plate with 3 upper roll center positions
• Shocks: Big-bore shocks with various shock pistons featuring Delrin pistons
• Shock towers: Front & rear 4.0mm alu

Drivetrain

• Type: Full-time shaft-drive 4WD with center differential
• Primary: Steel spur gear / clutchbell
• Drive shafts: HUDY Spring Steel™ universal drive shafts in front & CVD in rear
• Central shafts: HUDY Spring Steel™ CVD drive shafts
• Differentials: Sealed, 6 gear, silicone-filled
• Clutch: Aluminum 3-shoe
• Bearings: Rubber-sealed

Gearing

• Pinion: 14T front / rear
• Crown gear: 46T front / rear
• Clutchbell: 13T
• Spur gear: 46T

Body, Tires, Wheels & Misc.

• Body: XRAY XB8 High Speed ’16 body
• Tires: Not included
• Wheels: Not included, standard 17 mm hub
• Fuel tank: 123cc capacity with capacity-adjustment segments, with hypertonic tank lid and internal stone-type floating filter

Adjustment possibilities

• Standard adjustment: Camber, caster, toe-in, wheelbase, kick-up, anti-squat, lower & upper roll centers, kingpin, Ackermann, bump steer, Multi-Flex, weight balance
• Items not included
• Engine, Exhaust system, Electronics (Radio, Receiver, Servos, Batteries), Wheels, Tires, Tools, Wheel tool, Receiver battery, Fuel, Switch, Start box, Glow heater, Paint, Charger, Universal tool for all nuts and turnbuckles, Set-up book.
