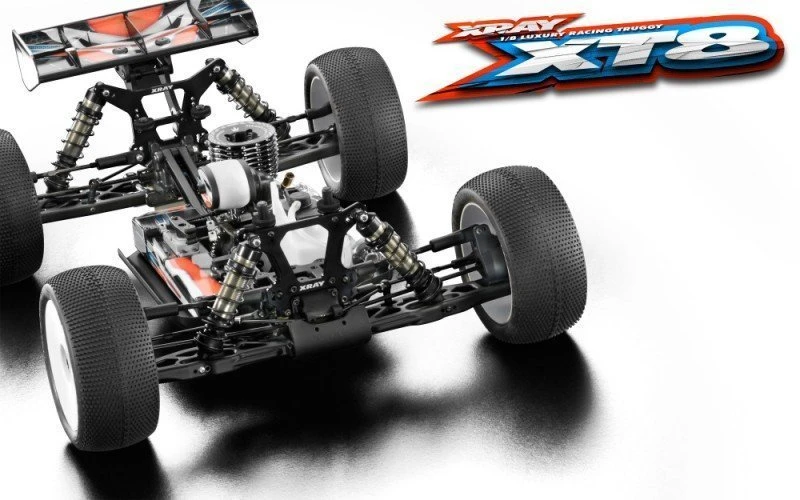

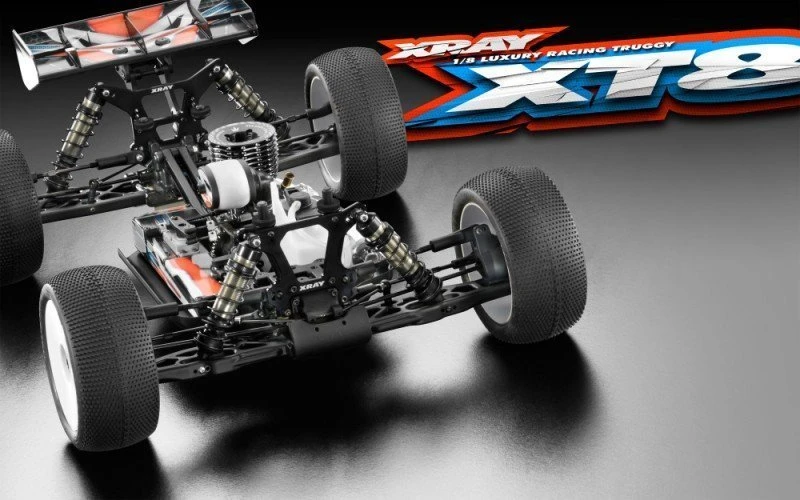

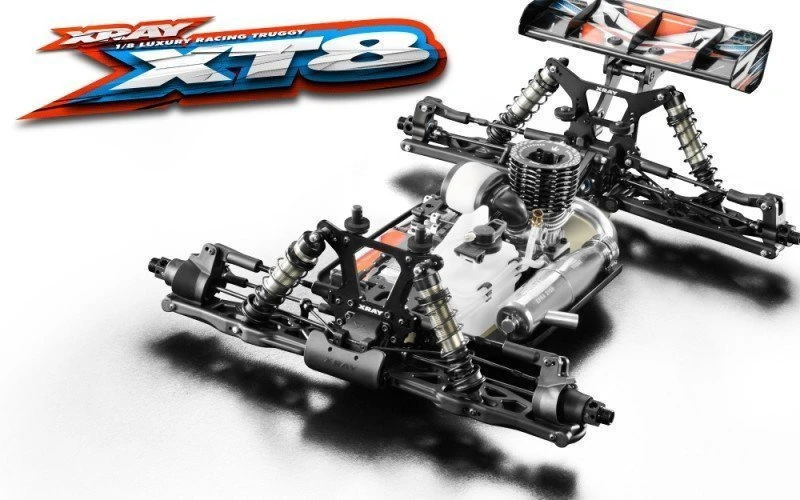

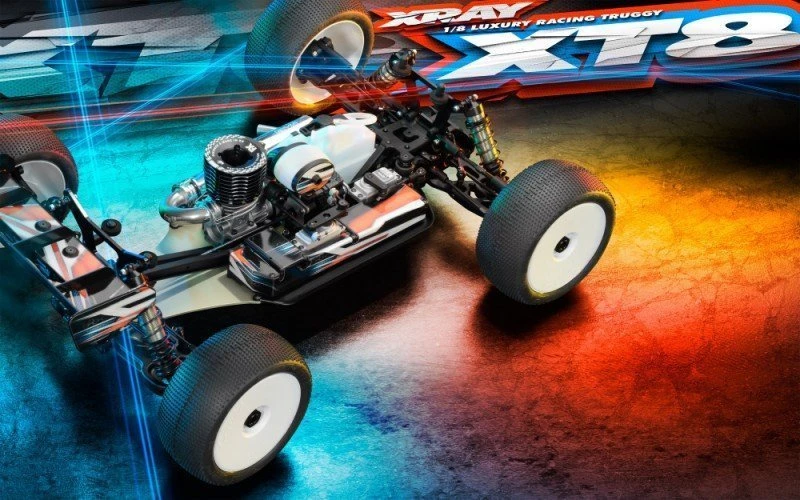

350203 XRAY XT8 2017 Specs – 1/8 Luxury Racing Truggy

• Length: 580 mm
• Chassis length: 459 mm
• Wheelbase: 380 ~ 388 mm
• Width: 399 mm
• Weight: 1902 g
• Approximate running weight: 3810 g

Chassis

• Chassis: 3mm CNC-machined Swiss 7075 T6 hardcoated aluminum
• Radio tray: Composite 1-piece
• Central diff upper deck: Machined laminated carbon graphite
• Braces: Composite braces (front / rear)

Suspension

• Suspension: Adjustable suspension with preset geometry
• Rear suspension: Lower H-arm with adjustable upper camber link A arms
• Front suspension: Zero Kingpin suspension with integrated adjustable caster
• Rear upright: Composite with dual arm mounting and 3 roll center positions
• Shocks: Big-bore shocks with various shock pistons featuring Delrin pistons
• Shock towers: Front & rear 4.0mm alu

Drivetrain

• Type: Full-time shaft-drive 4WD with center differential
• Primary: Steel spur gear / clutchbell
• Drive shafts: HUDY Spring Steel™ universal drive shafts
• Central shafts: HUDY Spring Steel™ CVD drive shafts
• Differentials: Sealed, 6 gear, silicone-filled
• Clutch: Aluminum 3-shoe
• Bearings: Rubber-sealed

Gearing

• Pinion: 10T front / rear
• Crown gear: 43T front / rear
• Clutchbell: 13T
• Spur gear: 50T

Body, Tires, Wheels & Misc.

• Body: Not Included
• Tires: Not included
• Wheels: Not included, standard 17mm hub
• Fuel tank: 150cc capacity with capacity-adjustment segments, with hypertonic tank lid and internal stone-type floating filter

Adjustment possibilities

• Standard adjustment: Camber, caster, toe-in, wheelbase, kick-up, anti-squat, lower & upper roll centers, kingpin, Ackermann, bump steer, Multi-Flex, weight balance

Items not included

•   Engine, Exhaust system, Electronics (Radio, Receiver, Servos, Batteries), Wheels, Tires, Body, Tools, Wheel tool, Receiver battery, Fuel, Switch, Start box, Glow heater, Paint, Charger, Universal tool for all nuts and turnbuckles, Set-up book.
