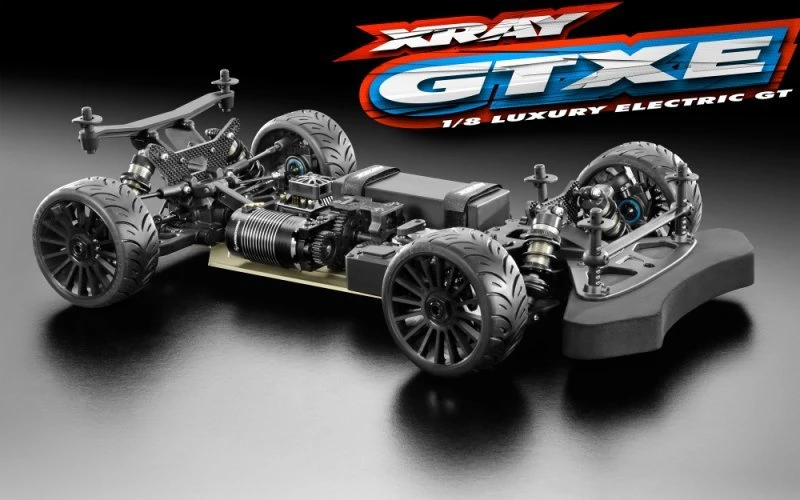

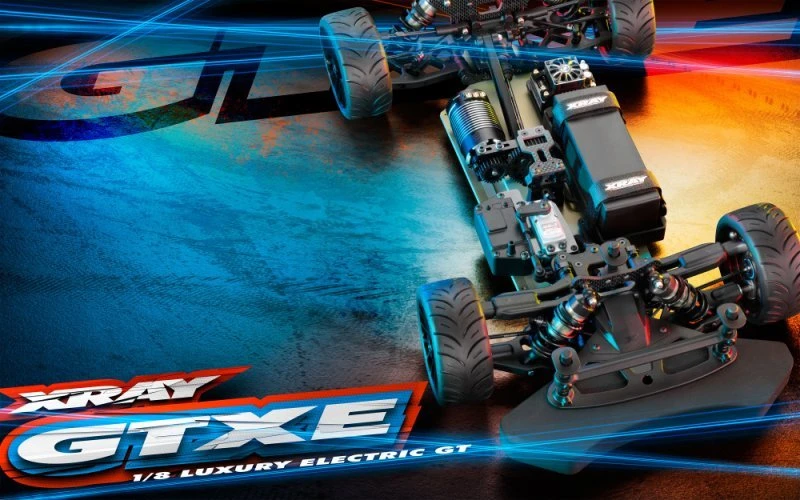

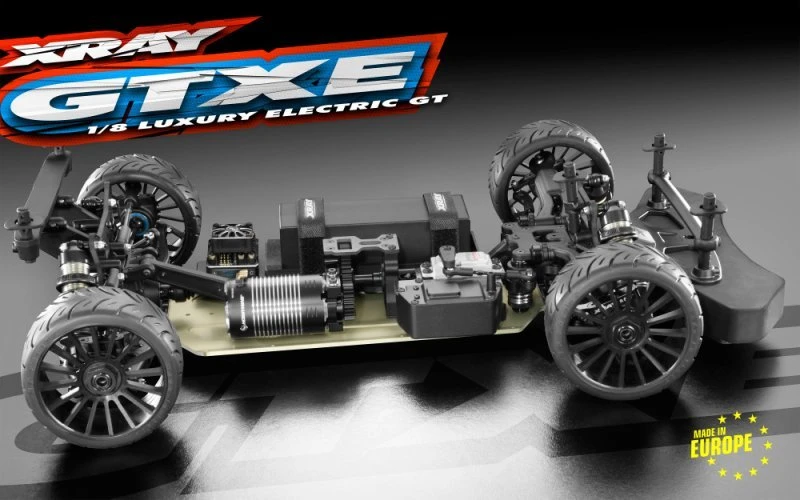

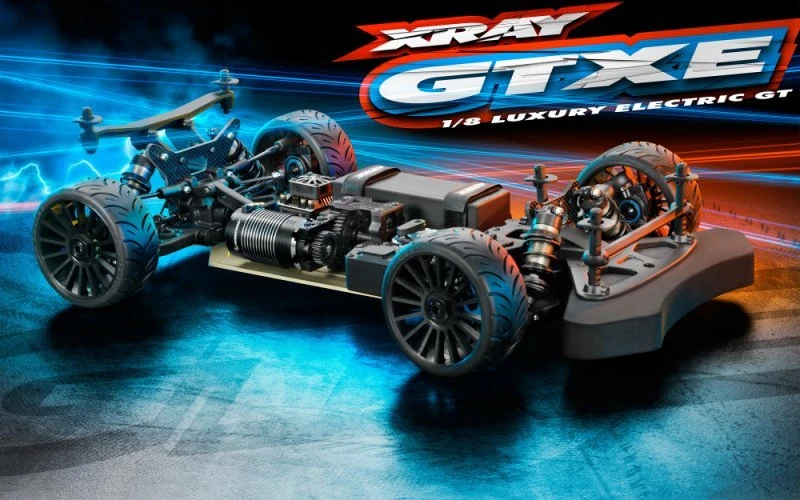

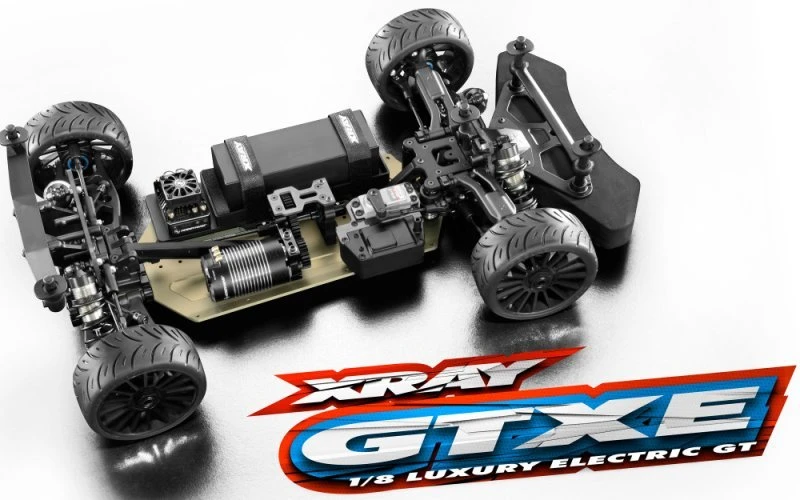

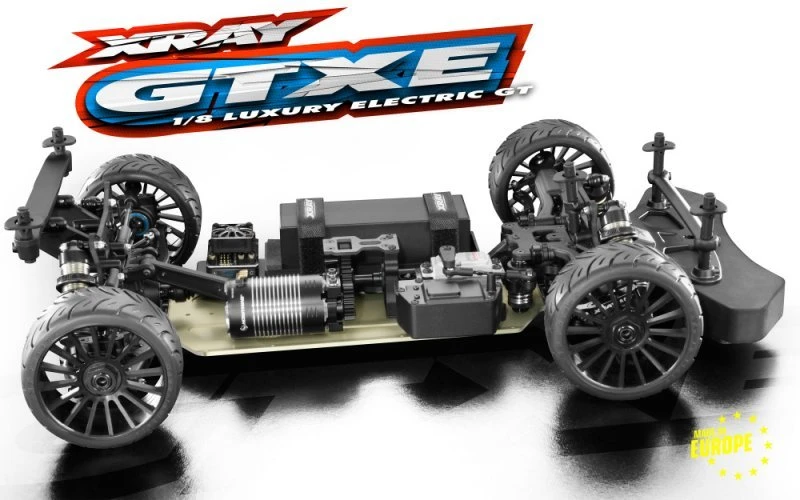

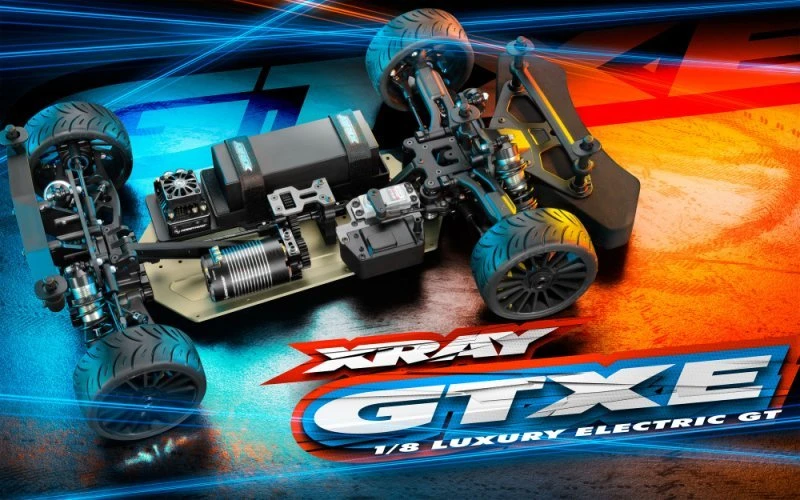

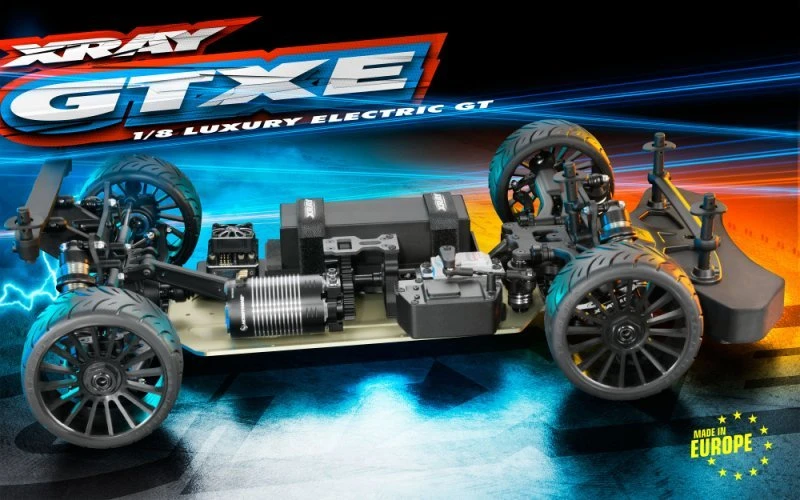

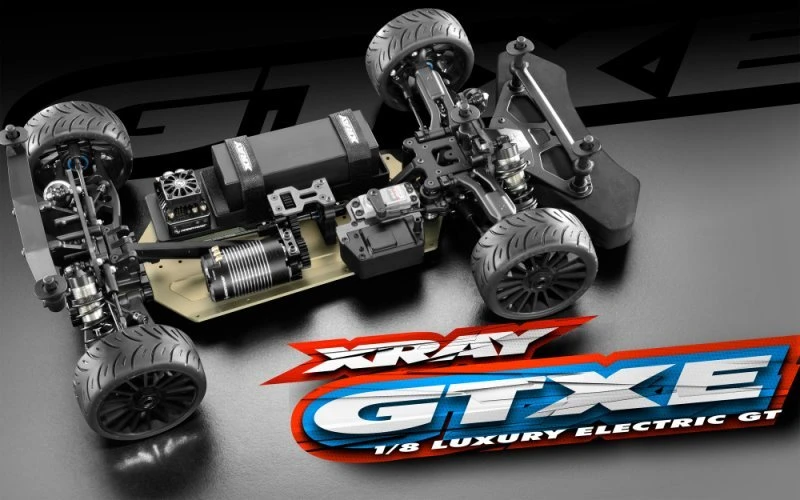

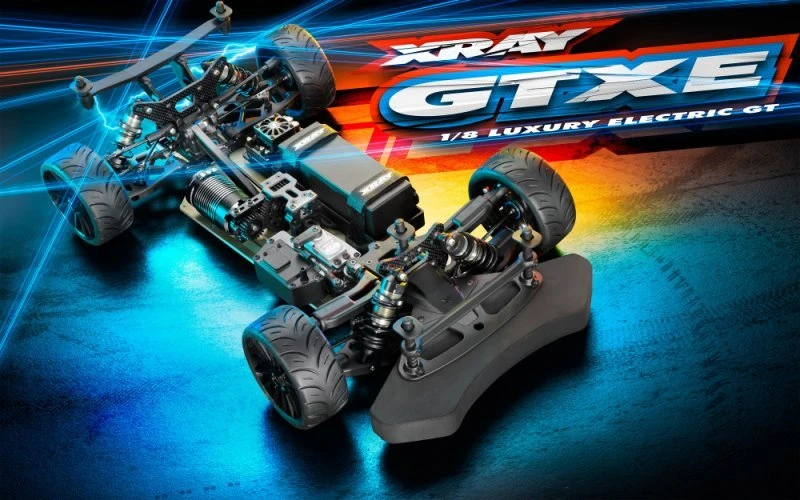

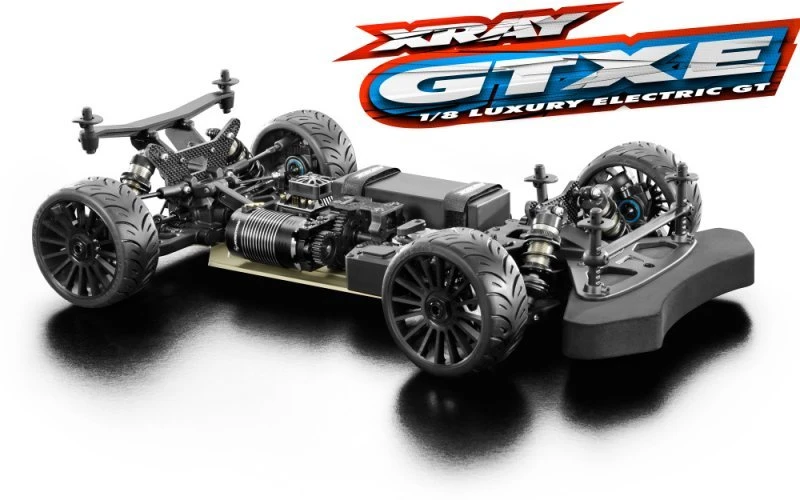

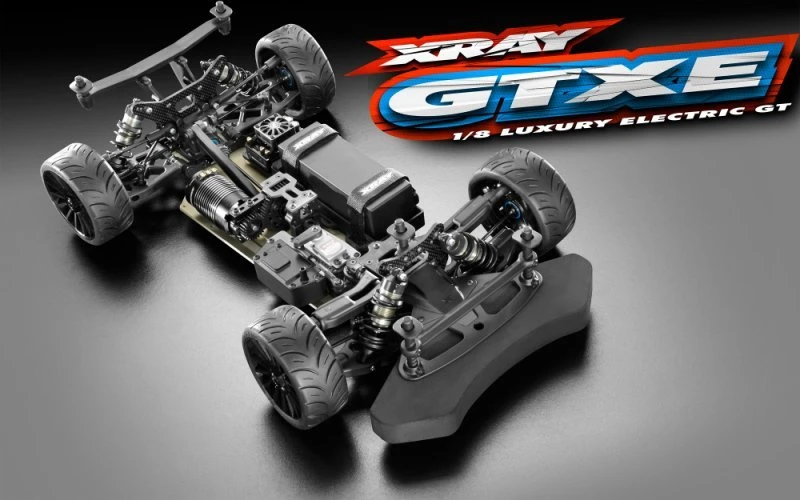

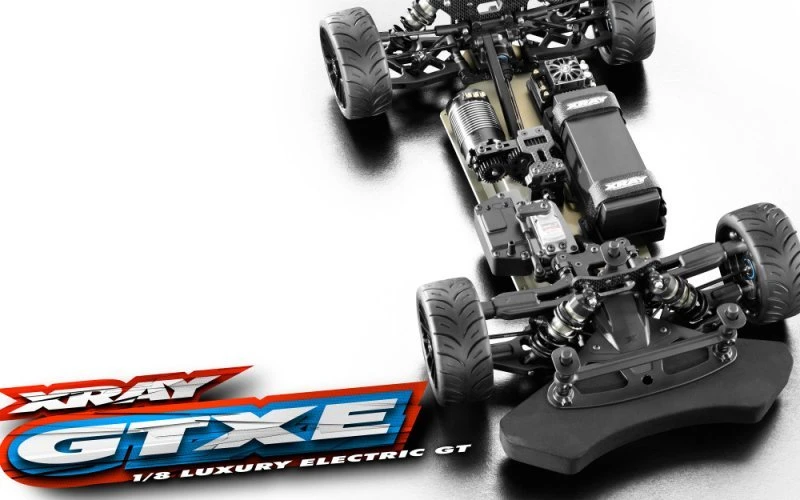

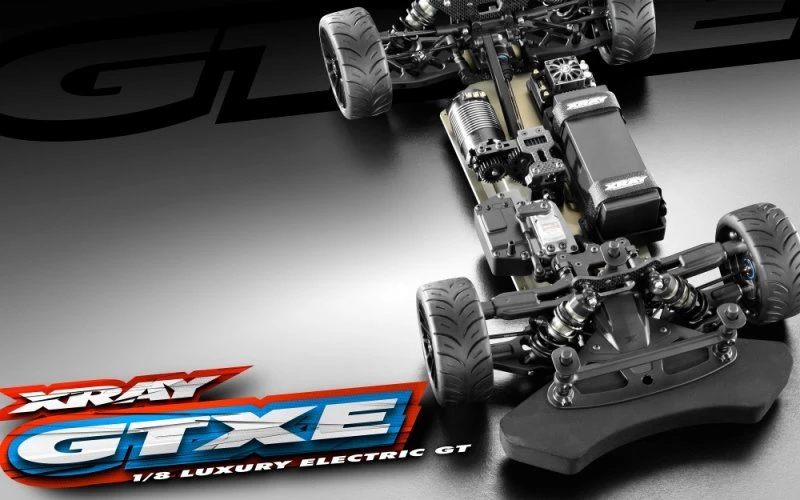

350600 XRAY GTXE

• Length: 510 mm
• Chassis length: 400 mm
• Wheelbase: 318 ~ 326 mm
• Width: 300 mm
• Weight: 2155 g
• Approximate running weight: 3320 g

Chassis

• Chassis: 3 mm CNC-machined Swiss 7075 T6 hardcoated aluminum
• Radio tray: CNC-machined 2.2 mm graphite
• Radio case: Composite
• Front upper deck: CNC-machined 2.5 mm graphite
• Central diff upper deck: CNC-machined 2.5 mm graphite
• Braces: Composite braces (front / rear)

Suspension

• Suspension: XPBS™ fully adjustable suspension
• Rear suspension: Lower H-arm with adjustable upper camber link A arms
• Front suspension: Zero kingpin suspension ball suspension, 0-7° kingpin plate
• Rear upright: Composite with dual arm mounting and 2 lower roll center positions and upper aluminum plate with 4 upper roll center positions and adjustable roll center height with adjustable shims
• Shocks: Big-bore shocks with various shock pistons featuring Delrin™ pistons
• Shock towers: Front 3.5mm graphite, rear 3.5mm graphite

Drivetrain

• Type: Full-time shaft-drive 4WD
• Primary: Steel spur gear / pinion
• Drive shafts: HUDY Spring Steel™ CVD drive shafts
• Central shafts: HUDY Spring Steel™ CVD drive shafts
• Differentials: Sealed, 6 gear, silicone-filled
• Bearings: Rubber-sealed

Gearing

• Pinion: 14T front / rear
• Crown gear: 46T front / rear
• Pinion gear: Hardcoated aluminum 19T-24T
• Spur gear: Composite 48T, 49T, 50T

Body, Tires, Wheels & Misc

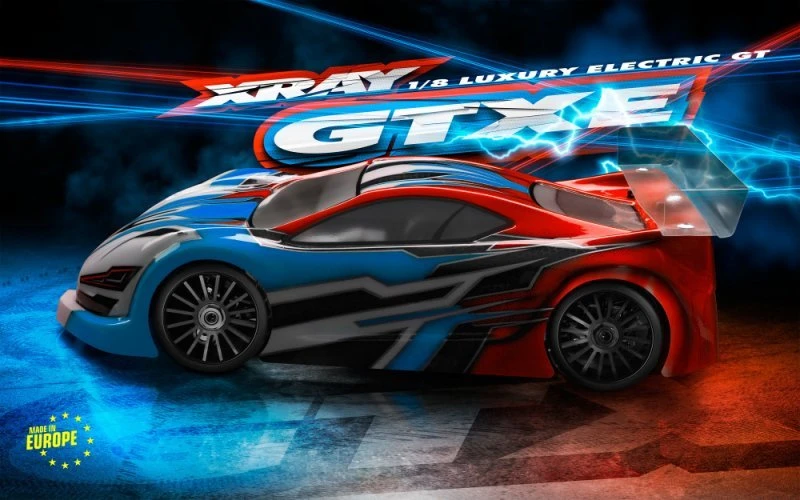

• Body: Optional #359730 GT Body not included
• Tires: Not included
• Wheels Not included

Adjustment possibilities

• Standard adjustment: Camber, caster, toe-in, wheelbase, kick-up, anti-squat, lower & upper roll centers, kingpin, Ackermann, bump steer, Multi-Flex, weight balance

Items Not Included

• Electronics (Radio, Receiver, Servo, Batteries, Speedo), Wheels, Tires, Tools, Wheel tool, , , Paint, Charger, Universal tool for all nuts and turnbuckles, Set-up book
