370006 XRAY X12 2017 Specs – 1/12 Pan Car

• Class: 1/12 electric pan car
• Width: Adjustable 167mm +/- 2mm front, 169mm rear
• Lenght: 264mm (varies depending on rear tires used)
• Wheelbase: 201 +/-0.5mm
• Weight: 202 g
• Ready-to-run weight: 840 g – incl. BL system (varies depending on equipment used)

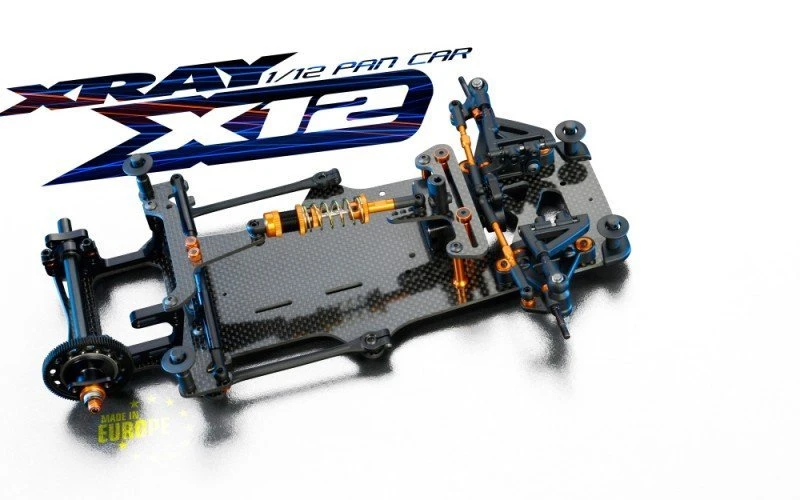

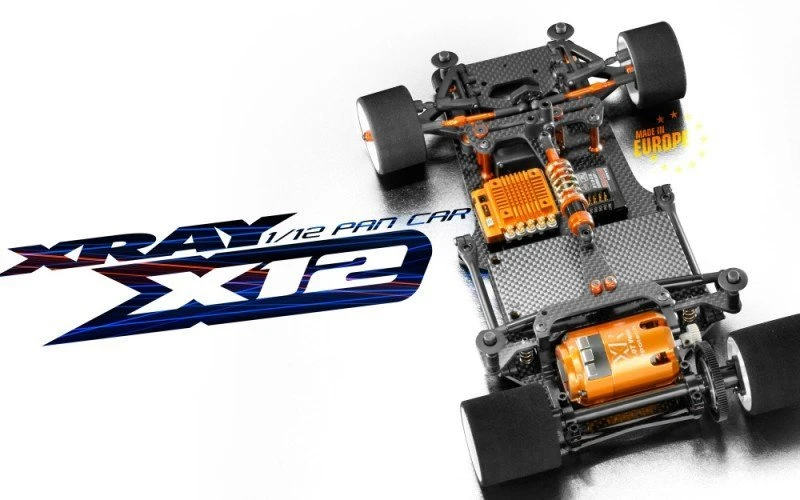

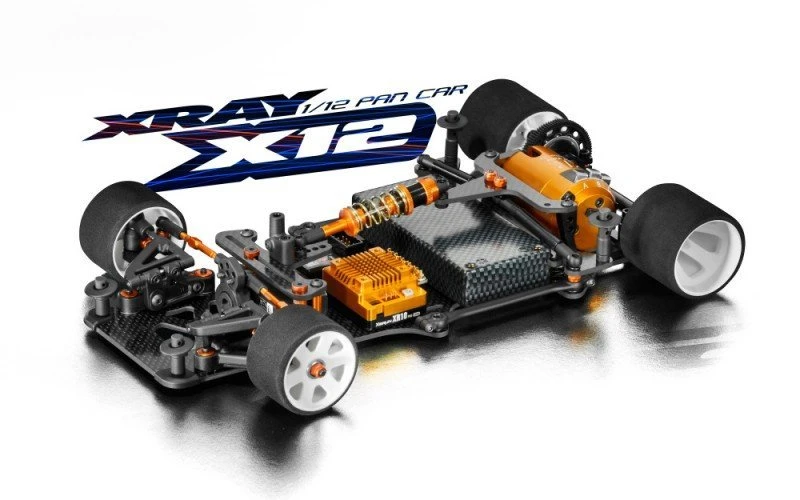

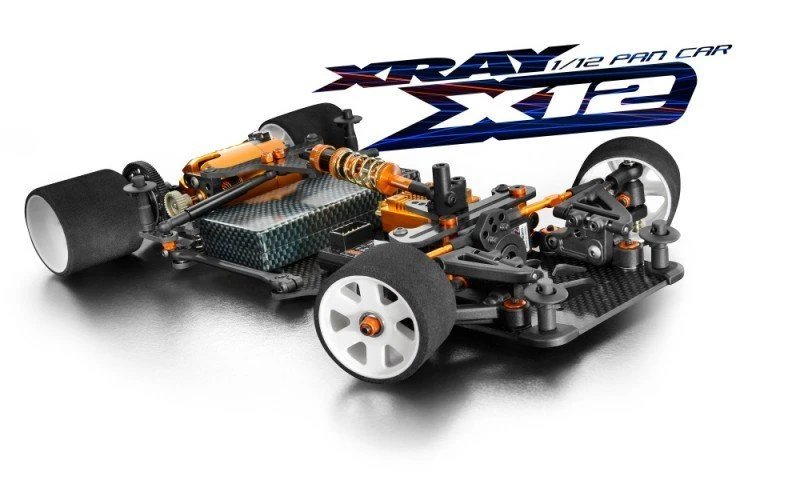

Chassis

• Chassis: 2.5 mm carbon fiber, CNC machined
• Body: Not included, uses 1/12 pancar type

Drivetrain

• Type: 2WD direct drive to rear axle
• Rear Axle: Steel shaft with ball differential
• Primary: Spur/pinion
• Bearings: High-speed ball-bearings (10)

Suspension

• Front: Spring-supported, kingpin-style front suspension with composite upper & lower suspension arms and steering blocks
• Rear: Articulating rear motor POD adjustable via pivot-ball links, controlled by rear shock absorber.
• Rear Shock: Central adjustable oil-filled shock absorber

Geometry

• Ride Height: Adjustable front + rear
• Camber: Adjustable front
• Front Caster (Static): 1–14.5° static adjustable static caster
• Front Caster (Reactive): 2.5–7.5° adjustable reactive caster
• Track-width: Adjustable front and rear
• Toe: Adjustable front
• Downstop: Adjustable rear
• Ackermann: Adjustable with shims
• Steering: Direct linkage between steering servo saver and steering blocks
• Balance: Front/rear weight balance adjustable via battery position

Other

• Wheels: Not included
• Tires: Not included
• Instructions: Full colour instruction manual
• Set-up book: Printed version not included. Latest full-color Set-up Book (16 pages) can be downloaded from XRAY website. Set-up Book shows previous XRAY models in photographs contained within it, however the methodology and set-up theory are the same for all 1/12 pan cars
• Packaging: Carton box with vinyl bags with parts
• Additionally included: HUDY Diff Grease, Authentication Certificate, parts list & exploded view, decals, oils
• Not included: Motor, batteries, speed controller, tires, body, steering servo, radio equipment, tools
