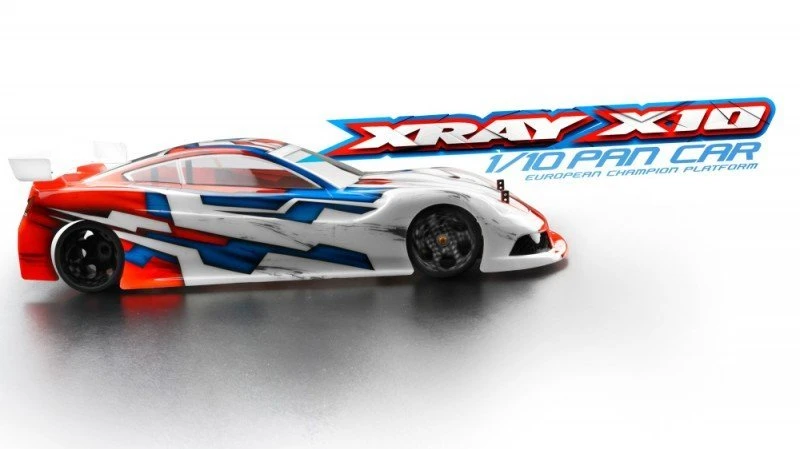

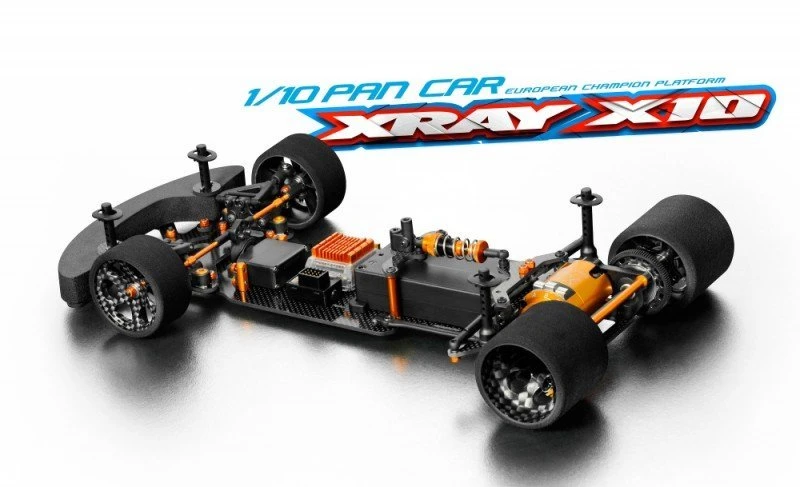

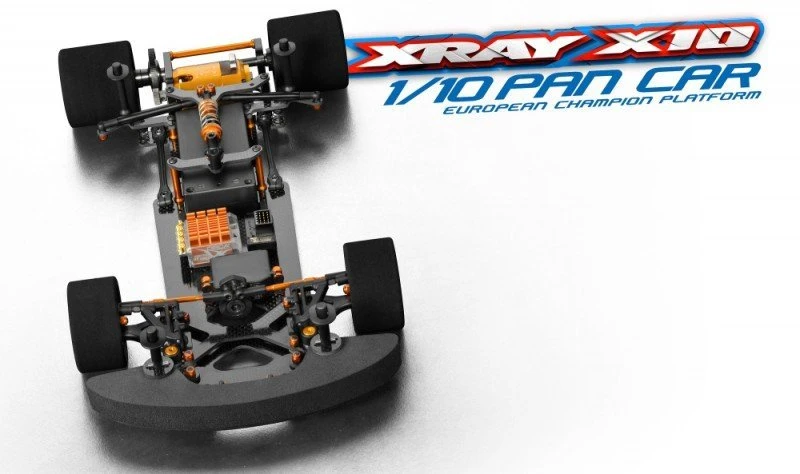

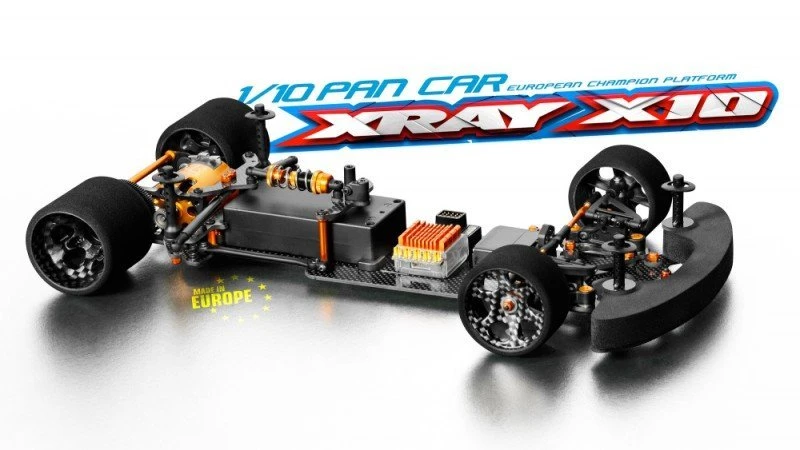

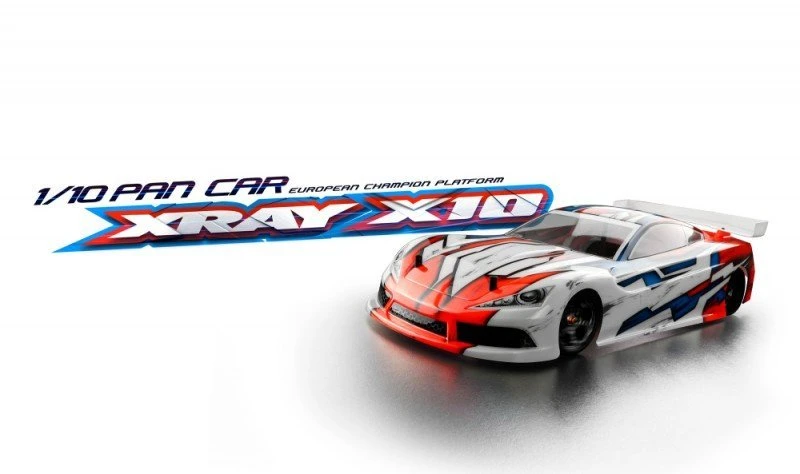

370503 XRAY X10 2016 Specs – 1/10 Pan Car GT

• Class: 1/10 electric pancar
• Width: Adjustable 190mm front, 195mm rear
• Length: depends on rear tires used
• Wheelbase: 255 +/- 3mm
• Weight: 280g
• Ready-to-run weight: 1050g – incl. BL system (varies depending on equipment used)

Chassis

• Chassis: 2.5mm carbon fiber, CNC machined
• Body: Not included, uses 1/10 pancar type

Drivetrain

• Type: 2WD direct drive to rear axle
• Rear Axle: Steel shaft with ball differential
• Primary: Spur/pinion
• Bearings: High-speed ball-bearings (10)

Suspension

• Front: Spring-supported, kingpin-style front suspension with composite upper & lower suspension arms and steering blocks
• Rear: Conventional rear pod, adjustable via pivot-ball links, controlled by side tubes
• Rear Shock: Central adjustable oil-filled shock absorber

Geometry

• Ride Height: Adjustable front + rear
• Camber: Adjustable front
• Front Caster (Static): 1–14.5° static adjustable static caster
• Front Caster (Reactive): 2.5–7.5° adjustable reactive caster
• Track-width: Adjustable front + rear
• Toe: Adjustable front
• Downstop: Adjustable rear
• Ackermann: Adjustable with shims and servo position
• Steering: Direct linkage between steering servo saver and steering blocks
• Balance: Front/rear weight balance adjustable via battery position

Other

• Wheels: Not included
• Tires: Not included
• Instructions: Full colour instruction manual
• Set-up book: 2-color Set-up Book (16 pages) – not included
