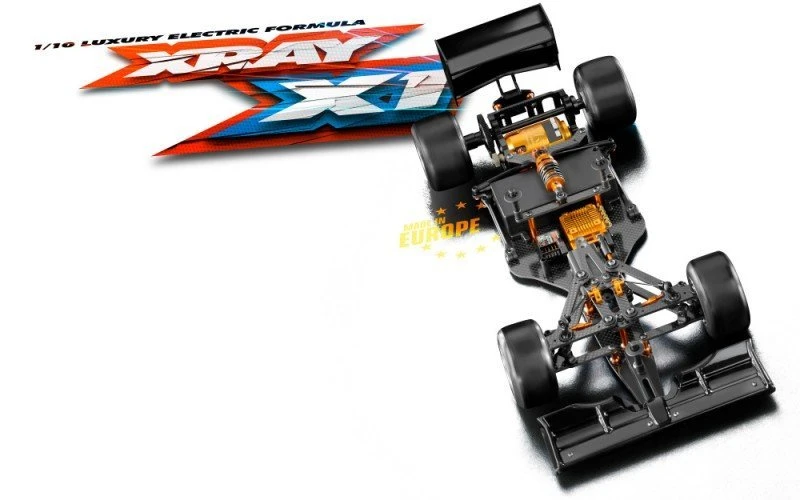

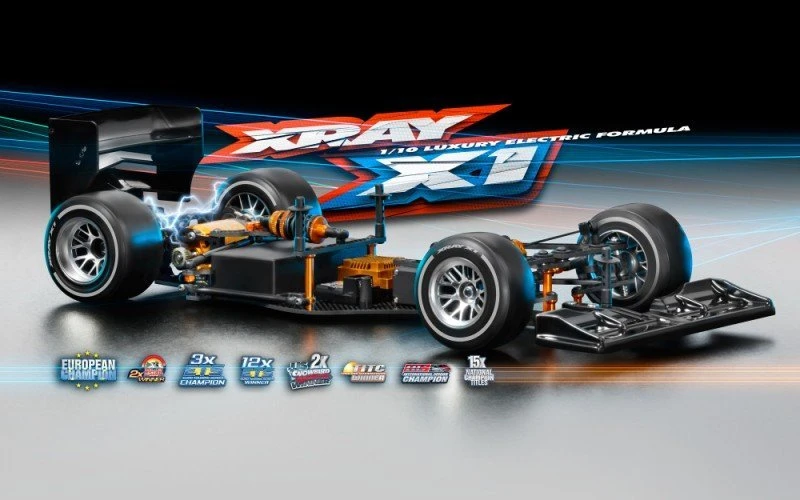

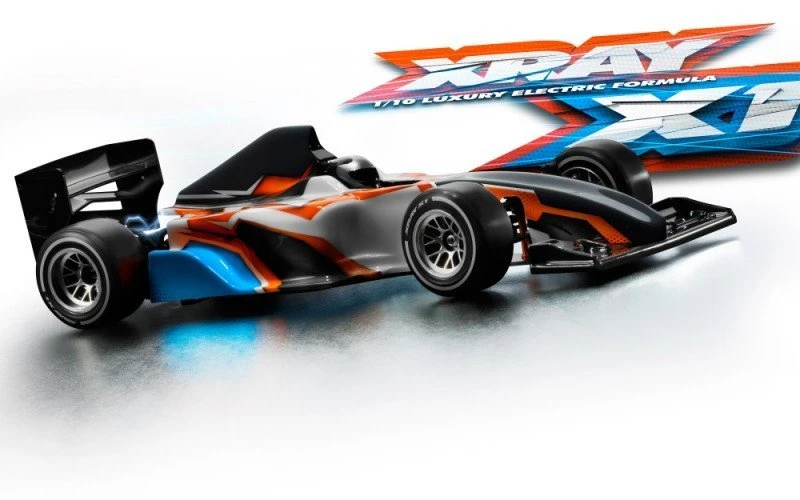

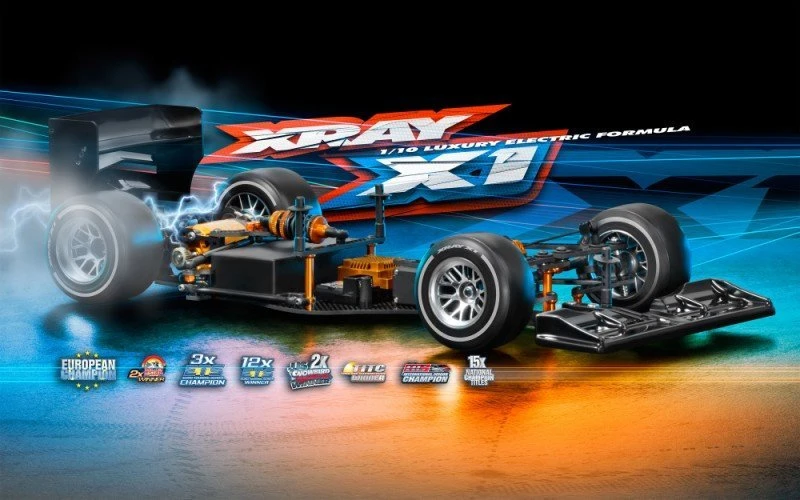

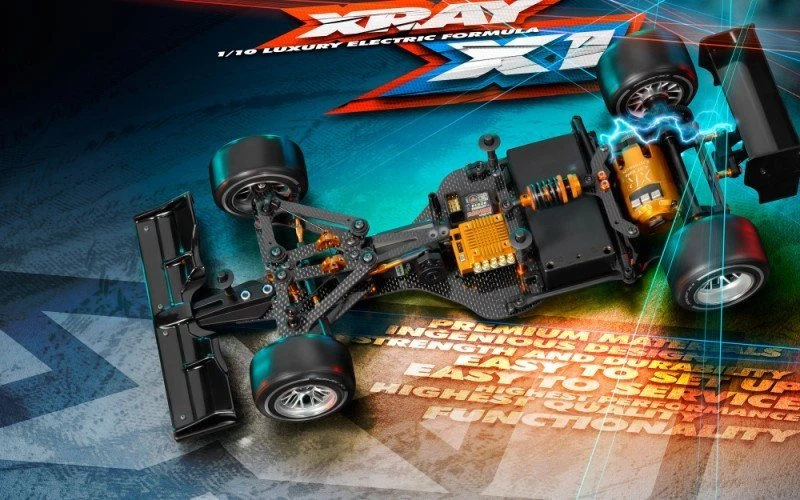

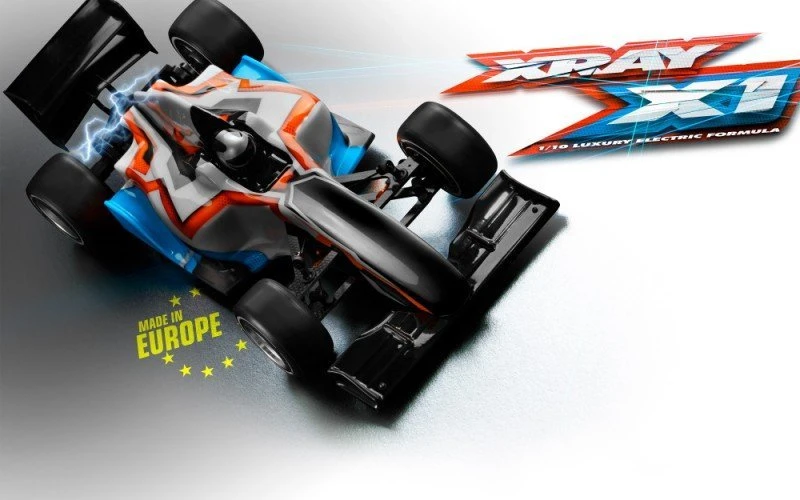

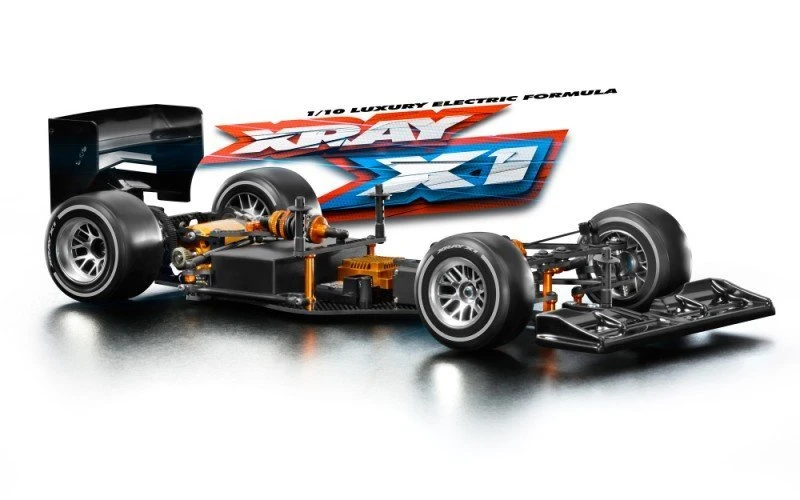

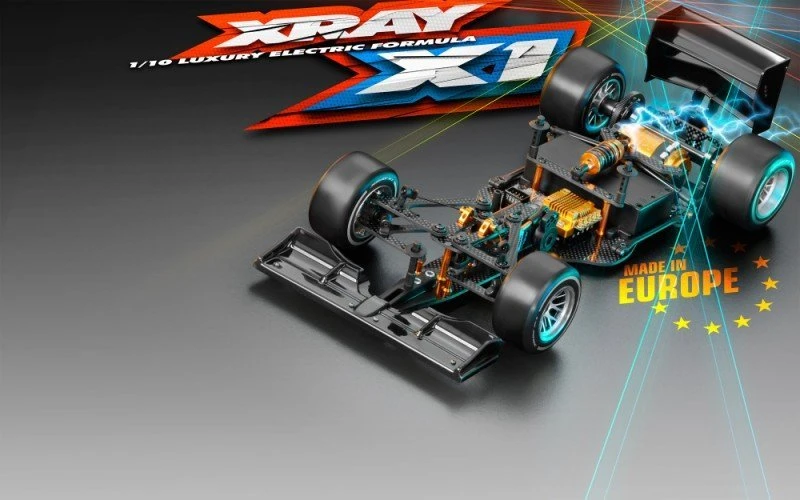

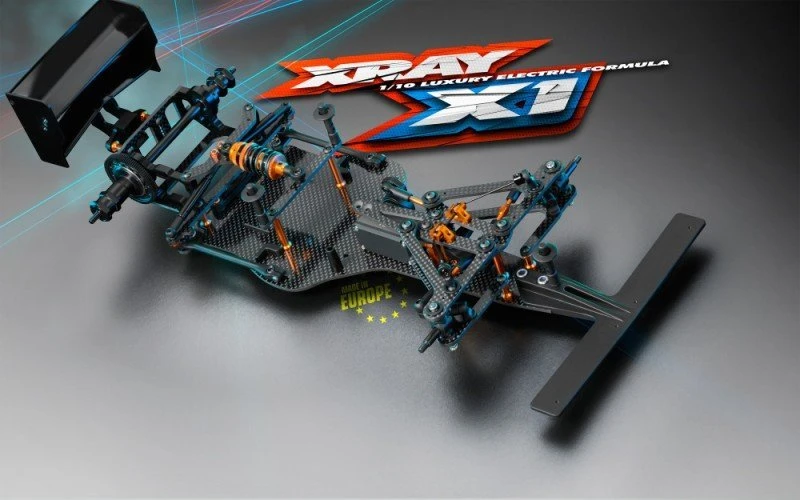

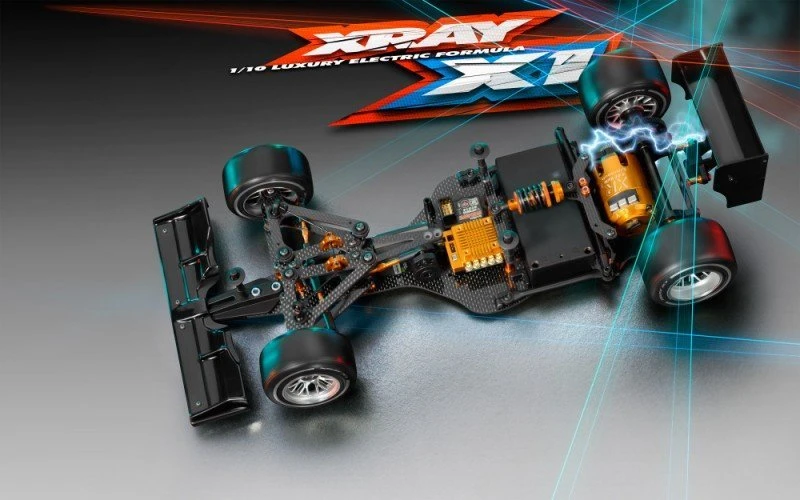

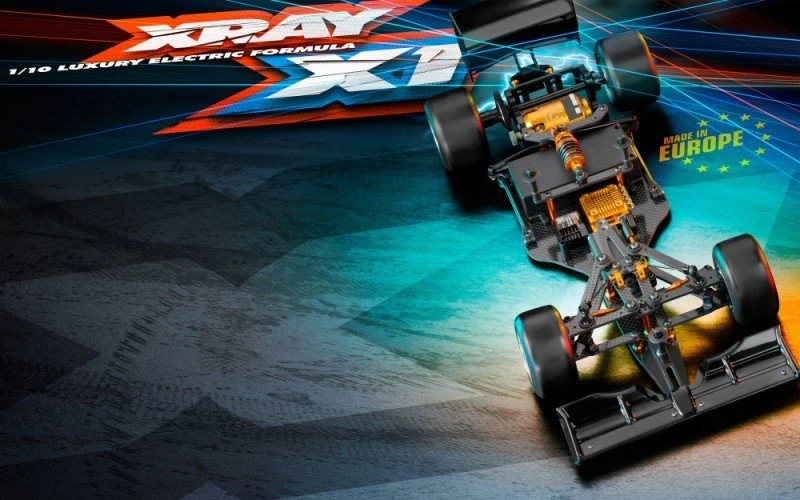

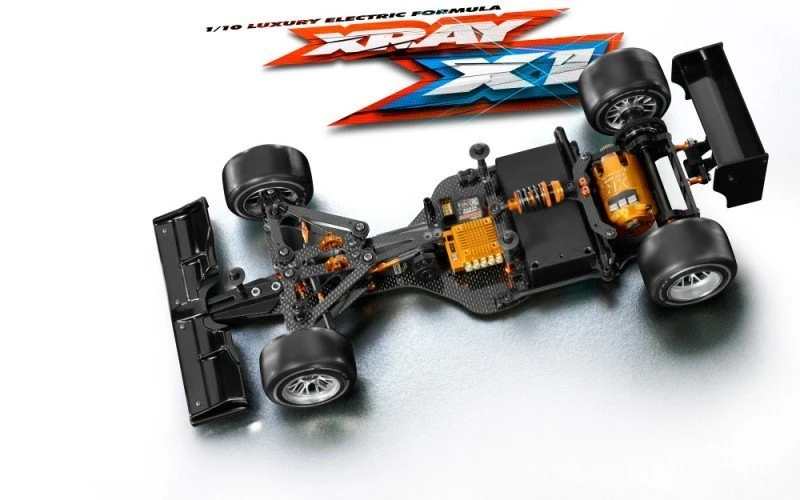

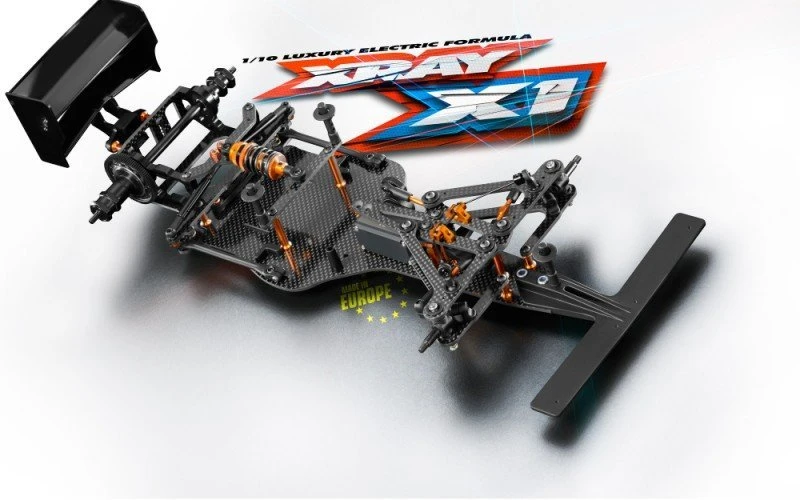

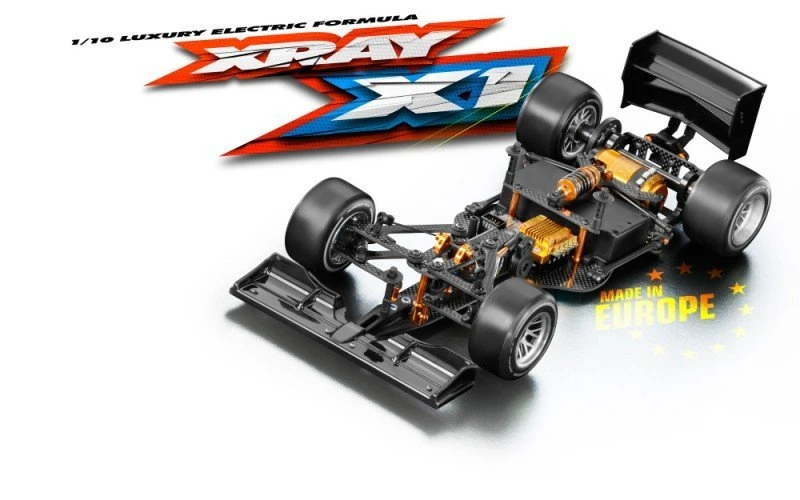

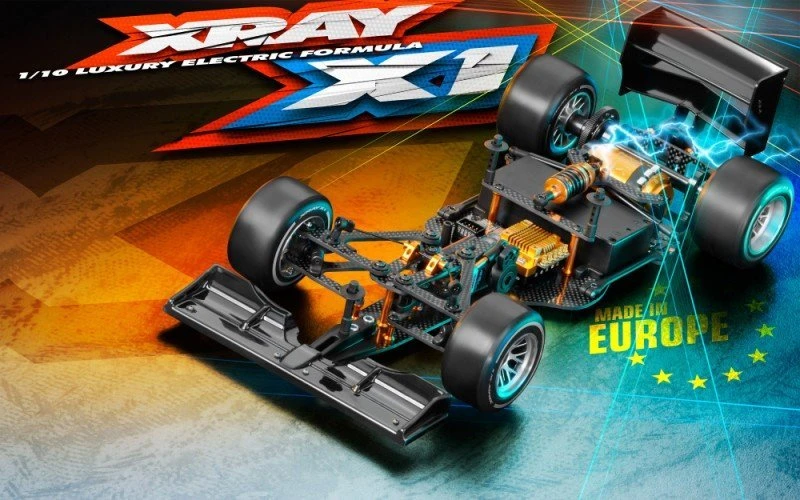

370702 XRAY X1 2017 Specs

• Class: 1/10 formula
• Width: Adjustable 180mm front, 185mm rear (depends on tires used)
• Lenght: 410 mm
• Wheelbase: 264 mm
• Weight: 375 g
• Ready-to-run weight: 985 g (varies depending on equipment used)

Chassis

• Chassis: 2.5 mm carbon fiber, CNC machined
• Body: XRAY X1 1/10 formula type

Drivetrain

• Type: 2WD direct drive to rear axle
• Rear Axle: Steel shaft with ball differential
• Primary: Spur/pinion
• Bearings: High-speed ball-bearings (13)

Suspension

• Front: Spring-supported, kingpin-style front suspension with composite steering blocks and graphite upper & lower suspension arms
• Rear: Conventional rear pod, adjustable via pivot-ball links, controlled by side tubes
• Rear Shock: Central adjustable oil-filled shock absorber

Geometry

• Ride Height: Adjustable front + rear
• Camber: Adjustable front
• Front Caster: 3–12° adjustable caster
• Track-width: Adjustable front + rear
• Toe: Adjustable front
• Downstop: adjustable front + rear
• Anti-roll bar: 1.2 mm front
• Ackermann: adjustable with servo saver arm and steering block
• Steering: Direct linkage between steering arm and steering blocks
• Balance: Front/rear weight balance adjustable via battery position

Other

• Wheels: Not included
• Tires: Not included
• Instructions: Full colour instruction manual
• Packaging: Carton box with vinyl bags with parts
• Additionally included: Lexan Formula body & front wing, HUDY Diff Grease, Authentication Certificate, parts list & exploded view, shock oil
• Not included: Radio system (transmitter and receiver), steering servo, motor, pinion gear, battery pack, speed controller, charger, wheels, tires, inserts, high-strength fiber tape, double-sided tape, CA glue, bearing oil, tools
