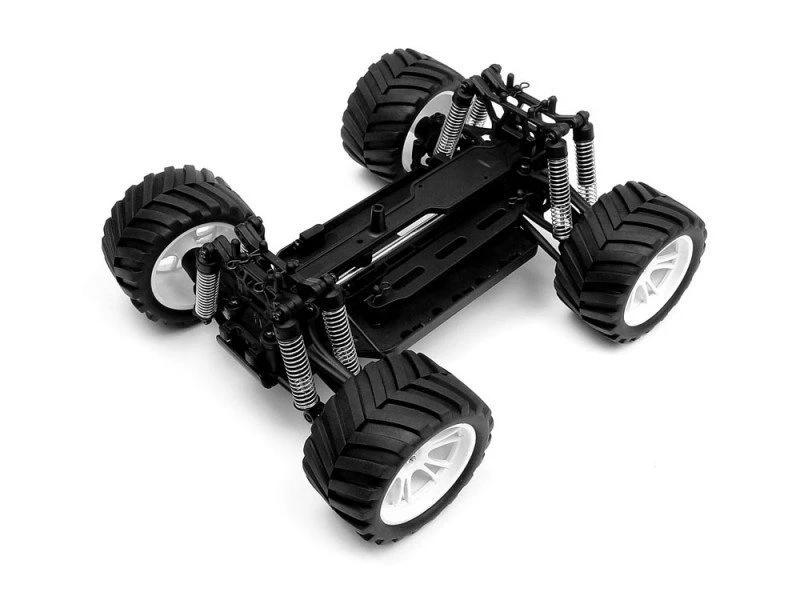

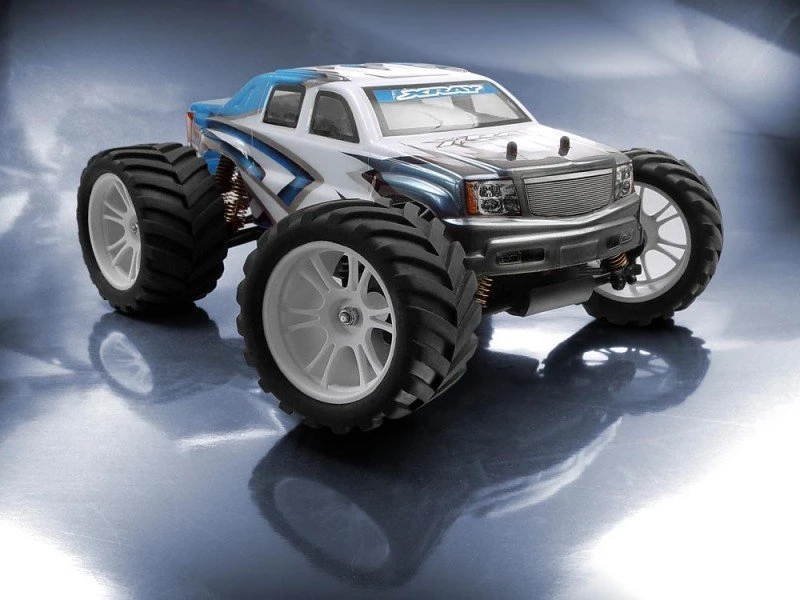

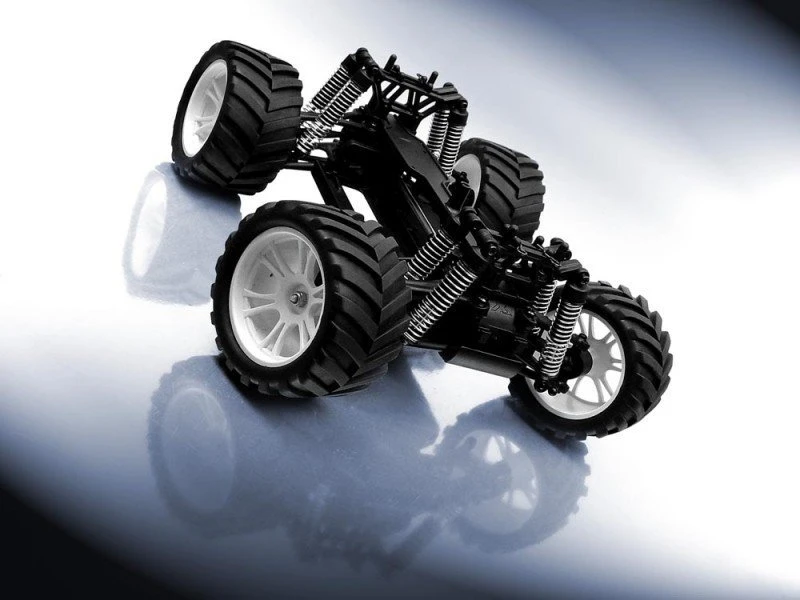

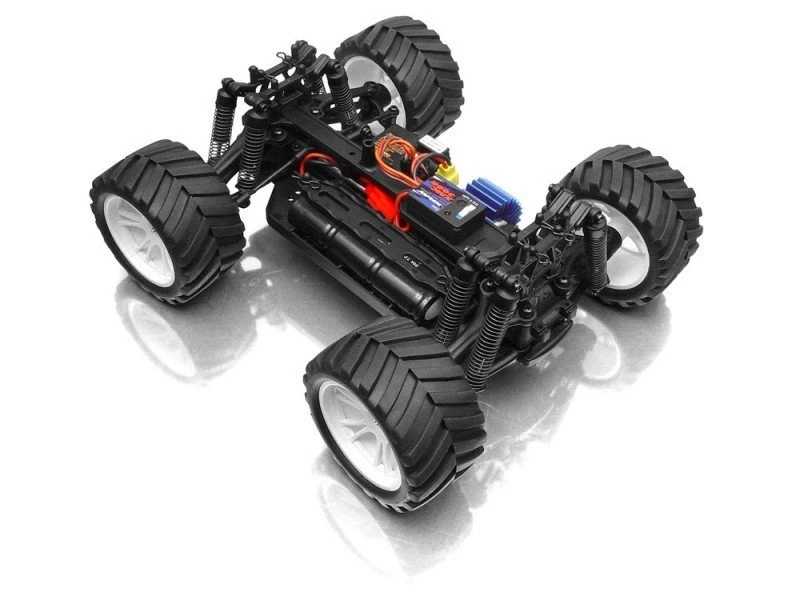

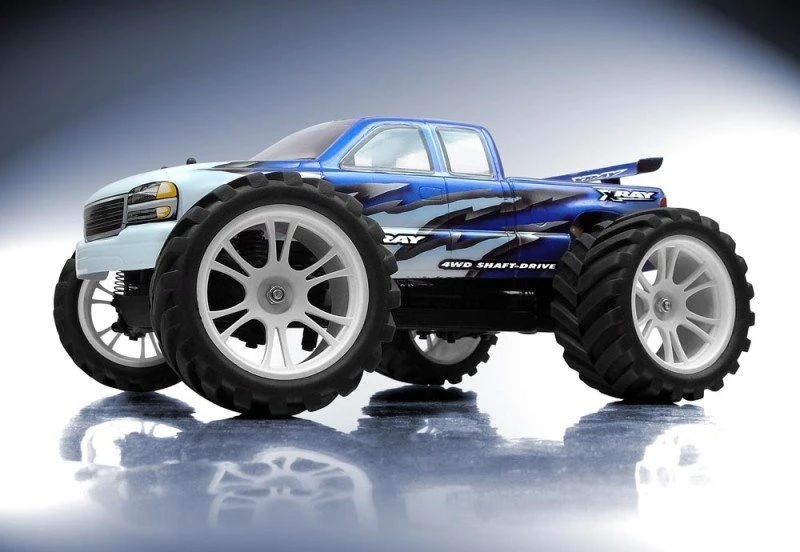

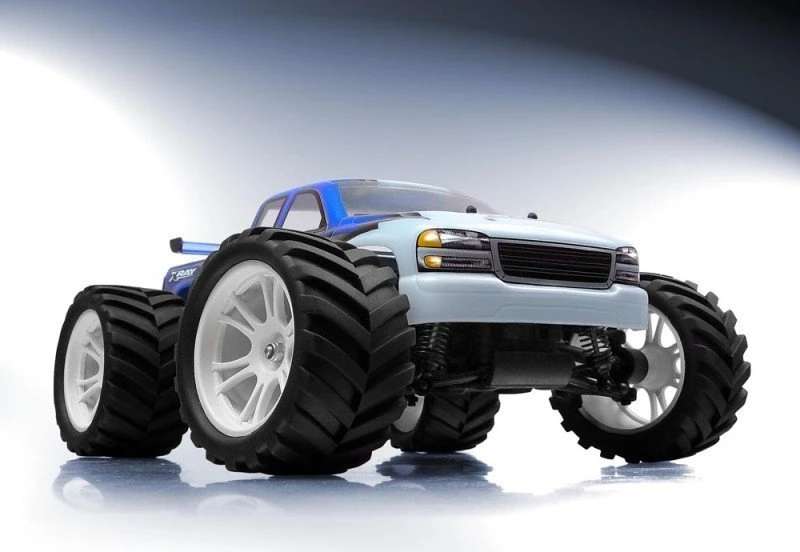

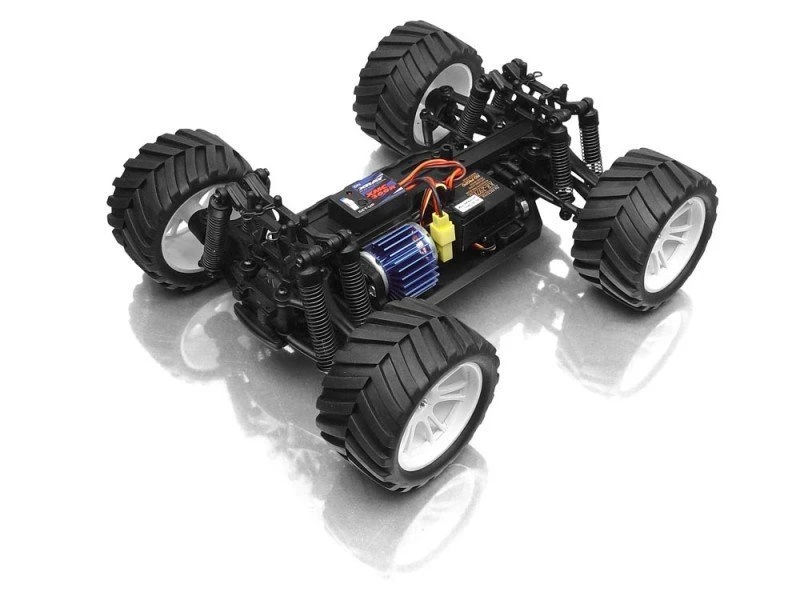

380600 XRAY M18MT – 4WD Shaft Drive 1/18 Micro Monster Truck

• Class: 1/18 electric micro monster truck
• Front Width: 195mm
• Rear Width: 195mm
• Length: 222 mm
• Wheelbase: 150 mm
• Weight: 395g
• Ready to run weight: 585 g

Chassis:

• Chassis: composite CAD-designed chassis
• Upper deck: composite upper deck
• Body: 150 mm 1/18 micro monster truck body (included)

Drivetrain:

• Type: shaft-drive 4WD
• Drivetrain: aluminum main driveshaft
• Primary drive: pinion/spur
• Drive ratio: 1:2.5
• Drive shafts: composite front + rear
• Differentials: composite ball differentials – adjustable front + rear
• Bearings: 22 high-speed ball-bearings

Suspension:

• Front: fully independent
• Rear: fully independent
• Dampening: oil-filled coil-over shocks

Geometry:

• Camber: front/rear: -2° (preset)
• Caster: 12° (preset)
• Front Toe: toe-out 0.5° (preset)
• Rear Toe: toe-in 3.5° (preset)
• Anti-roll bars: not included
• Wheelbase: 150 mm

Others:

• Wheels: XRAY micro monster truck wheels
• Tires: XRAY micro monster truck tires with Chevron pattern
• Instructions: full-color manual with 3D graphics
• Packing: carton box with 8 vinyl bags with parts
• Additionals included: certificate, parts list, decals, Hudy 3.0mm screwdriver, XRAY catalog
• Not included: radio system (transmitter and receiver), steering servo, ESC, motor, battery pack, battery charger, CA Glue and lexan paint
