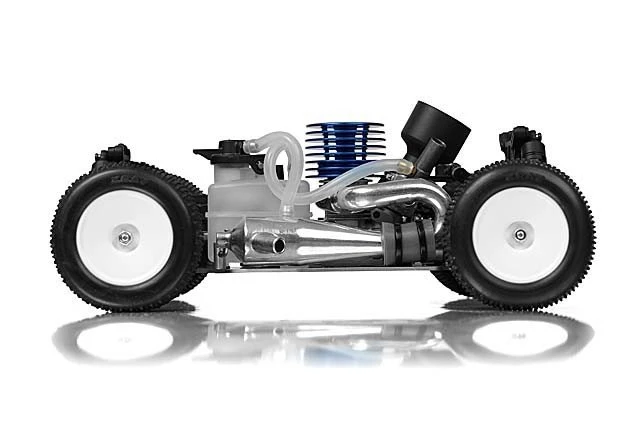

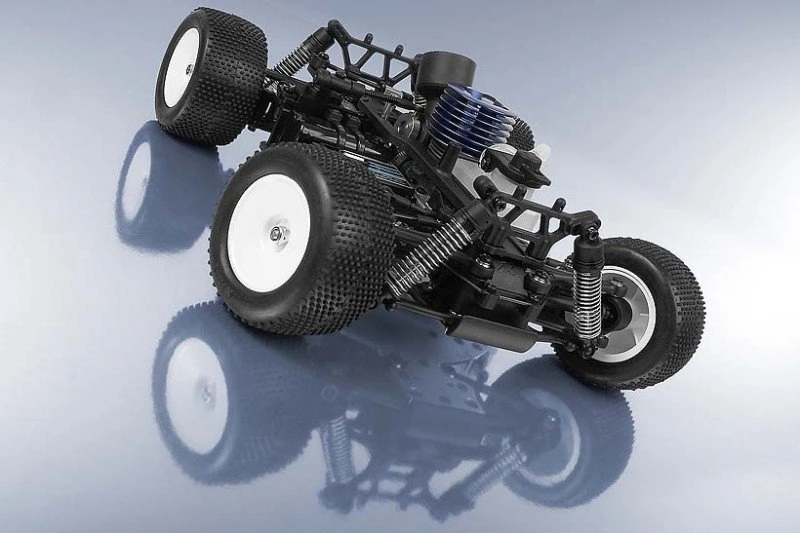

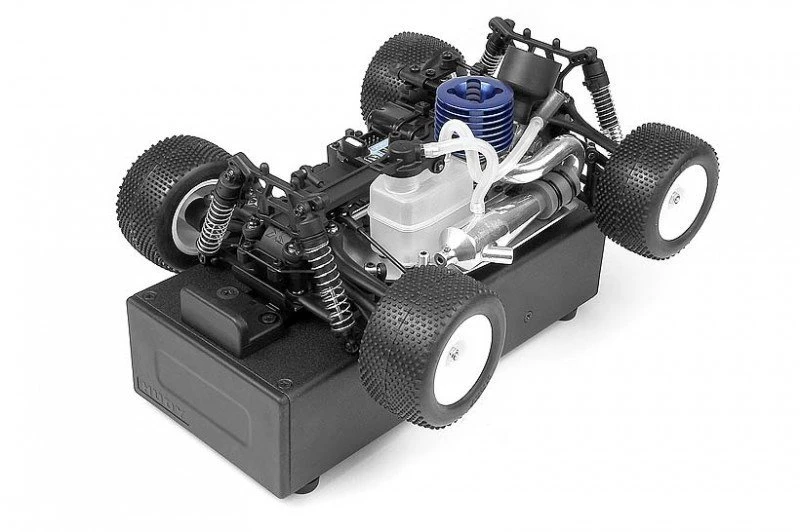

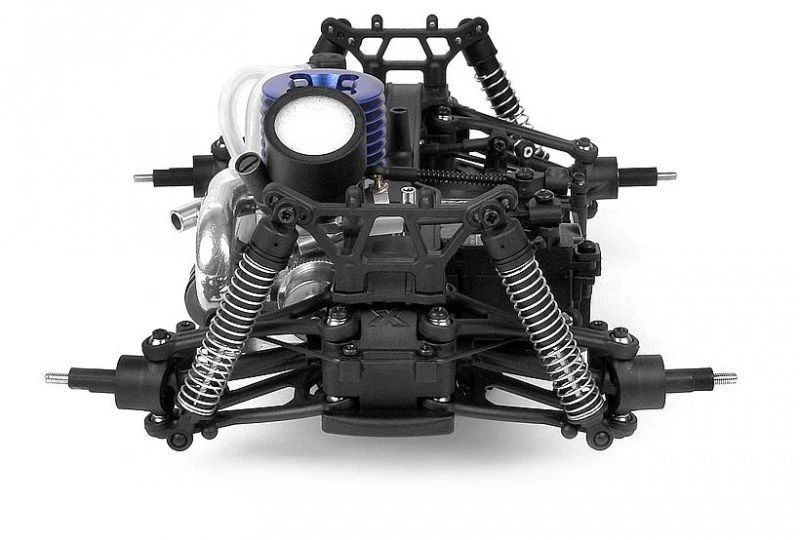

380700 XRAY NT18T – 4WD 1/18 Micro Nitro Truck With Engine & Muffler

Dimensions

• Class: 1/18 nitro micro truck
• Front Width: 178mm
• Rear Width: 180mm
• Length: 208 mm
• Wheelbase: 150 mm
• Ready to run weight: 690g

Chassis:

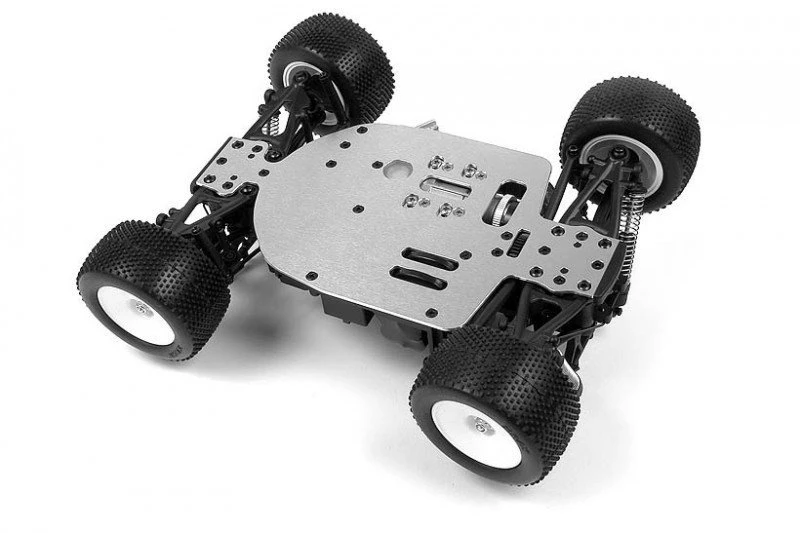

• Chassis: Swiss T6 7075 CNC-machined chassis
• Upper deck: composite upper deck
• Body: 1/18 racing truck body

Drivetrain:

• Type: shaft-drive 4WD

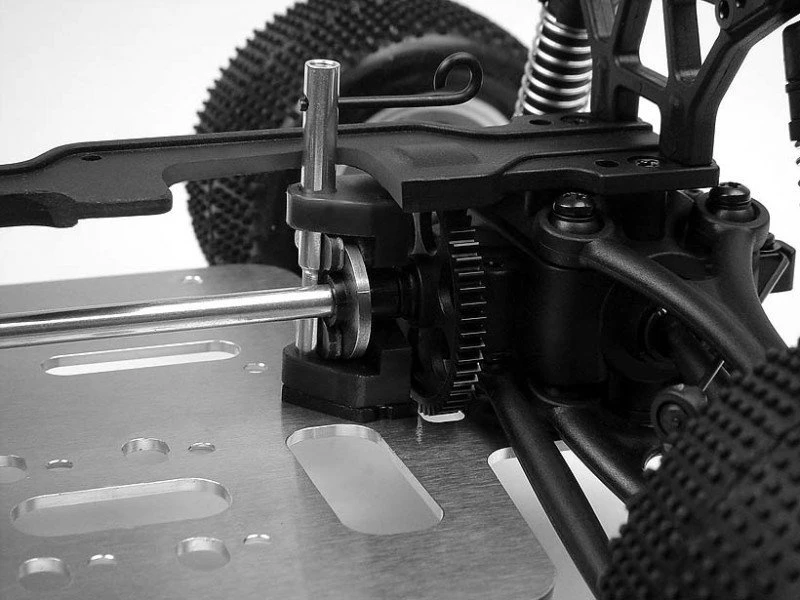

• Drivetrain: aluminum main driveshaft
• Internal ratio: 1:2.5
• Drive shafts: composite front + rear
• Differentials: composite ball differentials – adjustable front + rear
• Bearings: 24 high-speed ball-bearings
• Brake system: adjustable brake; laser cut, hand-ground steel brake disk; Ferodo brake pads

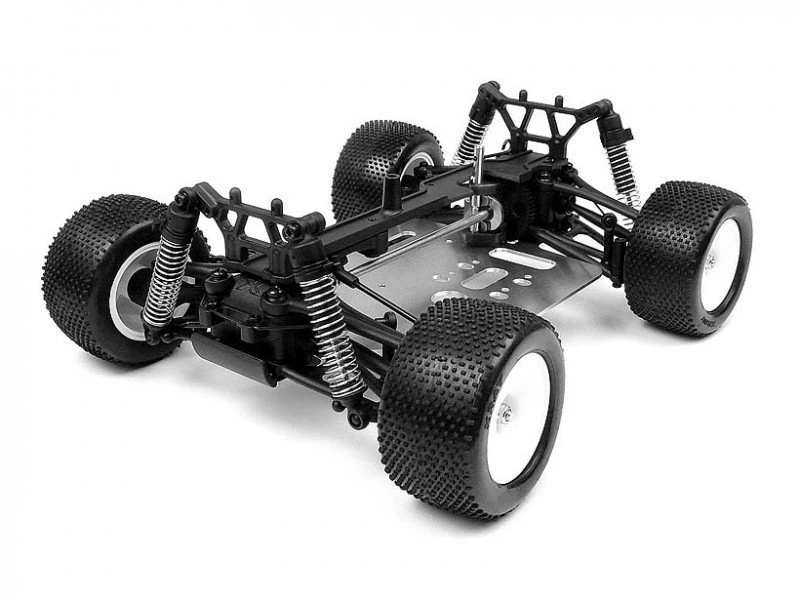

Suspension:

• Front: fully independent
• Rear: fully independent
• Dampening: oil-filled coil-over shocks
• Servo saver: included (rugged)

Geometry:

• Camber: front/rear: -2° (preset)
• Caster: 12° (preset)
• Front Toe: toe-out 0.5° (preset)
• Rear Toe: toe-in 3.5° (preset)
• Anti-roll bars: 1.0mm front + rear (included)
• Wheelbase: 150 mm

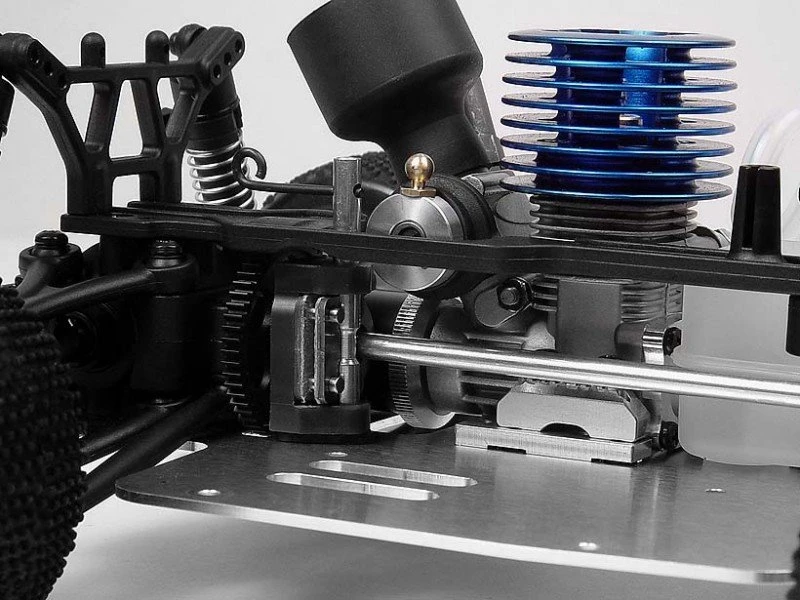

Engine

• Engine powerful 0.8cc engine
• Engine mounts CNC-machined aluminum engine mounts
• Carburetor aluminum slide carburetor
• Muffler polished muffler

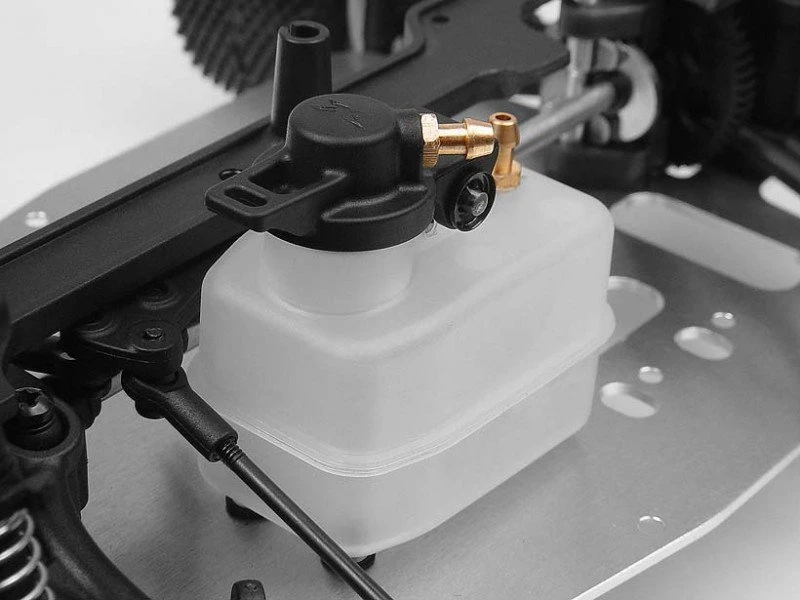

• Fuel tank 30cc fuel tank w/ hypertonic lid & internal stone-type filter
• Flywheel aluminum flywheel
• Clutch bell HUDY steel clutch bell
• Clutch shoes CNC-machined aluminum clutch shoes
• Fuel tubing silicone fuel tubing

Others:

• Wheels: XRAY micro truck wheels
• Tires: XRAY micro truck low pin rubber tires
• Instructions: full-color manual with 3D graphics
• Packing: carton box with 11 vinyl bags with parts
• Not included: radio system (transmitter and receiver), micro servos, lexan paint, fuel, glow plug heater, receiver battery
