3PL Futaba 3-Channel 2.4GHz/ R2004GF

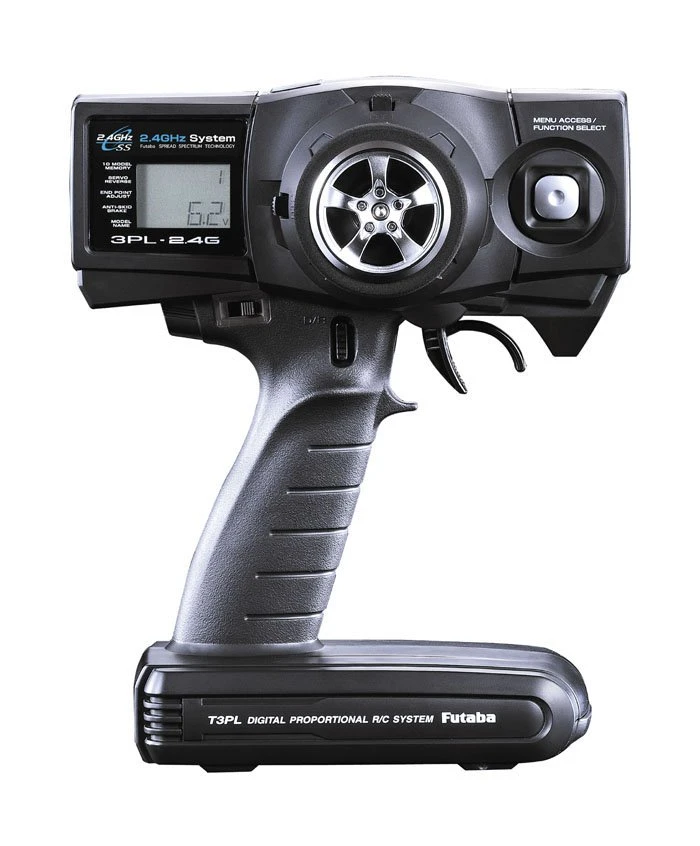

This is the Futaba 3PL 2.4GHz FHSS Radio System with the R2004GF 4-Channel
Receiver. Transmitter and receiver only, servos not included.

FEATURES:

• Special mixing includes 4WS for crawlers or brake mixing on 1/5 scale requiring
  front and rear brakes
• Steering/Throttle/CH3 and CH4 servo reversing and end point adjustments
• ABS braking with fast, mid and low pulses
• Channel 4 neutral trim
• Ten model memory with 3-character model naming and model reset
• Channel 3 switching
• Steering dual rate lever
• Transmitter low battery alarm when voltage drops below 4.2V
• Internal transmitter antenna

INCLUDES:

• Futaba 3PL 2.4GHz FHSS Transmitter with R2004GF 4-Channel Receiverand instruction
  manual

REQUIRES:

• AA Cells: Four for transmitter
• Servos of modeler’s choice

SPECS:

• 3PL Transmitter-
• FHSS Wheel Type 3+1 Channel
• Current Drain: 100mA or less
• R2004GF Receiver (FUTL7617)
• Power Requirement: 4.8V or 6V shared with servos
• Current Drain: 30mA at no signal
• Size: 1.54 x 1.02 x 0.39″ (39 x 26 x 10mm)
• Weight: 0.49oz (14g)
