3PM Futaba 3-Channel FM 27or40MHz/ R153F/ 2xS3003

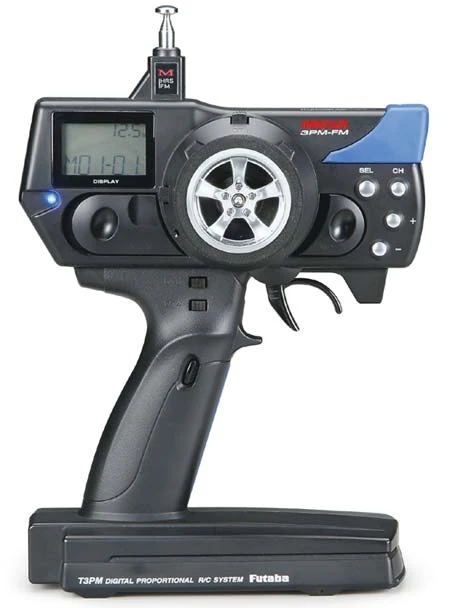

This is the Futaba 3PM FM 3-Channel Surface Computerized Pistol Grip Radio
with the R153F Receiver and two S3003 Standard Servos.

FEATURES:

• 10-model memory
• Alphanumeric LCD screen with high intensity Blue LED monitor, can be
  changed to three different brightness levels
• Condition switch-in specific functions low rates can be set up and
  switched with SW1 switch simultaneously during a run
• Alarm buzzer
• Model copy and clear functions
• ABS Braking
• Brake mixing for large cars
• One-channel program mixing
• Steering and throttle Expo
• Servo reversing on all channels
• End Point Adjustment (EPA) for all channels
• Multi-function timer up/down with lap memory
• Steering dual rates
• Throttle ATL
• Digital trims
• Function select dial/switch
• Steering speed
• Charge jack for optional NiCds
• One year warranty

INCLUDES:

• One 3PM FM Transmitter
• One R153F FM receiver (FUTL0364)
• Two S3003 Standard Servos (FUTM0031)
• One crystal set (FUTL97**)
• One receiver battery box w/”J”connecter (No Number)
• One switch harness (FUTM4350)
• Two accessory package w/rubber grommet, screw, brass eyelet (FUTM3551)
• One frequency flag set
• One instruction manual
• * Optional Transmitter NiCd: (FUTM1462) or FUTM1440
• * Optional Receiver NiCd: (FUTM1295)
• * Optional NiCd Charger: (FUTM1830)

SPECS:

• S3003 Servo x 2
  • Torque: 56.9 oz-in (4.1 kg-cm)
  • 0.19 sec/60X
  • Power Requirement: 4.8V or 6V
  • Size: 1.59″ x 0.78″ x 1.42″ (40.4 x 19 x 36mm)
  • Weight: 1.31oz (37.2g)
• Transmitter:
  • Modulation: FM (HRS/PPM switching possible)
  • Power Requirement: 8 AA cells or NT8F700B NiCd battery (9.6V)
  • Current Drain: 250mA or less
• R153F Receiver
  • Power Requirements: 4.8 to 6.0V (shared with servos)
  • Frequency: 75MHz
  • Size: 1.5″ x 1″ x 0.6″ (37.7 x 25.4 x 14.3mm)
  • Weight: 0.50oz (14.1g)
