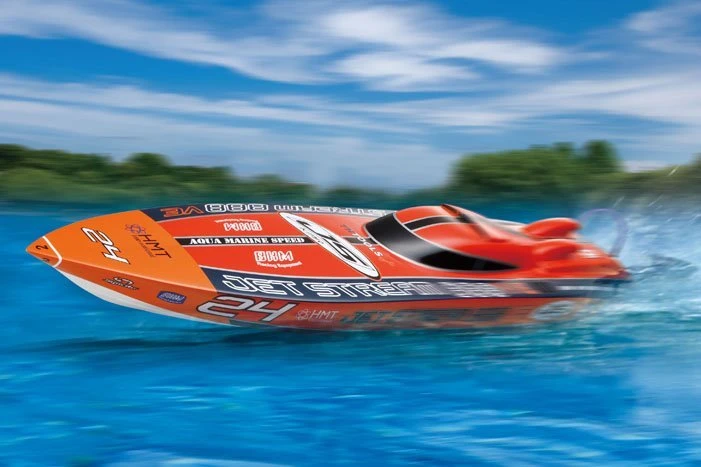

40232RS Kyosho – EP Jet Stream 888VE PIP Electric Powered Racing Boat

Get back into the action straight away with the unsinkable self-righting structure!
PIP kit provides thrilling speed and smooth turning performance!

The uniquely designed 2-stepped deep-V hull of the EP Jet Stream 888VE powers through waves and delivers incredible speed and turning ability. For pure unrelenting racing performance, this model offshore racer leaves all in its wake. Ballast compartments built into the sides of the precision engineered high-strength FRP hull structure facilitate the self-righting of the hull. In the event of capsize, water enters the ballast compartment and alters the weight balance to return the hull to its original posture. When the boat starts moving again, water is released automatically so the boat can continue running as it was prior to capsizing. The unsinkable design of the hull structure removes the fear of this precious boat ever being lost to the depths below. The pre-installed brushless outrunner motor generates huge torque but minimizes cavitation through the large high-thrust propeller and also provides wide options for the choice of other propellers. PIP specifications make it so easy for anyone to enjoy the high performance of this model. The completed hull with power train, servos and linkages is ready to use with your own transmitter, receiver and 3 or 4-cell Li-Po battery. This PIP kit even includes features such as trim tabs and adjustable brackets for tuning running posture that will please expert-level racers. The amazing performance of the EP Jet Stream 888VE can be enjoyed with ease so anyone can experience the exhilaration of power boat racing.

• Features ballast compartments built into the sides of the hull that redistribute weight balance so the hull rights itself if capsized.
• Tilt angle of the machine cut CNC aluminum variable bracket can be adjusted between 4 ～ -4. W bearing shaft support delivers high efficiency power transfer.
• Magnetic lock hatch open/closes without using any tools. Built-in waterproof radio box with double-hatch protects R/C system components from water. Servos are installed and linkage set up is complete.
• Brushless outrunner motor and waterproof 80A ESC are pre-installed. Optional ORION set box can to be used to adjust each setting.
• Features wire drive that produces optimal propeller angle. Machine cut CNC aluminum rudder features flip-up design to help avoid damage if contact is made.

• Pre-colored FRP factory assembled hull reaches speeds of 60km/h.
• PIP set requires only transmitter/receiver and Li-Po battery.
• Newly designed high-power 80A Team Orion water-cooled ESC features cell auto-detect.
• Pre-installed brushless outrunner water-cooled motor generates excellent torque characteristics.
• Unsinkable self-righting structure.
• Flip-up rudder design prevents damage if boat contacts an obstacle.
• Equipped with combination turn fin and trim tab with adjustable angle.
• Features stopper to prevent loss of shaft.
• Includes drip proof rubber boots, aluminum servo mount, carbon nylon 3-blade propeller.

＜ ARF Kit Contents ＞ Pre-colored fully assembled hull Water-cooled brushless motor Water-cooled ESC Wire joint drive unit Duralumin water intake rudder unit Boat stand Spare propeller

＜ Required for Operation ＞ R/C system/ 2-channel minimum transmitter/receiver (compatible receiver size: L50xW30xH14mm) 3-4 cell 11.1V-14.8V-3,600-4,000mAh Li-Po battery (Super Plug specification/compatible size: L138xW42xH33) Charger for Li-Po battery Batteries for transmitter Antenna holder, antenna pipe (if not using 2.4GHz R/C system)

Technical Data

Length	900mm
Width	187mm
Height	140mm
Weight	1,780g (approx. installed 14.8V-1400mAh)
Motor	Brushless outruuner water-cooled Aqua Speed Pro BLS3744
Battery	3-4 cell 11.1V-14.8V-3,600-4,000mAh Li-Po (Super Plug specification, sold separately)
Screw	Carbon-reinforced nylon D40 x P1.4 (3-blade)
Amp	Team Orion water-cooled 80A waterproof ESC
Servo	KS-201 pre-installed
