42279 Tamiya – 1/10 RC TRF101W Chassis Kit

Tamiya&39;s Tamiya Racing Factory has come up with a new variant of the TRF101,
the company&39;s popular R/C formula chassis released in 2013. The TRF101W benefits
from the TRF team&39;s wealth of racing experience and data. It retains many of
the original basic features of the TRF101 chassis while adding a number of upgrades
to transform the front suspension into a wide-tread unit, the dominant style
of chassis in the R/C formula racing world at present.

NEW Features::

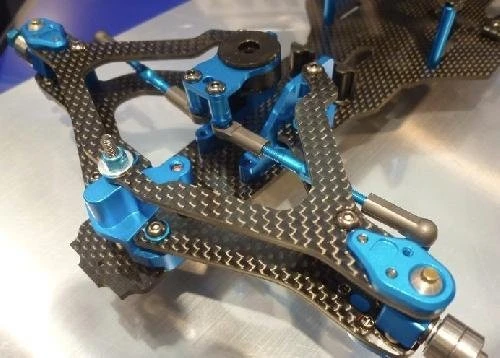

• Revamped front suspension arms: The redesigned carbon fiber upper arm piece
  is married with carbon fiber lower arms to bring the chassis excellent durability
  and enhance the unit&39;s controllability. Both the front suspension mount and
  aluminum servo stay have also been redesigned for the TRF101W chassis.
• Greater Flexibility: The thickness of the carbon fiber lower deck has been
  reduced to 2.5mm to provide greater chassis flexibility, which will provide
  enhanced stability on low-grip surfaces. Battery posts have been moved forward,
  transferring pitch loads closer to the front of the unit and boosting front
  traction.

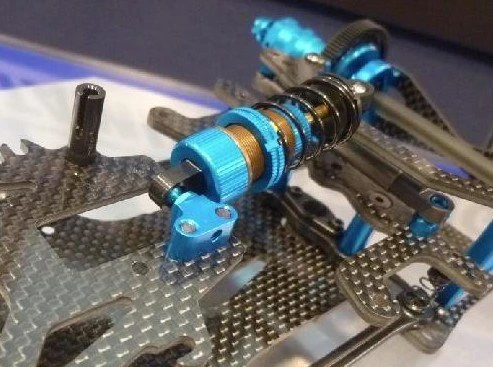

• Smoother, faster dampening: The newly-designed middle brace moves the pitch
  damper attachment position 2.5mm to the rear, leading to faster response and
  keeping the car close to the track surface. The roll damper employs a new
  piston with equal contraction and extension lengths for smoother performance.

Specifications:

• Scale 1/10
• Construction type Assembly kit
• Terrain use On-Road
• Drive-train 2WD
• Drive type Pinion to spur gear
• Drive line Solid axle
• Differential type Ball pressure plate
• Suspension Independent front/solid axle rear
• Steering mechanism Direct servo
• Shock damper Oil-filled damper
• Shock damper material Aluminum
• Tire type Not included
• Tire tread N/A
• Body material Not included
• Chassis material Carbon fiber plate
• Electronic Speed Control (ESC) Not included
• ESC model N/A
• LED Light buckets No
• LED lights No
• Motor N/A
• Bearings Sealed ball bearing
• Adjustable camber Front only
• Adjustable toe angles Front only
• Adjustable ground clearance Yes
• Adjustable gear ratio Yes
• Adjustable wheelbase Fixed
• Adjustable track width Fixed
• Adjustable shock angle Yes
• Special feature 1 Newly-designed upper arm piece, front suspension mount,
  servo stay, middle brace and roll damper.
• Special feature 2 New: Lower arms are now made from carbon fiber material.
• Special feature 3 Compatible with square-shaped battery packs including
  shorty packs.
• Special feature 4 The pivot-ball link rear suspension has 3 different side
  link attachment positions for fine setting adjustments.
• Special feature 5 2.5mm thick Carbon Fiber Lower Deck
• Special feature 6 Aluminum Motor Mount
• Special feature 7 TRF Damper
• Special feature 8 Newly-designed Front Suspension Mount
• Special feature 9 Integrated Diff Plate and Rear Shaft
• Special feature 10 Newly-designed Aluminum Servo Stay
• Requires A 2-channel radio gear
• Requires B 7.2 battery & charger
• Requires C Wheels, tires, body set, motor, esc
