42279COMBO Tamiya – 1/10 RC TRF101W Chassis Kit With Savox – SC-1251MG High Speed Servo Combo Set

About RC TRF101W

• The Tamiya Racing Factory has come up with a new variant of the TRF101.
  The “Wide-tread” Specification, designated as the TRF101W F1 chassis
  kit, is ideally suited high speed racing circuits. The TRF101W benefits from
  the TRF team&39;s wealth of racing experience and data. It retains many of the
  original basic features of the TRF101 chassis while adding a number of upgrades
  to transform the front suspension into a wide-tread unit to make the chassis
  suitable for “foam-tire” racing. Other tweaks include a 2.5mm thickness
  main chassis to make the car more adaptable to low grip surfaces as well as
  a change to the damper position to make initial dampening more effective.

NEW Features:

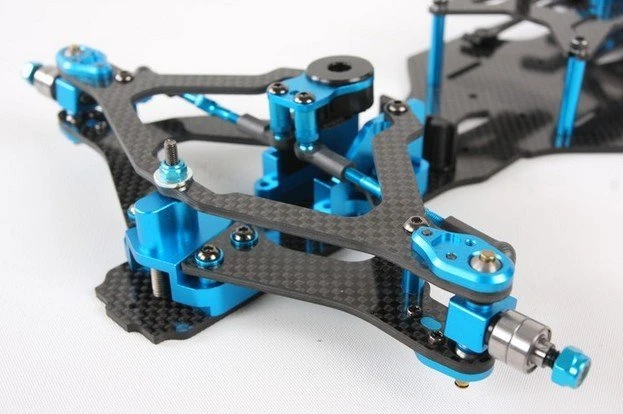

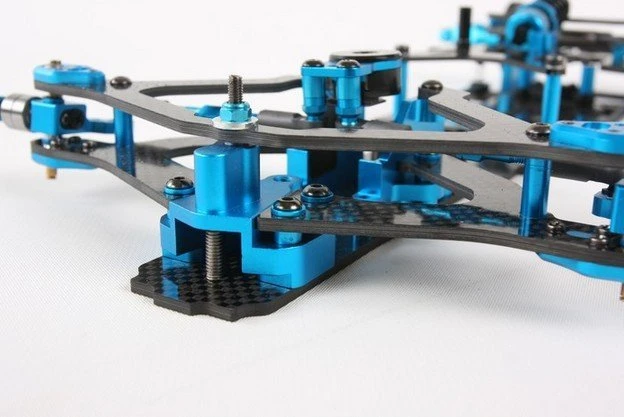

• Revamped front suspension arms: The redesigned carbon fiber upper arm piece
  is married with carbon fiber lower arms to bring the chassis excellent durability
  and enhance the unit&39;s controllability. Both the front suspension mount and
  aluminum servo stay have also been redesigned for the TRF101W chassis.
• Greater Flexibility: The thickness of the carbon fiber lower deck has been
  reduced to 2.5mm to provide greater chassis flexibility, which will provide
  enhanced stability on low-grip surfaces. Battery posts have been moved forward,
  transferring pitch loads closer to the front of the unit and boosting front
  traction.

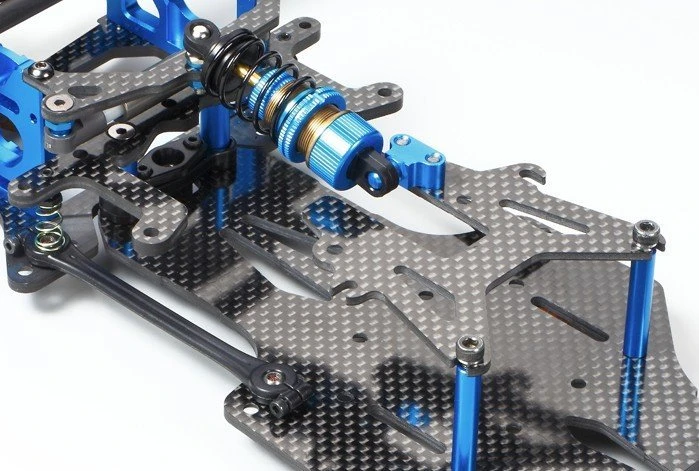

• Smoother, faster dampening: The newly-designed middle brace moves the pitch
  damper attachment position 2.5mm to the rear, leading to faster response and
  keeping the car close to the track surface. The roll damper employs a new
  piston with equal contraction and extension lengths for smoother performance.

Specifications:

• Scale 1/10
• Construction type: Assembly kit
• Terrain use: On-Road
• Drive-train: 2WD
• Drive type: Pinion to spur gear
• Drive line: Solid axle
• Differential type: Ball pressure plate
• Suspension: Independent front/solid axle rear
• Steering mechanism: Direct servo
• Shock damper: Oil-filled damper
• Shock damper material: Aluminum
• Tire type: Not included
• Tire tread: N/A
• Body material: Not included
• Chassis material: Carbon fiber plate
• Electronic Speed Control (ESC): Not included
• ESC model: N/A
• LED Light buckets: No
• LED lights: No
• Motor: N/A
• Bearings: Sealed ball bearing
• Adjustable camber: Front only
• Adjustable toe angles: Front only
• Adjustable ground clearance: Yes
• Adjustable gear ratio: Yes
• Adjustable wheelbase: Fixed
• Adjustable track width: Fixed
• Adjustable shock angle: Yes
• Special feature 1: Newly-designed upper arm piece, front suspension mount,
  servo stay, middle brace and roll damper.
• Special feature 2: New: Lower arms are now made from carbon fiber material.
• Special feature 3: Compatible with square-shaped battery packs including
  shorty packs.
• Special feature 4: The pivot-ball link rear suspension has 3 different side
  link attachment positions for fine setting adjustments.
• Special feature 5: 2.5mm thick Carbon Fiber Lower Deck
• Special feature 6: Aluminum Motor Mount
• Special feature 7: TRF Damper
• Special feature 8: Integrated Diff Plate and Rear Shaft
• Special feature 9: Track width with F103 foam tires: F: 198mm R: 198mm
• Special feature 10: Track width with F104 rubber tires: F: 198mm R: 180mm
• Requires A: 2-channel radio gear
• Requires B: 7.2 battery & charger
• Requires C: Wheels, tires, body set, motor, esc

About the Savox – SC-1251MG Low Profile High Speed Metal Gear Digital Servo

• This is the Savox SC-1251MG Low Profile High Speed Metal Gear Digital Servo

Features:

• Super high 4096 resolution and metal gears.
• Super light-weight.
• Coreless Motor provides high speed, incredible efficiency, and low power
  consumption than comparable servos.
• The aluminum case design not only looks good but also helps operation to
  remain cool and smooth.
• Our servos are totally green – from materials to production, these servos
  are environmentally friendly.
• Ideal as a steering servo for 1/10 surface applications and in gliders and
  airplanes that have thin wing profiles.

Technical Specs:

• Dimensions(mm): 40.8X20.2X25.4
• Weight(g): 44.5
• Speed(@4.8V sec/60): .10
• Torque(@4.8V oz-in): 97.2
• Speed(@6.0V sec/60): .09
• Torque(@6.0V oz-in): 125.0
• Gear: Metal
• Bearing: 2BB
• Case: Aluminum
• Running current (at no load): 150 mA @ 4.8V
• Running current (at no load): 180 mA @ 6.0V
• Stall current (at locked): 2000 mA @ 4.8V
• Stall current (at locked): 3000 mA @ 6.0V
• Idle current (at stopped): 5 mA @ 4.8V
• Idle current (at stopped): 5 mA @ 6.0V
• Limit angle: 200 degree +-10 degree
• Connector wire gauge: 22 AWG
• Connector wire length: 300 +-5 mm
• Horn gear spline: 25T
• Control system: Pulse width modification
• Amplifier type: Digital controller
• Operating Travel: 100 degree (when 1000u->2000usec)
• Neutral position: 1500 usec
• Dead band width: 5 usec
• Rotating direction: Clockwise (when1500->2000 usec)
• Pulse width range: 700->2300 usec
• Maximum travel: Approx 160 degree (when700->2300 usec)
