42311 Tamiya – 1/10 TRF419X WS Chassis Kit

Original price was: $383.00.Current price is: $96.99.

SKU: CMNQY 42311 Categories: R/C On-Road Car, Touring Cars

Safeguard Your Shopping Experience
Experience Quality, Shop with Us
No Compromise on Quality
Shop the Best Quality Online

Description
Reviews (0)

The TRF (Tamiya Racing Factory) 419X is the pinnacle touring car race machine from Tamiya’s top tier designers. It is a vehicle that can be raced at your local track or at official Tamiya TCS races. This variant of the TRF419X (original Item: 42301) gives the hi-spec racing chassis kit a boost, with new thickness upper (carbon fiber) and lower (aluminum) deck parts included in the kit to further enhance its performance on carpet and other high-grip surfaces. The rest of the kits’ features remain the same as the regular 419X.

Key Design Features:

Front and rear shock towers sit lower than previous model TRF machines. This feature reduces the center of gravity and allows Tamiya fans to use Tamiya low nose sports car body sets.

Separate front and rear bulkheads have detachable inner camber link mounts for precise adjustment of the camber linkage length. You are no longer limited to predetermined holes from the previous mounting system.

Sway Bar mount are fitted with a stabilizer stopper.

Aluminum battery mounts are slotted to easily use strapping tape to secure the battery in place.

Carbon fiber shock towers are secured to the aluminum bulkhead using only two screws as opposed to four as seen in previous models. This allows for more flex of the chassis.

Servo mount is made of two pieces: carbon fiber and aluminum.

Specifications

Scale : 1/10
Construction type : Assembly kit
Terrain use : On-Road
Drive-train : 4WD
Drive type : Belt
Drive line : Universal
Differential type : Rear oil-filled gear diff/front spool
Suspension : Fully independent double wishbone
Steering mechanism : Bell-crank
Shock damper : Oil-filled damper
Shock damper material : Aluminum
Tire type : Not included
Tire tread : N/A
Body material : N/A
Chassis material : Aluminum
Electronic Speed Control (ESC) : Not included
ESC model : N/A
LED Light buckets : No
LED lights : No
Motor : Not included
Bearings : Shielded ball bearing
Adjustable camber : Yes
Adjustable toe angles : Front and rear
Adjustable ground clearance : Yes
Adjustable gear ratio : Yes
Adjustable wheelbase : Yes
Adjustable track width : Yes
Adjustable shock angle : Yes

Features

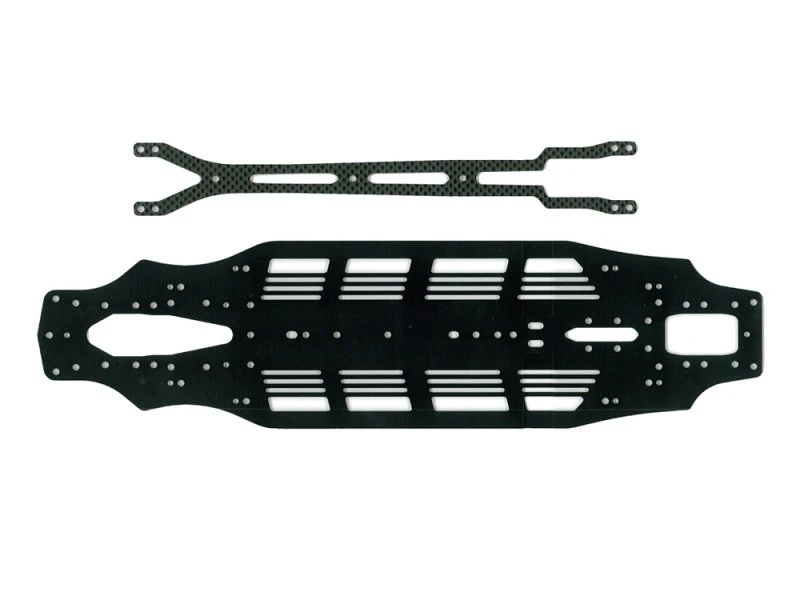

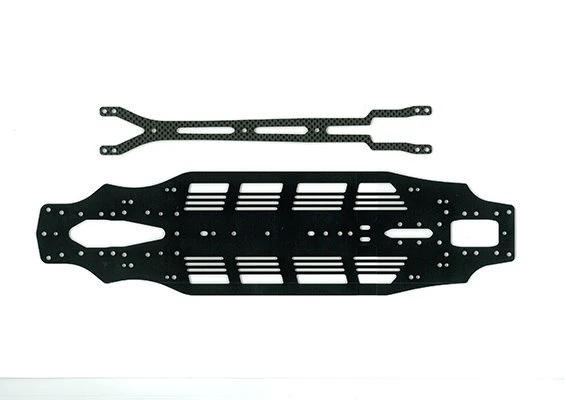

Includes both a new 2mm thickness aluminum chassis, and the original 2.15mm thickness carbon fiber lower deck, letting the driver switch according to the surface conditions they are running on.

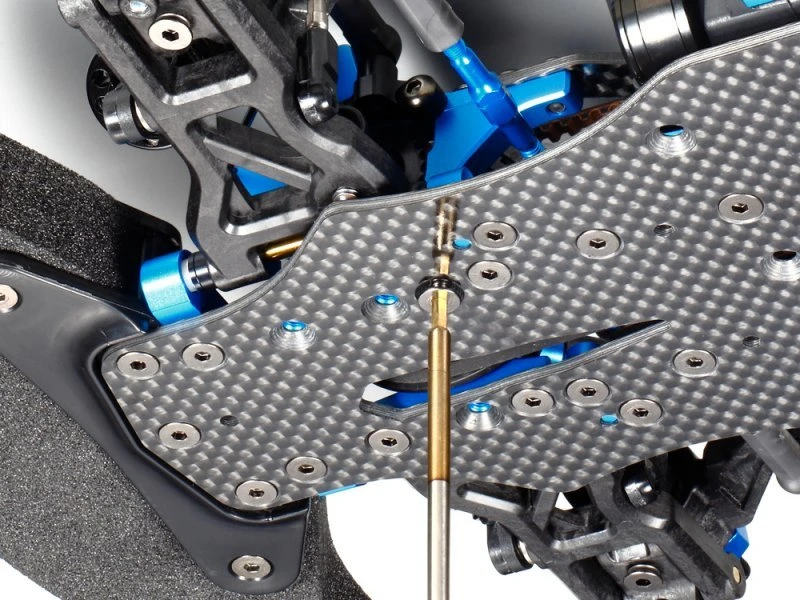

Both the new 1.75mm thick carbon fiber and the original 2mm thick carbon fiber upper decks are included.

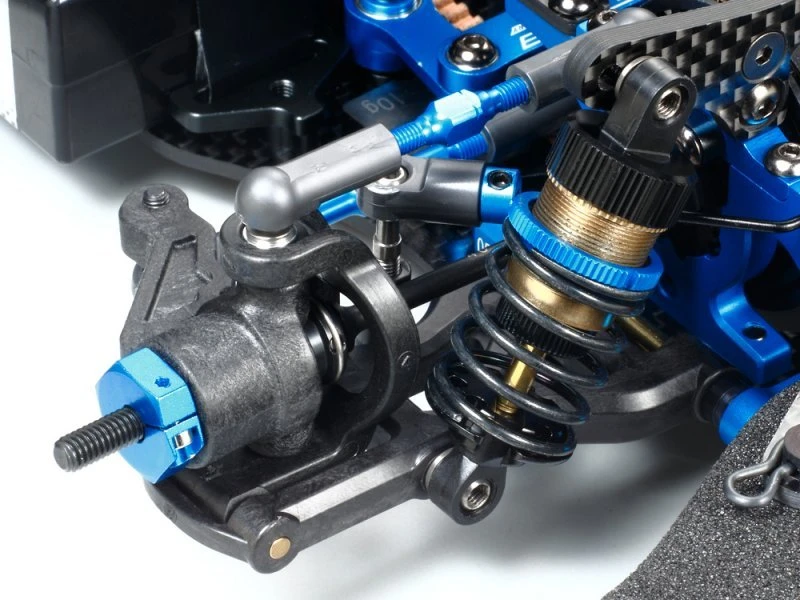

Super short TRF dampers are combined with TRF419X suspension arms.
Front and rear lower bulkhead parts have 3 attachment points, allowing alteration of chassis rigidity and flex. Bulkhead parts can be fitted with upper arm spacers for a greater range of setup options.

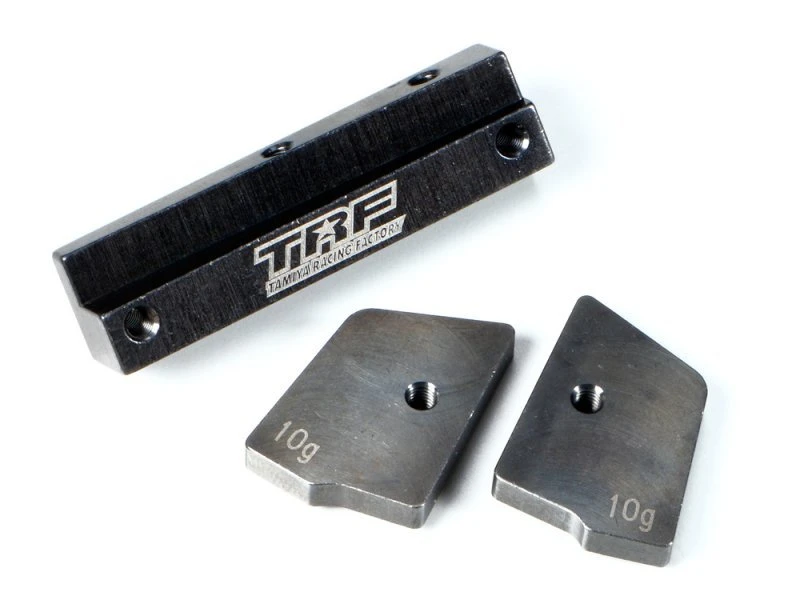

2 types of ballast weight are included.

Requires
