43521 Tamiya – 1/10 XBG NITRO BLASTER

High Speed Engine R/C Made Easy!
The high pitched screaming engine, the sweet
smell of fuel and exhaust fumes, the awesome speed off the start line,
nothing quite compares to the buzz of engine R/C. Whether you&39;re already
hooked and looking for a high performance hassle free new ride, or you are
new to engine R/C, the Nitro Blaster is sure to satisfy. Set includes
factory built chassis fully equipped with a powerful 2.5cc engine, fully
finished body with all stickers pre-applied, and trigger type transmitter.
Capable of lightning speeds on both dirt and on-road tracks, Nitro Blaster
will leave the competition behind no matter the terrain.

New Technology, Awesome Performance!
Nitro Blaster is powered by Tamiya&39;s NDF-01
chassis, featuring aluminum die-cast engine mount built-into highly durable
resin lower deck for maximum heat dissipation and low center of gravity, and
engine and fuel tank loaded to the center of chassis for ideal weight
distribution. The massive power from the 2.5cc engine is converted to real
running performance via center bulkhead, fully sealed and bearing loaded
differential gear box, and universal joints. With the NDF-01, you not only
get a powerful glow engine, but a highly efficient and extremely reliable
racing machine.

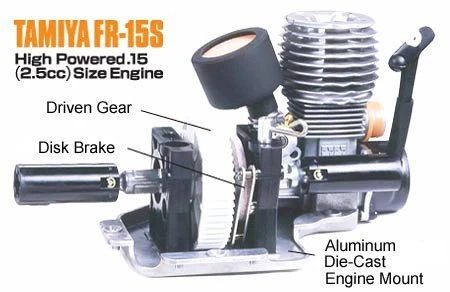

High Performance FR-15S Engine
Powerful recoil start FR-15S engine features 2.5cc
displacement with large diameter slide-valve carburetor and rear exhaust layout.
Engine features adjustable main needle and idle needle to obtain maximum engine
performance. High performance disk brake system provides the safe and controlled
braking necessary for a high-powered engine.

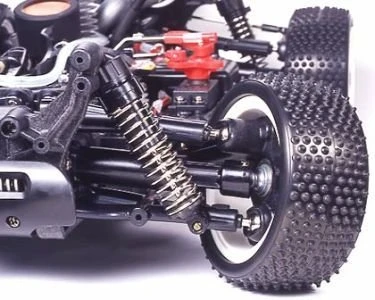

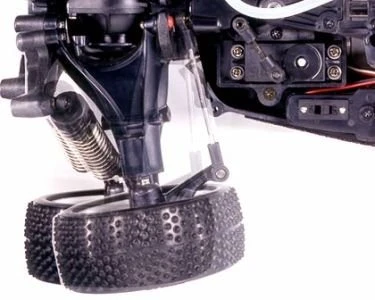

Frontal Impact Control System (FICS)
4-wheel independent double wishbone suspension
features extra long suspension arms extending from center of chassis. Front
suspension arms are protected by Frontal Impact Control System (FICS), which
absorbs impact during a front-on collision by an expandable suspension mount.
Camber angle and toe is also adjustable for both front and rear wheels.

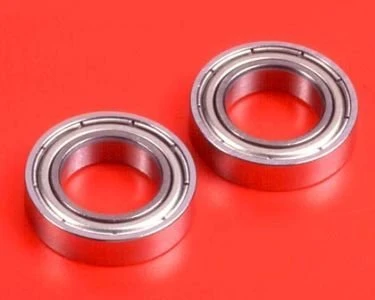

Large-sized Ball Bearings
Extra large ball bearings, including 2112 bearings,
are used throughout the drive train for long lasting, efficient performance.

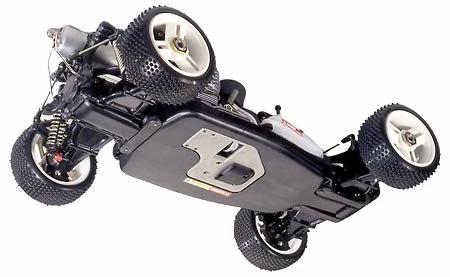

Extremely smooth chassis bottom for best skid performance has been obtained via
sinking all screw heads and eliminating any height difference between lower deck
and aluminum die-cast engine mount.

Trigger Type Transmitter for Precise Control
Transmitter has been specially designed by renowned
German industrial designer, H. A. Muth, designer of the Suzuki GSX1000S Katana
motorcycle. The unique, ergonomic design, features steering wheel and trigger
positioned for optimum performance with minimal distractions. All parts that
require a soft touch for precision maneuvering such as steering wheel, trigger
and grip have been produced from high quality soft resin. Control switches and
trims are located on the front for a user friendly design.

Basic Specifications

• Overall length: 440mm, width: 265mm, height:
  175mm
• Overall weight: 2590g (*Weight includes
  batteries loaded, fuel unloaded)
• Chassis material: fiber glass based nylon
• Suspension: Independent double wishbone
  front and rear suspension
• Drive train: Shaft driven 4WD
• Tire width/diameter: 40/90mm (front and
  rear)

Items required (sold separately)
Glow plug heater, fuel filler, glow-engine fuel and
R6/AA/UM3 batteries for transmitter & receiver

Wide Range of Tune-Up Options
ITEM No. PRODUCT NAME

• 53778 NDF-01 Off-Road Spring Set
• 53780 NDF-01 2-Speed Transmission
• 53781 2112 Sealed Ball Bearing Set (2 pcs.)
• 53799 NDF-01 Inner Sponge (4 pcs.)
• 53801 NDF-01 Twin Brake Set
• 53802 NDF-01 Reinforced Drive Flange Shaft
• 53803 NDF-01 On-Road Stabilizer Set
• 53812 NDF-01 2-Speed Transmission Steel
  Joint Ball
• 53813 NDF-01 2-Speed Transmission Reinforced
  Clutch Bell
• 53814 NDF-01 2-Speed Transmission Driven
  Gear (54T/57T)
• 53815 NDF-01 2-Speed Transmission Drive Gear
  12T (1st Gear)
• 53816 NDF-01 2-Speed Transmission Drive Gear
  13T (1st Gear)
• 53817 NDF-01 2-Speed Transmission Drive Gear
  14T (2nd Gear)
• 53818 NDF-01 2-Speed Transmission Drive Gear
  15T (2nd Gear)
• 53819 NDF-01 Reinforced Steel Drive Gear 12T
• 53820 NDF-01 Reinforced Steel Drive Gear 13T
• 53821 12mm Aluminum Wheel Nut (4 pcs.)

RTR NITRO XB KITS REQUIRE:
(unless stated differently above)

• Battery: 4AA for Receiver 8AA for
  Transmitter
• Fuel: Nitro Glow Fuel
• Starting Equipment: Glow igniter
• Misc. Items: Building and track equipment
