47202 Tamiya – 1/18 R/C 4X4 Truck MAX CLIMBER (TLT-1 Chas

Following the release of the 1/18 scale TLT-1 Rock Buster comes the second
model in the Little Gear Series, the TLT-1 Max Climber. The Rock Buster proved a
huge hit thanks to its powerful climbing, maneuverability, durability and small
size. The new Max Climber is packed with all the great features that made the
Rock Buster so popular plus a whole new body. Chassis has also been adapted to
be compatible with a regular lay down battery pack.

At just 28cm our second release on the TLT-1 chassis may seem small, but the
Max Climber packs one hell of an awesome punch. This mighty 4WD truck can take
on the bumpiest terrain thanks to a massive 4-link cantilever suspension system
and huge semi-pneumatic truck tires. Not only boasting running performance the
equivalent of a 1/10 scale model at half the size, the mighty Max Climber also
features a wicked SUV body design making it the coolest truck on the block.

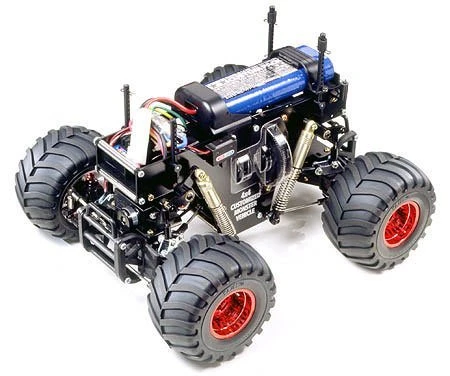

High Performance Settings
The 4-link rigid suspension absorbs all bumps and ditches via rocker arm

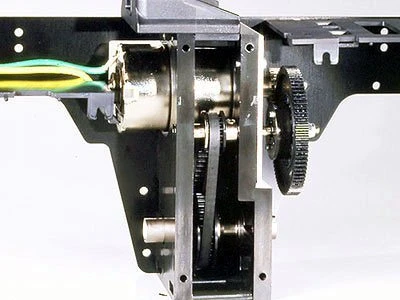

controlled oil dampers. Designed for efficiency and minimal power loss, the 4WD
drive train consists of a centrally mounted motor, drive belt, center ball
differential, front and rear propeller shafts and differential gearboxes.

Loads Of Improvements

Now compatible with a standard lay down battery pack, the Max Climber does not
require a special battery like its predecessor the Rock Buster. Other
improvements on the Rock Buster include a 2mm thick black anodized aluminum
frame and metal plated wheels featuring a shiny red finish.

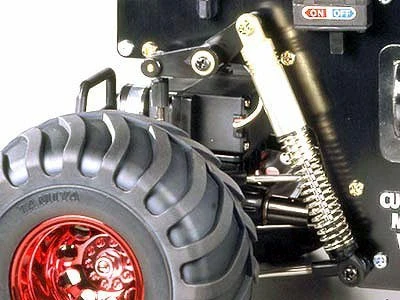

Awesome Suspension Stroke

Both front and rear axles are linked to suspension system via metal link rods,
providing a huge suspension stroke and ensuring reliable running performance
even on the most bumpy of terrains.

4-Wheel Steering
?Via attaching an extra servo (sold separately) to the rear, you can turn your
conventional 2-wheel steer truck into an awesome 4-wheel steer for exceptional
control. Steering front and rear wheels in opposite direction gives sharper
turning, while steering front and rear wheels in the same direction allows for
side running.

• When using an extra servo with a 2-channel R/C system, a splitter
  compatible with your transmitter is required.
• Use a TSU-01 Servo (ITEM 7255097) for 4-wheel steering.

Specifications

• Overall length: 280mm, Overall width: 251mm 98mm diameter wheels

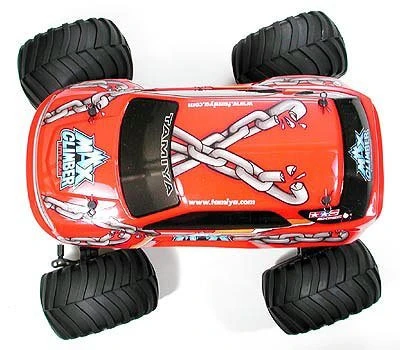

• All new SUV inspired body featuring cool sleek design.
• Compatible with a regular lay down battery.
• Belt drive lightweight aluminum chassis that takes the power straight to
  your four wheels.
• Four link push rod suspension with aluminum dampers.
• Powered by a Type 540 motor.
• 4-wheel steering capabilities (2 servos required).
• Clever package design allowing the packaging to be also used as a carry
  case.

ELECTRIC KITS REQUIRE:
(unless stated differently above)

• Radio: 2-Channel with servo(s)
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or peak for 6-cell battery
• Paint: PS for Polycarbonate/TS for ABS

• Misc. Items: Building and track equipmen
