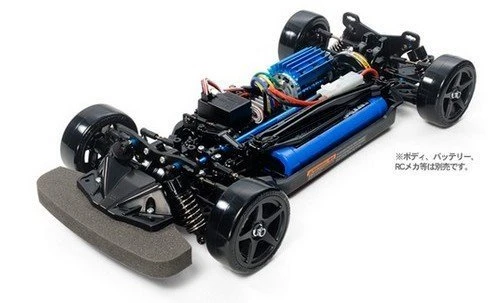

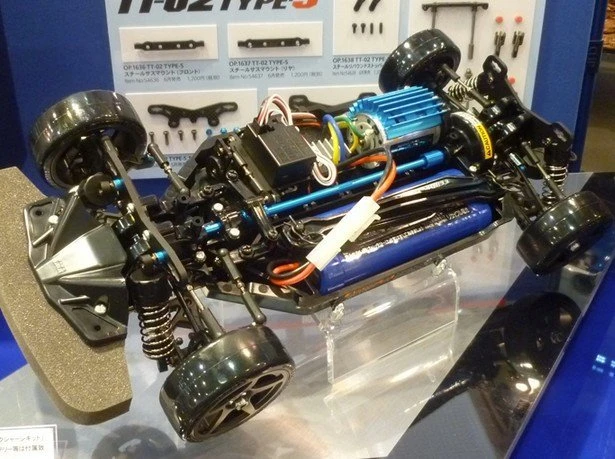

47301 Tamiya – 1/10 TT02D Type-S Chassis Kit – Drift Spec

This chassis kit takes the sporty TT-02 Type-S chassis and includes a number of
parts to turn it into a drift spec unit. The TT-02D Type-S is a perfect choice
for those looking to make the step up from entry-level chassis to a drift chassis
which is racier and more customizable.

Specifications

• Scale 1/10

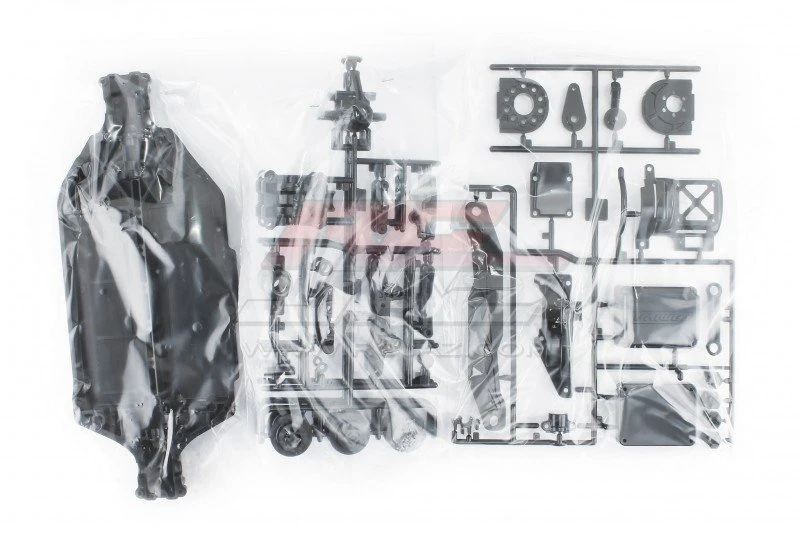

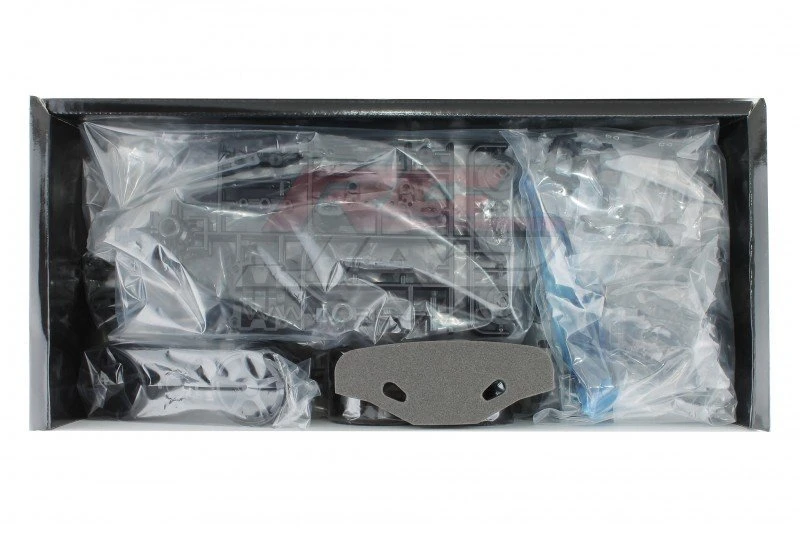

• Construction type: Assembly kit
• Terrain use: On-Road
• Drive-train: 4WD
• Drive type: Shaft
• Drive line: Dog bone
• Differential type: Gear
• Suspension: Fully independent double wishbone
• Steering mechanism: Bell-crank
• Shock damper: Oil-filled damper
• Shock damper material: Plastic
• Tire type: Rubber-drift type
• Tire tread: Slick
• Body material: Not included
• Chassis material: Plastic
• Electronic Speed Control (ESC): Not included
• ESC model: N/A
• LED Light buckets: No
• LED lights: No
• Motor: 540-brushed type
• Bearings: Shielded ball bearing
• Adjustable camber: Yes
• Adjustable toe angles: Front only
• Adjustable ground clearance: Yes
• Adjustable gear ratio: Yes
• Adjustable wheelbase: Yes
• Adjustable track width: Yes
• Adjustable shock angle: Yes
• Special feature 1: Length: 385mm, width: 187mm.
• Special feature 2: Includes reversible suspension arms, 3mm-thickness FRP
  damper stays and CVA oil dampers.
• Special feature 3: Torque-tuned motor included, with blue anodized aluminum
  motor heat sink for greater heat dissipation.
• Special feature 4: Comes with Super Driftech tires for exciting drift driving,
  married with black 5-spoke wheels.
• Special feature 5: Turnbuckle upper arms and steering linkage make for fuss-free
  adjustment of camber and front toe.
• Special feature 6: Includes blue anodized aluminum propeller shaft and propeller
  joints.
• Special feature 7: Features durable metal suspension mounts.
• Special feature 8: The TT-02 chassis offers 2 different wheelbase and tread
  settings plus 10 different gear ratios.
• Special feature 9: The skid-shaped underside of the bathtub type frame minimizes
  contact with the road surface.
• Requires A: 2-channel radio gear & electronic speed control
• Requires B: 7.2 battery & charger
• Requires C: Polycarbonate paint
• Requires D: Body set
