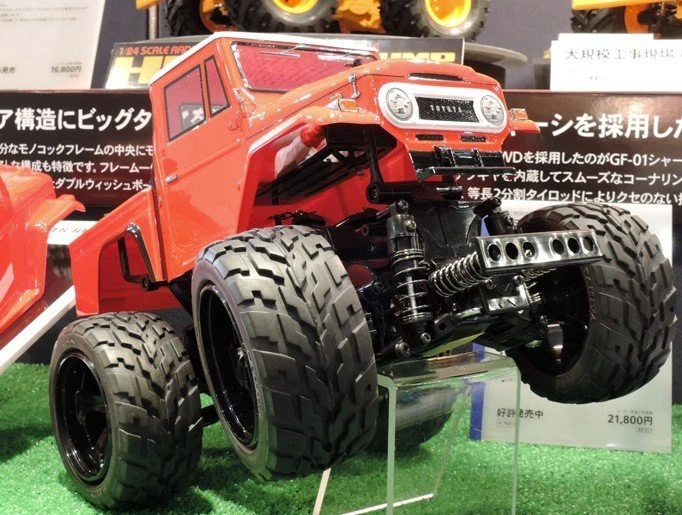

47305 Tamiya – 1/12 Toyota Land Cruiser 40 Pick-UP (Red Painted Body) GF-01 Chassis

This is the NEW GF-01 chassis platform. The first model to be featured on the
chassis is a pick-up version of the Toyota Land Cruiser 40, a world-famous off-road
vehicle that needs little introduction. It was produced for almost 25 years
and much loved for its durability and adaptability. The GF-01 chassis plays
off the successful and fun line-up of RC kits such as the Wild Willy 2, Volkswagen
Type 2 and the Farm King Wheelie. Whereas those kits featured a 2WD and easy

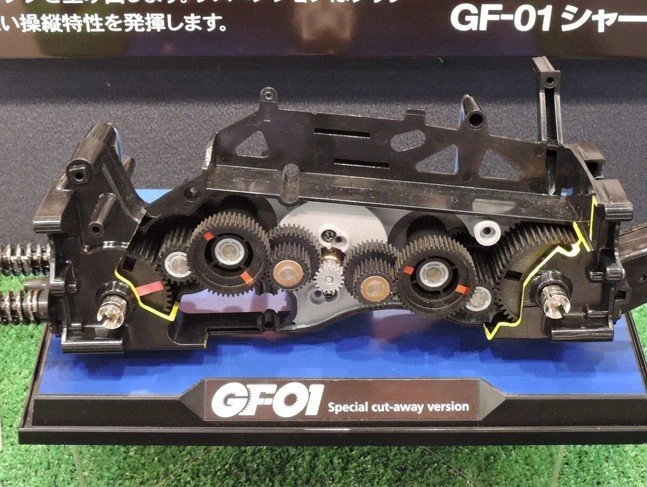

to wheelie platform, the new GF-01 is a 4WD incarnation with the motor directly
placed in the center in order to drive the gears in the front and rear gearboxes.

• Scale : 1/12
• Construction type : assembly kit
• Terrain use : multi-purpose
• Drive-train : 4WD
• Drive type : gearbox
• Drive line : dog bone
• Differential type : gear
• Suspension : fully independent double wishbone
• Steering mechanism : bell-crank
• Shock damper : friction damper
• Shock damper material : plastic
• Tire type : rubber
• Tire tread : block-pattern
• Body material : Polycarbonate
• Chassis material : plastic
• Electronic Speed Control (ESC) : included
• ESC model : TBLE-02S
• LED Light buckets : no
• LED lights : no
• Motor : 540-brushed type
• Bearings : plastic bushing
• Adjustable camber : fixed
• Adjustable toe angles : front only
• Adjustable ground clearance : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable shock angle : fixed
• Special feature 1 : Length: 333mm, width: 244mm, height:242mm
• Special feature 2 : The polycarbonate body accurately recreates the form
  of the Land Cruiser 40 with pick-up style rear end.
• Special feature 3 : Uses front and rear differentials in a sealed gearbox
  integrated in the frame.
• Special feature 4 : 4-wheel double wishbone suspension utilizes friction
  dampers.
• Special feature 5 : 5-spoke metal-plated wheels are fitted with massive
  110mm-diameter tires.
• Special feature 6 : A driver figure is included.
• Special feature 7 : Includes Tamiya TBLE-02S ESC (capable of running brushed
  and brushless motors)
• Special feature 8 : Includes 540 Torque Tuned motor.
• Requires A : 2-channel radio gear
• Requires B : 7.2 battery & charger
• Requires C : polycarbonate paint
