47329 Tamiya – 1/24 Metal Plated Heavy Dump Truck (GF-01)

This special LIMITED EDITION kit takes the standard Heavy Dump Truck and gives
it a new meaner look! The livery design concept is based upon the heavy metal
style seen in American rock band culture. The body parts are molded in black,
with metal-plated chassis parts and new sticker designs.

This special version depicts a dump truck modeled upon those which do the heavy
work in locations like quarries and large-scale construction sites. The body
is mounted on the popular gear-driven GF-01 chassis.

The GF-01 chassis plays off the successful and fun line-up of RC kits such
as the Wild Willy 2, Volkswagen Type 2, and the Farm King Wheelie. Whereas those
kits featured a 2WD and easy to wheelie platform, the GF-01 is a 4WD incarnation
with the motor directly placed in the center in order to drive the gears in
the front and rear gearboxes.



• Scale: 1/24
• Construction type: Assembly kit
• Terrain use: Multi-Purpose
• Drive-train: 4WD
• Drive type: Gearbox
• Drive line: Dog bone
• Differential type: Gear
• Suspension: Fully independent double wishbone
• Steering mechanism: Bell-crank
• Shock damper: Friction damper
• Shock damper material: Plastic
• Tire type: Rubber
• Tire tread: Lug/pin-spike
• Body material: ABS Plastic
• Chassis material: Plastic
• Electronic Speed Control (ESC): Included
• ESC model: TBLE-02S
• LED Light buckets: No
• LED lights: No
• Motor: 540-brushed type
• Bearings: Plastic bushing
• Adjustable camber: Fixed
• Adjustable toe angles: Front only
• Adjustable ground clearance: Fixed
• Adjustable gear ratio: Yes
• Adjustable wheelbase: Fixed
• Adjustable track width: Fixed
• Adjustable shock angle: Fixed
• Special feature 1: Realistic cab and rear bed are injection-molded in black
  ABS plastic.

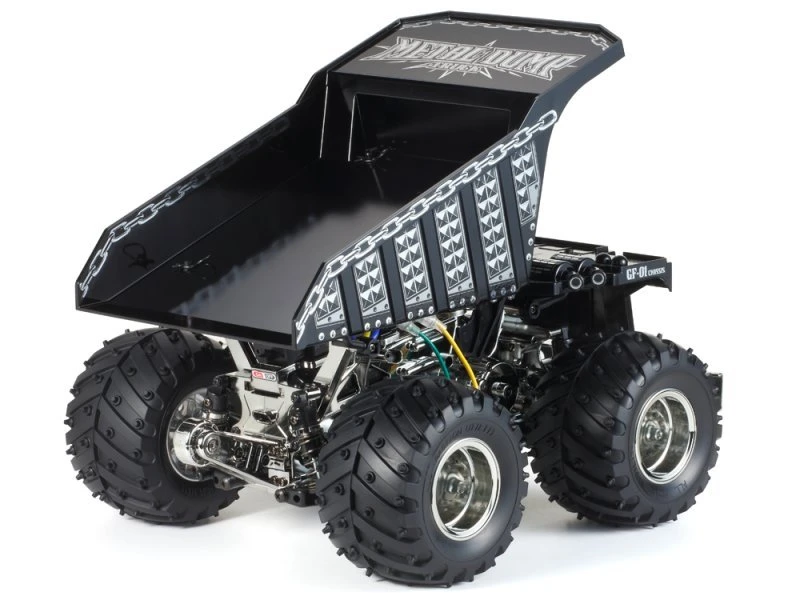

• Special feature 2: Alternate rear bed between flat and raised positions
  by changing the position of the 2 stays and snap pins in the body mounts.
  Note: It is not advised to put objects in the rear bed, or drive the modelwith
  it raised.
• Special feature 3: Metal-plated wheels are paired with 115mm-diameter tires.

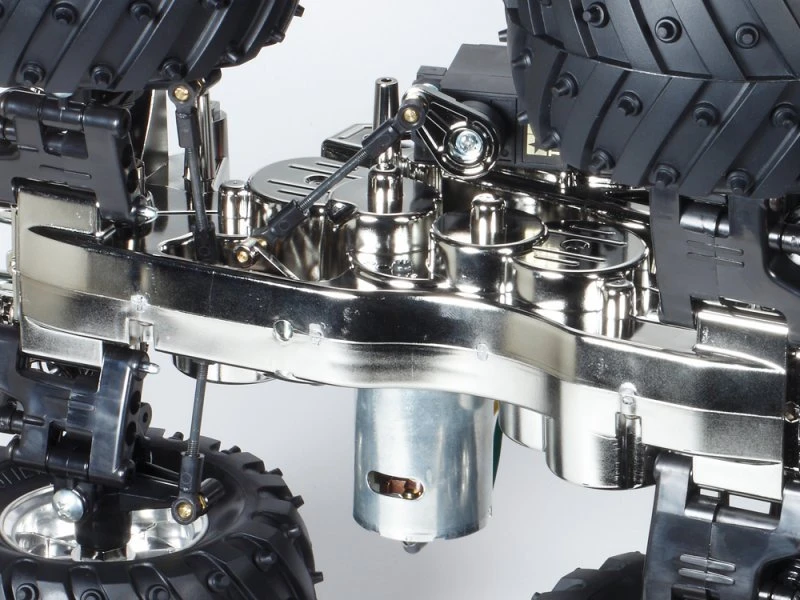

• Special feature 4: The 4WD GF-01 chassis frame and (stays, bumper, wheelie
  bar, etc.) are metal-plated. The sealed gearbox is integrated into the frame,
  while the built-in differential gears provide smooth cornering.

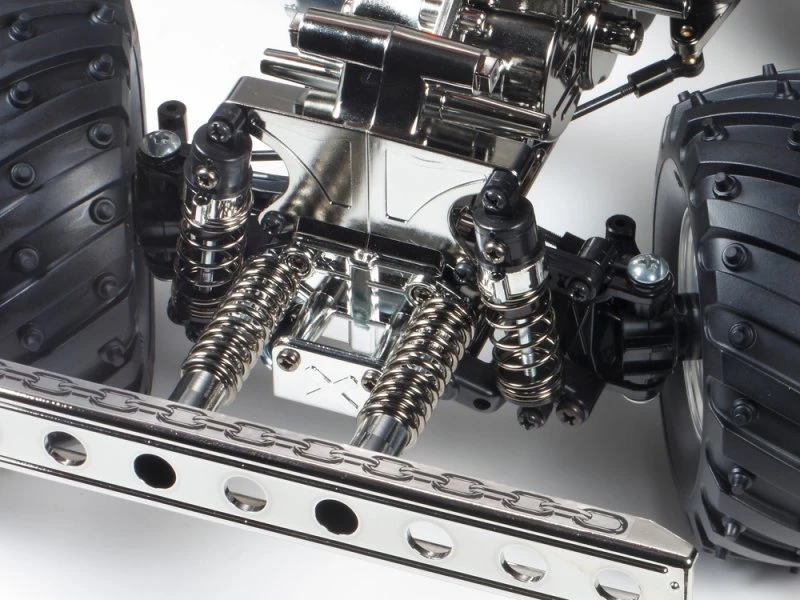

• Special feature 5: 4-wheel double wishbone suspension incorporates friction
  dampers.
• Special feature 6: The &39;square&39; setup chassis uses similar tread (194mm)
  and wheelbase (174mm) lengths.
• Special feature 7: Torque-tuned motor is included.
• Special feature 8: Includes the Tamiya TBLE-02S ESC (brushless motor and
  brushed motor compatible)
• Requires A: 2-channel radio gear
• Requires B: 7.2 battery & charger
