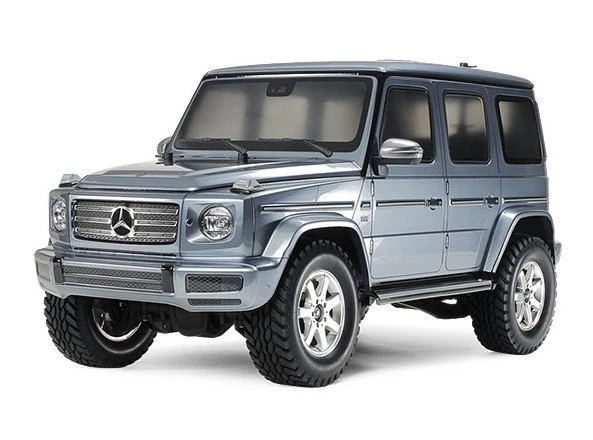

47441 Tamiya – 1/10 Mercedes-Benz G500 Bright Gunmetal Painted Body (CC02 Chassis)

The Mercedes-Benz G Class’ heavy duty chassis and distinctive body design have long made it a favorite with consumers, and in 2018 it was endowed with new models including the G 500, powered by a 4-liter V8 twin turbo engine. This R/C model assembly kit recreates the G 500. Length: 455mm, width: 196mm, height: 207mm. The boxy form is recreated accurately in polycarbonate, with separate molded parts for front grille, side mirrors and spare tire cover. The CC-02 provides a great base for the model, at home on a range of off-road surfaces and even rocky terrain.

CC-02 Chassis – Off Road, Evolved
Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with matte plated seven-spoke wheels and grippy block pattern tires.

• 1/10 scale R/C model assembly kit. Length: 455mm, width: 196mm, height: 207mm. Wheelbase: 267mm.

• TLU-01 LED Light Unit and LEDs included.

• PRE-PAINTED G 500 body is recreated accurately in polycarbonate. Separately molded parts are included for the front grille, side mirrors and spare tire cover.

• Designed for a wide range of off-road terrain including rocky surfaces, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability.

• A 4WD setup employs the motor longitudinally behind the front axle, with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears to the front and rear.

• Twenty gear ratios between 11.09:1 and 29.28:1 are possible using separately sold pinion gears, for some serious fine-tuning!

• 4-link rigid suspension front and rear, with CVA oil dampers.

• Differential Gears: 3-bevel differential gears provide a smooth driving. They can also be locked (with reassembly) for driving on poor surfaces.

• Axle Housings: Housings enclose a central differential gear and axle shafts in a rigid setup that lets the chassis take on rough terrain with ease: if one wheel rises, the other is pushed downward to help the chassis gain traction.

• Gearbox: Power from the motor is routed via the realistic looking gearbox and transfer case, from its propeller shafts to the differential gears, and finally to the wheels.

• 4-Link Suspension: A rigid setup employs 4 plastic link arms on each axle housing and four oil dampers. This ergonomic design offers superior durability and the ground clearance.

• Includes: Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit.

• Required Items: 2-Channerl radio, steering servo, 7.2-7.4volt battery pack with compatible charger, and Tamiya PS paint.

Specification:

• Adjustable Gear Ratio : Yes
• Bearings : Plastic bushing
• Body Material : Polycarbonate pre-painted body
• Body Stickers : Included
• Chassis Material : FRP Fiberglass Reinforced Plastic
• Chassis Type : CC-02
• Construction Type : Assembly Kit
• Differential Type : Gear
• Drive Type : 4WD
• Electronic Speed Control (esc) : Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
• Led Lights : Included
• Motor : Brushed 540 Type
• Requires A : 2-channel radio, steering servo, 7.2volt battery & battery charger
• Scale : 1/10
• Shock Damper : CVA Oil Filled
• Special Feature 1 : This version of the kit includes a pre-painted body in gun metal color
• Suspension : 4-Link Suspension
• Terrain Use : Multi-Purpose
