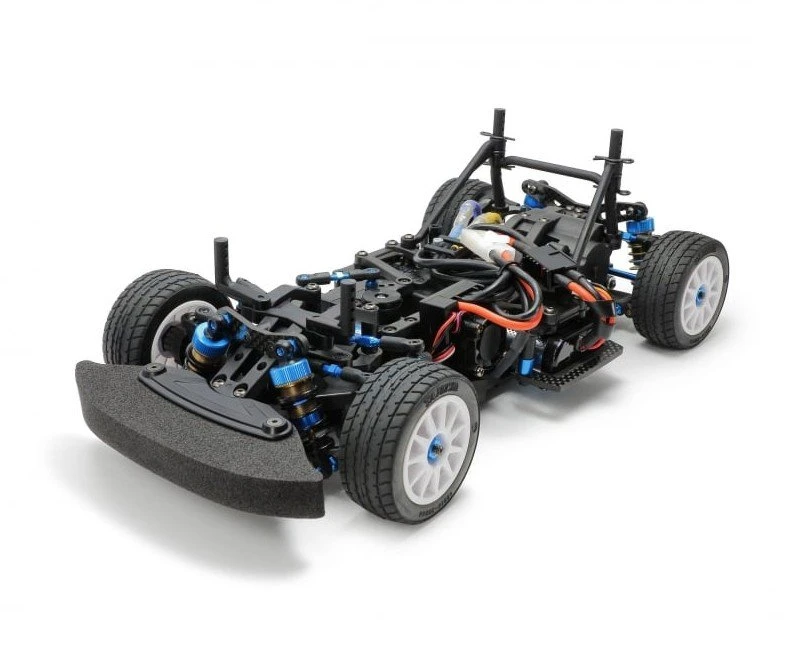

47480 Tamiya – 1/10 M-08R Chassis Kit RWD

The M-08R adds a plethora of race-spec parts to the balanced, compact RWD M-08 Concept chassis: an example being the hopped-up drivetrain with a ball differential, universal shafts featuring low-friction cross joints and lightweight aluminum swing shafts, plus 5mm wheel hubs. Turnbuckle shaft suspension arm and steering setup components simplify fine-tuning of the M-08R, and titanium-coated shafts are a durable inclusion in the kit. Carbon fiber damper stays are paired with M-Chassis big bore aluminum dampers+ featuring dedicated blue anodized top and bottom caps for a touch of class, while a 20-gram ballast weight is included to get the chassis feeling just how you want it to.

Featured Components

Drivetrain:

• Full ball bearings
• Ball differential (52T)
• 33mm lightweight aluminum swing shafts
• Cross joint for LF assembly type universal shafts
• 06 module fluorine coated 20T pinion gear
• M-08 Concept aluminum shafts
• M-Chassis reinforced freewheel axles
• 5mm clamp-type wheel hubs

Suspension:

• Carbon fiber damper stays (front/rear)
• Reinforced D parts (suspension arms)
• Aluminum turnbuckle shafts
• Titanium coated suspension shafts
• 5x5mm, 5x11mm hard hex head ball connectors
• M-Chassis big bore aluminum dampers+
• 3x 1.3mm-hole pistons
• 4mm aluminum serrated wheel nuts (blue)
• 5mm reinforced open face adjusters

Chassis:

• Carbon fiber battery holder
• Carbon fiber body mount base
• Reinforced K parts (gearbox)
• Chassis balance weight (20g)
• Hi-torque servo saver
• Aluminum ball connectors (blue)
• Hex head screws

Specifications

• Length: 319mm (with 225mm wheelbase), width: 165mm
• Alterable wheelbase: 210mm, 225mm, 239mm
• Monocoque frame with separate front and rear sections
• Midship motor, rear-wheel drive
• Ball differential
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• M-Chassis big bore aluminum dampers+
• Gear ratio = 5.776:1 (using kit 20T pinion); 8 ratios between 6.795:1 and 4.813:1 are possible with separately sold pinions)
• Electronic speed controller (ESC) is sold separately.

Separately Required Items

• Body
• Type 540 motor (brushless is recommended)
• Tires
• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger
