49191 Tamiya – 1/10 Ferrari 312T3 – F103RS

About the Ferrari 312T3
The sleek and powerful Ferrari 312T3 made its racing
debut in the 1978 South African Grand Prix. Underneath it&39;s aerodynamically
polished, wide body lay a 3-liter horizontally installed 12 cylinder engine with
510 horsepower of output. With drivers Carlos Reutemann and Gilles Villeneuve at
the wheel, the Ferrari 312T3 took a total of 4 victories for the Grand Prix
season and took second place in the 1978 Constructors Cup.

Light-weight, no-nonsense chassis
Chassis employs FRP half double-deck F103 chassis.
Front independent kingpin coil suspension coupled with rear FRP rigid coil
spring suspension. Kit comes standard with high-efficiency ball differential

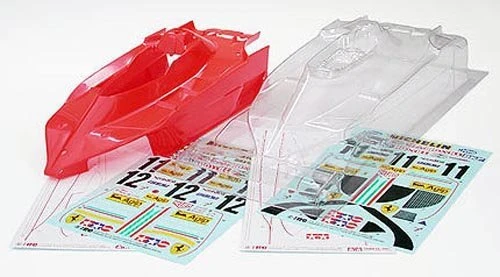

gears. Super-durable resin body and a spare transparent body are included with
kit.

Specifications

• Overall length: 447mm
• Overall width: 201mm
• Overall height: 105mm
• Clearance: 7mm
• Weight fully equipped: 1,210g (Measurement includes TP-S3003
  servo, CPR Unit and 1700MP Battery.)
• Wheelbase: 260mm
• Tread F/R: 170/155mm
• Chassis material: FRP
• Chassis shape: Half double deck frame
• Steering tie rod: 2 part, same length
• Suspension: Front and rear double wishbone
• Caster angle-F/R: 6deg/0deg
• Camber angle-F/R: 0deg/0deg
• Toe angle-F/R: adjustable/0deg
• Damper F/R: None/Adjustable friction damper
• Transmission Type: Side winder direct drive
• Gear ratio: 3.7:1
• Diff. gear system: Rear ball diff.
• Recommended speed controller: Electronic speed controller
• Front tire width/diameter: 30mm/56mm
• Rear tire width/diameter: 45mm/58mm
• Tread pattern: F/R Slicks
• Tire material: F/R both fiber mold type A
• Motor: RS- Type 540

Required Items (Sold Separately)

• R/C Unit: Adspec GT-1, or FET 2-channel R/C unit with
  electronic speed control
• Battery: Tamiya 7.2V Ni-Cd battery
• 8 R6/AA/UM3 Batteries

ELECTRIC KITS REQUIRE:(unless stated differently above)

• Radio: 2-Channel with servo(s)
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or peak for 6-cell battery
• Paint: PS for Polycarbonate/TS for ABS
• Misc. Items: Building and track equipment
