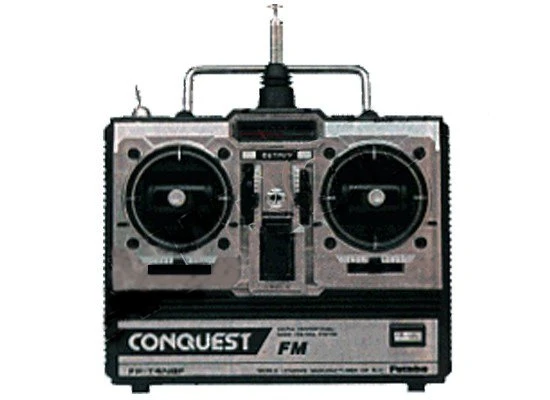

4NBL Futaba 4-Channel FM 35or40MHZ/ R115F/ 3xS3003

Futaba “Conquest” 4NBF 4 channel FM system As in the Attack system,
the Conquest comes with full NiCad batteries and charger. The Conquest is available
with micro servos and a smaller receiver battery (4NBFS, “S” for Sailplanes)
that makes it very suitable for both beginner and other small sailplanes like
handlaunch. As of now, the Conquest is no longer being manufactured, but is still
available in some stores and mail order outfits. The Conquest is an FM system
and has better signal quality than the Attack AM system. It is also equipped with
servo reversing switches.

INCLUDES:

• One Futaba 4EX Transmitter with transmitter and receiver crystals
• R115F Receiver
• S3003 Servos x 3
• NT8JY TX NICD 9.6V 4NBL BF BP
• FBC8B4 CHARGER J-SERIES FM
• NCC4 RX CHARGE CORD J FM
• ANT5 TX AT 2PB KA NCS 3PB 4NBL

SPECS:

Transmitter:

• Modulation: FM (Frequency Modulation)
• Current Drain: 250mA

R115F Receiver:

• Size: 1.4″ x 2.1″ x 0.85″ (33.4??50.4??20.5mm)
• Weight 1.03 oz. (29.5g)
• MHz: 40 / 72MHz

S3003 Servo:

• Torque: 44 oz-in (3.2 kg-cm) @ 4.8V / 57 oz-in (4.1 kg-cm) @ 6V
• Speed: 0.23 sec/60?X @ 4.8V ~ 0.19 sec/60?X @ 6V
• Dimensions: 1.6″ x 0.8 x 1.4″ (40 x 20 x 36mm) w/o output shaft
• Weight: 1.3oz (37g)
