56307 Tamiya – 1/14 RC Mercedes Benz 1850L

rn

rn

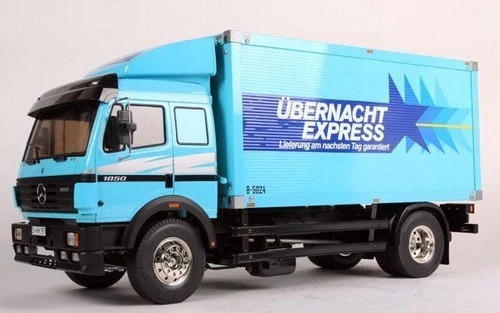

• The 1850L delivery truck is regarde as a new trend setter rn with its aerodynamically sophisticated appearance and extremely reliable mechanics. rn Tamiya&39;s model of the Mercedes-Benz 1850L realistically captures the looks rn of the full-sized truck.

rn

rn

Features:

rn

rn

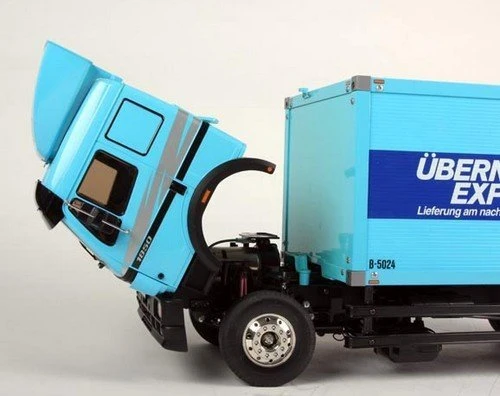

• Cab-Over Style

rn

• Leafspring Suspension

rn

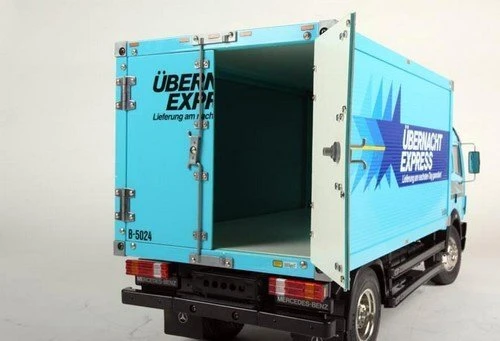

• Built-in Freight Box

rn

• Rubber Tires

rn

• Hop-up Parts Available

rn

rn

Specifications:

rn

rn
• Scale: 1/14

rn

• Length: 22.36 inches (568mm)

rn

• Width: 7.95 inches (202mm)

rn

• Wheelbase: 14.17 inches (360mm)

rn

• Front Tread: 6.14 inches (156mm)

rn

• Rear Tread: 5.43 inches (138mm)

rn

• Weight: 8.84 lbs. (4010g)

rn

• Chassis: Aluminum ladder

rn

• Suspension: Solid Axle

rn

• Damper Type: Metal friction

rn

• Drive Train: Gearbox (3-speed)

rn

• Gear Ratio: 10.6:1 – With the 3-speed gearbox, 10.6:1, rn 17.7:1 and 32.4:1 are possible

rn

• Differential Type: Bevel Gear

rn

• Engine: Electric 540

rn

• Wheels & Tires: Chrome/Radial

rn

• Body Type: Styrene(plastic)

rn

• Radio Control Unit: (not included) Can be operated with rn a 2-channel radio but a 4-channel system is recommended for potential future rn options.

rn

• Trailer: The Mecedes-Benz 1850L has a built-in trailer rn made of high quality aluminum.

rn

• Battery: Requires a 7.2V battery and charger

rn

rn

Tractor Truck Kits Requires:

rn

rn
• 4CH Radio Systems w/ Servo(s)

rn

• Recommand using Futaba Attack 4VWD 4-Channel AM 27MHZ/ rn R124H/ 3xS3003 transmitter set

rn

• 8 AA Batteries (For Transmitter)

rn

• 6-Cell Battery (7.2V)

rn

• Stick Pack (A/C/DC Charger)

rn

• TS Paints

rn

• Tools

rn

rn

Spare Parts & Hop Up Options:

rn

rn
• 56501 – Tractor truck electrical unit set

rn

• 56503 – Tractor truck oil shocks

rn

• 56507 – Telescopic antenna

rn

• 56508 – Truck aluminum front wheels (1 pair)

rn

• 56509 – Truck aluminum rear wheels (1 pair)

rn

• 56510 – Tractor truck sound effects set

rn

rn

Suggested Paint Colors:

rn

rn
• TS-41 – Coral Blue

rn

• TS-56 – Brilliant Orange

rn

• X-18 – Semi Gloss Black

rn

• X-24 – Clear Yellow

rn

• XF-11 – J.N. Green

rn

• XF-26 – Deep Green

rn

• XF-27 – Black Green

rn

• XF-66 – Light Grey
