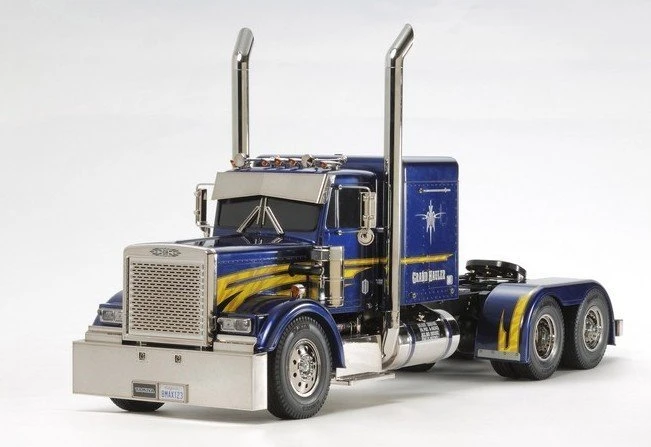

56344 Tamiya – 1/14 Grand Hauler Tractor Truck

The Grand Hauler ,the modern style US Trucks and best known names for heavy haulers.

This 1/14 Scale RC model recreates the glamorous customized from of a classic tractor truck with boxy, elongate hood. The model uses a realistic chassis featuring numerous metal parts, and allows gear changes while the model is running. Length: 692mm, with: 192mm, height: 330mm.

• Assembly type 3-speed transmission allows gear changes via separately available 4-channel transmitter.
• Ladder frame chassis features aluminum side channels with resin cross members and is equipped with coupler to enable linkage with semi-trailer.
• Power from the front-mounted motor is delivered to rear axles via propeller shaft. Built-in differential gear on each axle enables smooth cornering.
• Highly realistic suspension utilizes metal leaf springs and friction dampers. The model enjoys easy driving thanks to the float-mounted die-cast front and reinforced resin rear axles.
• The body’s customized air is enhanced by a bulky rectangular front bumper and fat mufflers, joined by big fuel tanks and air cleaners A wide range of metal-plated parts and the finishing touch. For further realism, the interior depicts dashboard, steering wheel, seats and more.

Spec:

• Scale 1/14
• Construction type Assembly kit
• Terrain use On-Road
• Drive-train 4-axle semi
• Drive type 3-speed
• Drive line Dog bone
• Differential type Live axle
• Suspension Leaf spring
• Steering mechanism Bell-crank
• Shock damper Friction damper
• Shock damper material Aluminum
• Tire type Rubber
• Tire tread Radial
• Body material ABS Plastic
• Chassis material Aluminum & plastic
• Electronic Speed Control (ESC) Not included
• ESC model N/A
• LED Light buckets Yes
• LED lights No
• Motor 540-brushed type
• Bearings Metal bearings
• Adjustable camber Fixed
• Adjustable toe angles Front only
• Adjustable ground clearance Fixed
• Adjustable gear ratio 3-speed transmission
• Adjustable wheelbase Fixed
• Adjustable track width Fixed
• Adjustable shock angle Fixed
• Special feature 1 Length: 692mm, width: 190mm, height: 300mm.
• Special feature 2 The realistic, lengthened body features newly-designed parts
  depicting front and rear bumpers, front grille, air cleaners and muffler covers. Muffler
  covers are made from metal tubing.
• Special feature 3 Features a tough ladder frame construction with aluminum side
  channels and plastic cross members.
• Special feature 4 Realistic drivetrain setup sees the front mounted motor powering
  twin rear axles.
• Special feature 5 Metal leaf spring dampers with built-in coil springs provide
  durable suspension.

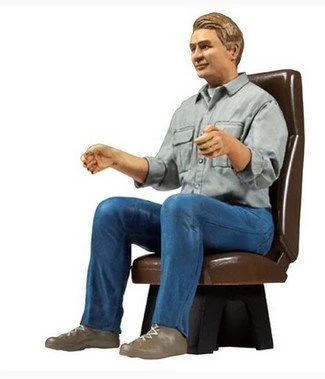

• Special feature 6 Newly-designed 1/14 scale driver figure included.
• Special feature 7 Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailer.
• Requires A 7.2 battery & charger
• Requires B 4-channel radio gear
• Requires C Electronic speed control
• Requires D TS plastic model paint
