56523 Tamiya – MFC-03 Euro-Style Multi Function Control Unit

Tamiya 56523 in addition to multi-function control units which enable various
lights, sound and vibration effects in Euro-Style. which adds a whole extra
layer of realism to driving, receives an update. This unit allows transmitter
trim levers to be combined with stick control use, meaning you can enjoy lights,
sounds and vibrations coordinated with actions while driving your R/C tractor
truck model.Engine sounds recorded from the real European L6 Diesel. Lights,
sound and vibration controllable from transmitter. Air sound effects expertly
recreated. Vibration levels linked to engine speed for supreme realism. Engine
sound changes when coupled to trailer

Specification:

• Features 33 different types of sound, including engine ignition and shutdown, horn, gear changes, brakes, air sound effects and so on. A 60mm-diameter full-range speaker in a resin case provides excellent quality.
• Up to 21 actions can be controlled using a 4-channel transmitter. Tamiya/Futaba
  4VWD Attack 2.4 GHZ Radio System 4-channel and 4YWD-2.4G are recommended for
  best compatibility.
• Light operation and volume adjustment are also possible using the transmitter.
• Includes white, red and yellow high brightness LEDs to duplicate truck HID lights with precision.
• An ESC has been built in to the unit, enabling realistic running at very low speeds.
• The MFC unit can be run in three modes: R/C mode with Multi-Function (lights and sounds) off; Multi mode, with R/C and multi-function on; Demo mode, which allows display of lights and sounds only.
• Can be used for support leg operation when employing Item 56505 Motorized Support Legs.
• Cannot be used together with Item 53909 TLU-01 or Item 53937 TLU-02 LED light units.
• Requires separately sold 4ch transmitter with slide trims, 4ch receiver and
  2 servos (3 if using Item 56505). Tamiya Attack 2.4 GHZ Radio System 4-channel
  recommended for best compatibility.

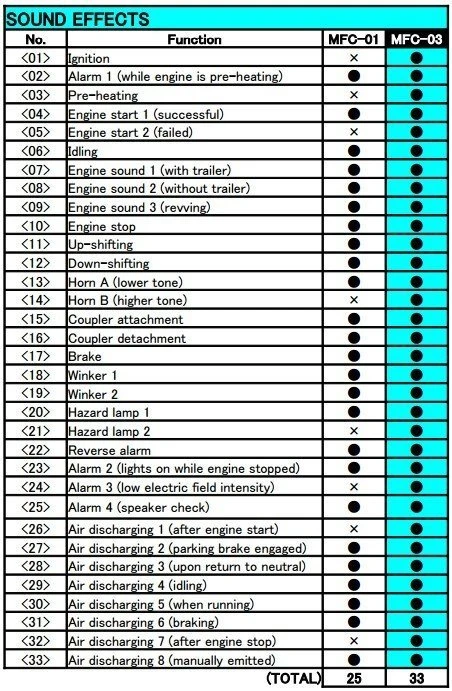

• Sound effects x 33 Actions

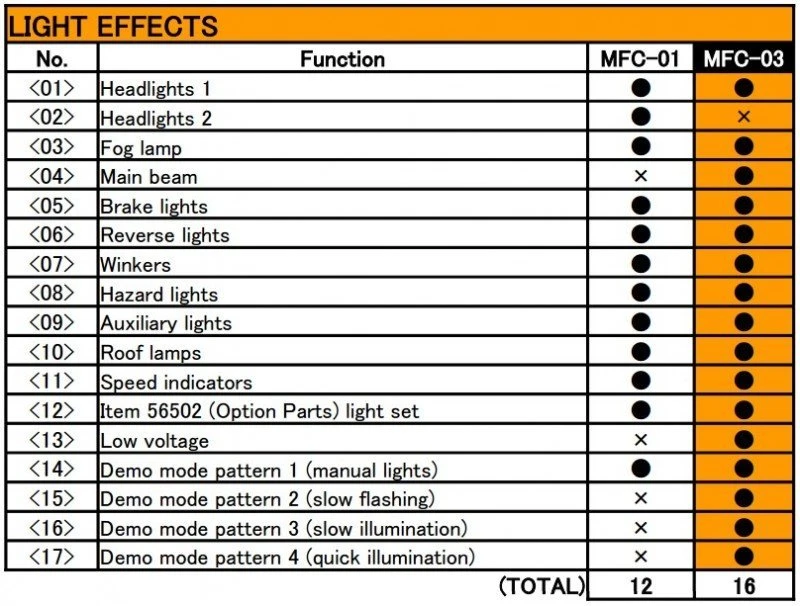

• Light effects x 16 Actions

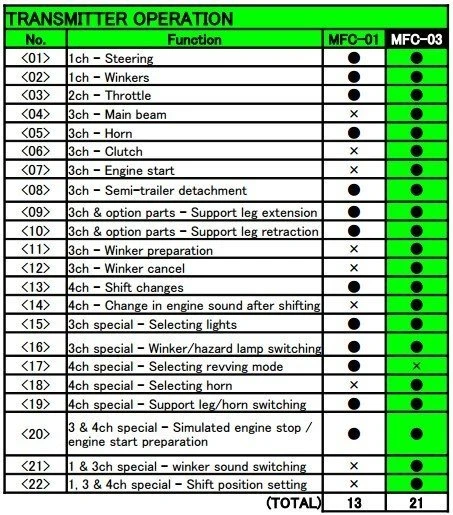

• Operation x 21 Actions

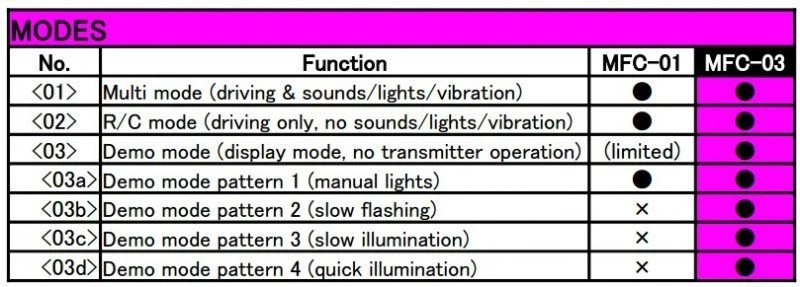

• Mode x 3 Modes
• Vibration Device

MFC-03 Specifications

• Voltage: 6.6-7.2V
• Usable Temperature : -10 degree to 50 degree
• Storage Temperature : -20 degree to 50 degree
• Maximum motor current: 60A
• Usable motors: kit-included Type 540 motor,Tamiya tractor truck option parts
  motors.

Required R/C System

• This kit requires the following items (not included in kit): a 4ch transmitter
  (self-neutral stick type with lever-type 4ch sliding trims), a 4ch receiver,
  and 2 servos (3 when using with 56505 Motorized Support Legs.)
• Electronic speed controller and receiver battery (6V) are not required.
• Recommended R/C transmitter/receiver units: Futaba ATTACK 4YWD-2.4G / R204
  GF-T or Futaba ATTACK 4WD T4VWD/FP-R114H. *Transmitters with click-touch type
  trims may cause difficulty when using with
• Tamiya Multi-Function Control Units.
• If using transmitter other than those recommended above, ensure that is it
  self-neutral type and uses sliding trim levers. Transmitters with no self-neutral
  system or non-sliding trim levers (e.g. click-touch) may not realize optimum
  efficieny.
• Some connectors may not be compatible, or modification may be required.
• Never use with wheel trigger type transmitters or transmitters without trims.
• PCM receiver, multi-channel receivers cannot be used with this kit.
• When installing this unit into conventional truck models, servo extension
  cables may be required. Use extension cables (sold separately) to ensure cable
  length exceeds 50cm.
