57405 Tamiya – RC Trike T3-01 Dancing Rider

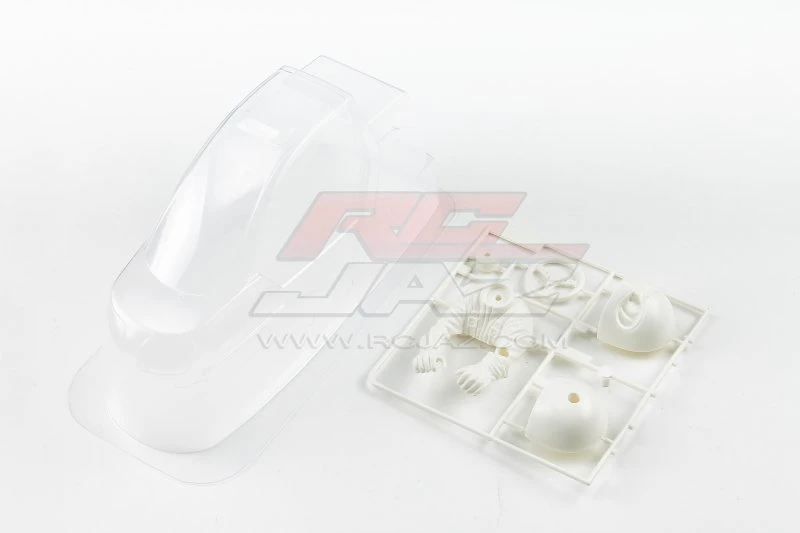

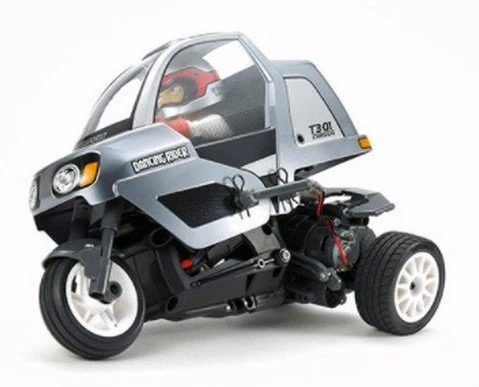

Lord of the Dance This R/C model assembly kit creates the Dancing Rider, a supremely fun 3-wheeled model that offers an exciting lean when cornering. An original body is included with the kit, and was designed under the supervision of famed Japanese artist Atsushi Arino. It is molded in lightweight polycarbonate, and comes with a molded driver figure for an extra touch of fun.

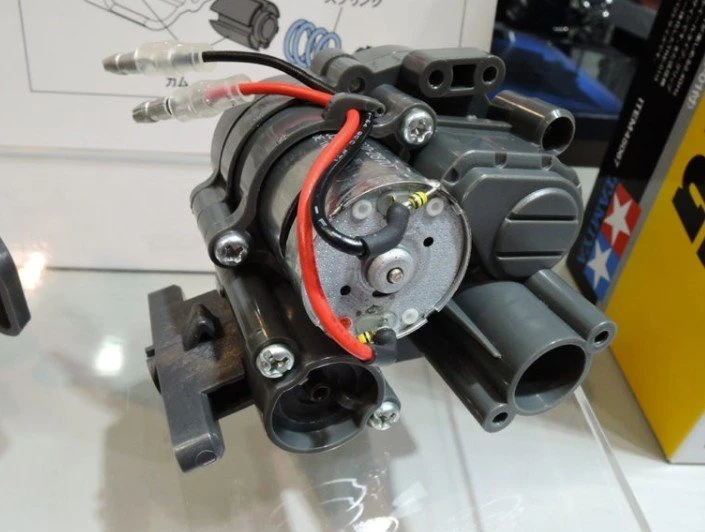

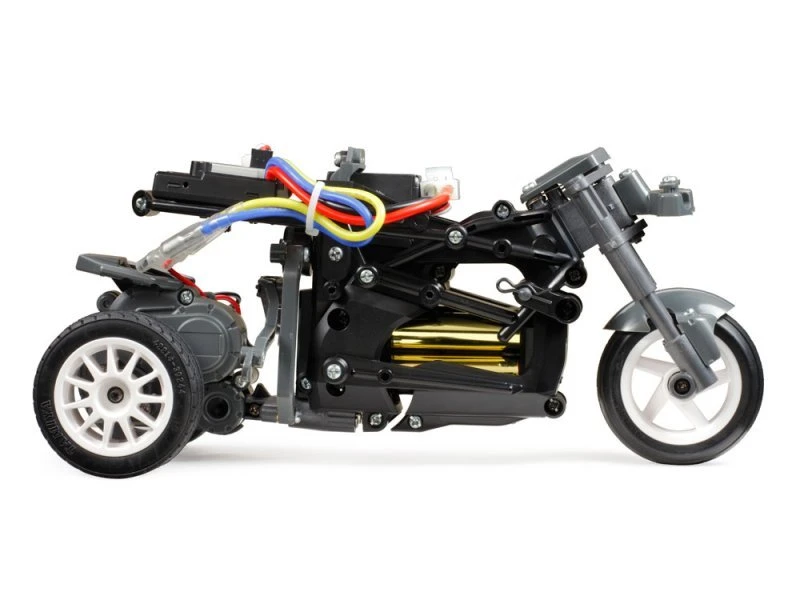

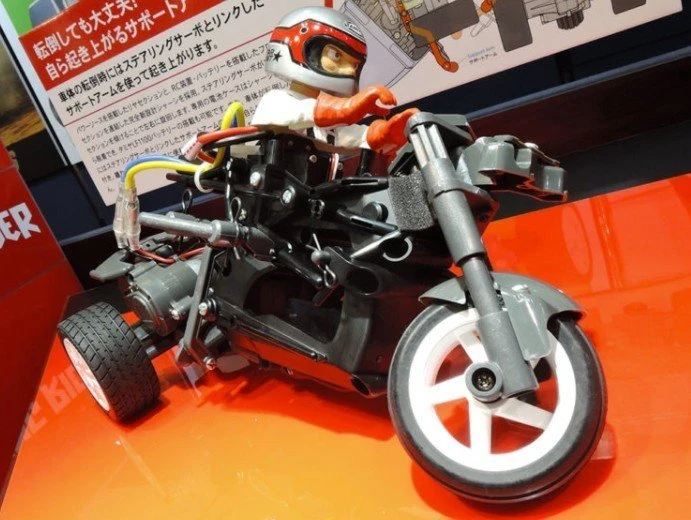

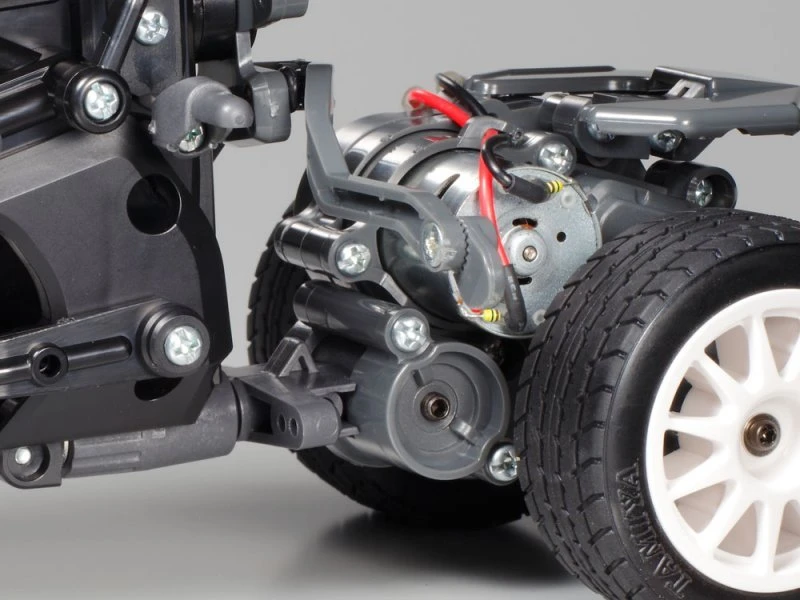

T3-01 Chassis: Designed for Fun The T3-01 is a three-wheeled chassis comprised of two main sections (front and rear) connected by a center link; the front section houses R/C equipment and the power source, while the rear holds the integrated gearbox and motor. Positioned in the back of the front section, the servo applies motion to the rear section, which in turn makes the front lean. Support arms are moved by the servo, and help the model to self-right in the event that it turns onto its side. At the front, a telescopic fork has a built-in coil spring, while the rear features a cam-slide setup with cams on the rotating pitch axis: sliding left and right, they actuate the built-in coil spring to cushion the rear. A planetary differential gear is integrated into the rear axle.
Specifications

Length: 260mm

Width: 135mm

Height: 175mm

Wheelbase: 196mm

Tread (Rear): 91mm

Tire Width/Diameter 21/61mm (Front), 25/59mm (Rear)

Monocoque Chassis

Rear-Wheel Drive

Planetary Differential Gear

Front Suspension: Telescopic Fork

Rear Suspension: Cam-Slide

Gear Ratio = 10.7:1

Requires an Electronic Speed Controller (sold separately)

Type 370 Motor included

Separately Required Items

2-Channel R/C System w/ESC

R6/AA/UM3 batteries for transmitter

Power source
