57802 Tamiya – XB Alfa Romeo MiTo – M-05 CHASSIS

The Baby Alfa

The three-door Alfa Romeo MiTo made its debut in 2008. It was named after
Milan, where it was designed, and Torino, where it was manufactured. Featuring
a stylish form and a sporty driving performance powered by a front-mounted 1.47
liter inline 4-cylinder engine, the MiTo attracts many fans all around the world.
This is a ready-to-run R/C model of the cute MiTo. The stylish form of the car
as well as its shield-shape front grille have all been realistically reproduced
with durable polycarbonate. Separate light case parts are also included to enhance
the scale realism. You can enjoy the same great handling performance as that
of the actual car with the front wheel drive M-05 chassis right out of the box!

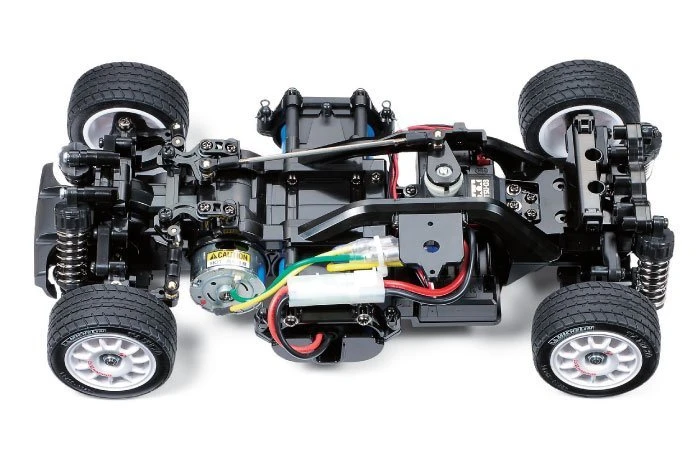

Low Center of Gravity M-05 Chassis

The front wheel drive M-05 chassis features a lightweight, narrow, durable,
and an easy-assembly semi-monocoque resin frame. Gearbox, motor, battery pack,
receiver, servo and ESC are positioned for optimum weight distribution and a
low center of gravity. Ground-hugging 4-wheel independent double wishbone suspension
and the 3-piece steering linkage provides stable high-speed cornering. In addition,
60D radial tires with tread pattern are mounted on 11-spoke wheels.

Specs & Features

• Length: 383mm,
• Width: 170mm,
• Height: 130mm
• Wheelbase: 239mm (long wheelbase)
• Tread (Front & Rear): 138mm
• Front-Mounted Motor Front Wheel Drive
• 3-Bevel Differential Gears
• 3-Piece Steering Tie-Rod
• Front & Rear Double Wishbone Suspension
• Front & Rear Friction Dampers
• Gear Ratio=5.8 :1
• Tire Width/Diameter: 25/59mm
• Type 540 Motor Included
• Electronic Speed Controller (Forward/Reverse Type) Included.
• Requires R6/AA/UM3 Batteries (x8) for Transmitter (sold separately).
