57896 Tamiya – 1/10 XB Mercedes-Benz Unimog 425 (CC-01)

The Tamiya CC-01 (Cross Country) chassis is a favorite vehicle amongst R/C
enthusiasts. It&8217;s easy to assemble and offers realistic cross country
running. The list of body styles available has grown with the addition of the
Unimog 425. The Unimog, of course, is a multi-purpose truck with unrivalled
off-road performance and its name is an acronym which stands for the German
description “UNIversal-MOtor-Gerat.” The 425 variant was a heavier
model that was produced in the 1970s and 1980s. It featured a 120hp engine and
2.81m wheelbase.

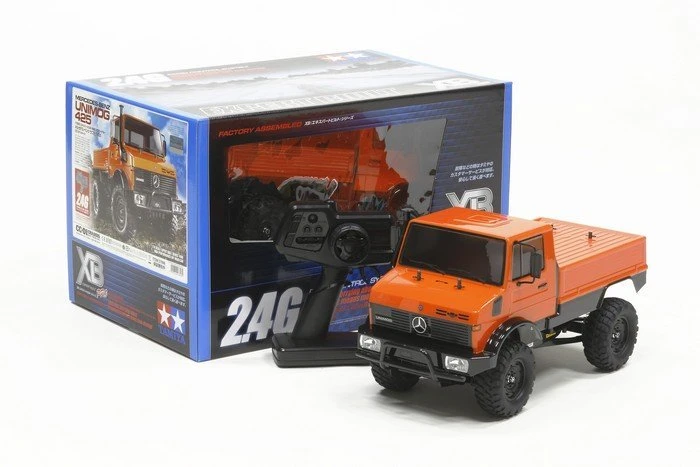

This is a factory painted and ready-to-run R/C model of the Mercedes-Benz Unimog
425. The super detailed polycarbonate body is mated to the fun to drive and
easy to maintain CC-01 chassis. It features 2WD with front double-wishbone,
rear 4-link rigid-suspension and it comes equipped with 4 CVA oil dampers. The
pre-installed 2-channel radio system operates on 2.4GHz technology, which allows
you to run your vehicle anywhere without the need to worry about other R/C enthusiasts
nearby.

Specifications:

• Scale: 1/10
• Construction type: RTR (Ready-to-Run)
• Terrain use: Multi-Purpose
• Drive-train: 4WD
• Drive type: Gearbox
• Drive line: Dog bone
• Differential type: Gear
• Suspension: Front double wishbone, rear 4-link solid axle
• Steering mechanism: Bell-crank
• Shock damper: Oil-filled damper
• Shock damper material: Plastic
• Tire type: Rubber
• Tire tread: Radial
• Body material: Polycarbonate
• Chassis material: Plastic
• Electronic Speed Control (ESC): Included
• ESC model: TEU-105BK
• LED Light buckets: No
• LED lights: No
• Motor: 540-brushed type
• Bearings: Plastic bushing
• Adjustable camber: Fixed
• Adjustable toe angles: Front only
• Adjustable ground clearance: Fixed
• Adjustable gear ratio: Yes
• Adjustable wheelbase: Yes
• Adjustable track width: Fixed
• Adjustable shock angle: Fixed
• Special feature 1: The angular body lines of the Unimog 425 are accurately
  depicted in durable polycarbonate and pre-painted in orange.
• Special feature 2: The CC-01 chassis features a full-time 4WD system and
  front double wishbone, rear 4-link rigid suspension equipped with 4 CVA oil
  dampers.

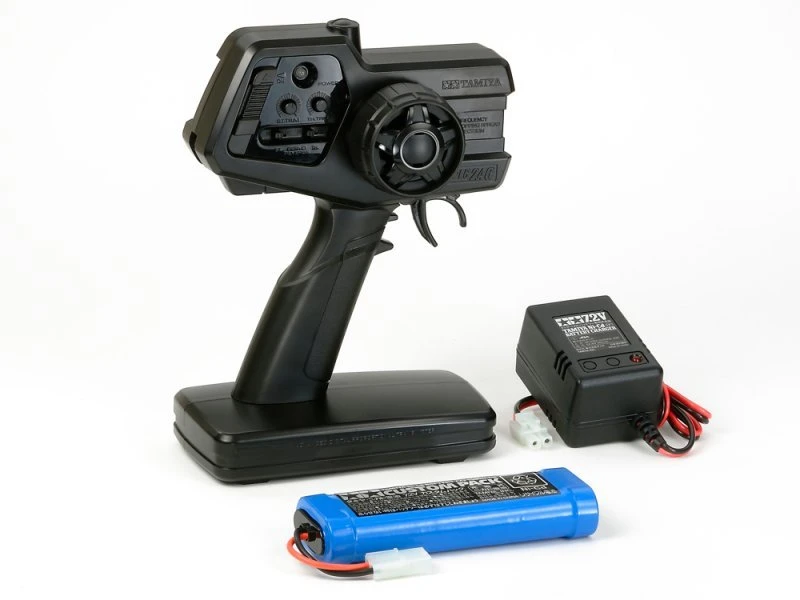

• Special feature 3: Finespec 2.4GHz R/C system is pre-installed.
• Special feature 4: TEU-105BK ESC (equipped with BEC) comes pre-installed.

Required for Operation:

• 7.2 battery & charger
• AA batteries
