58243 Tamiya – 1/10 TA03R-S TRF Special Chassis

About the Model

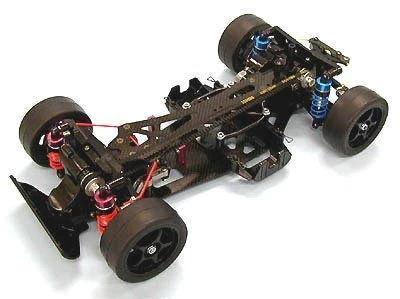

A new TRF Chassis addition to the 1/10 electric
touring car TA03 series, which is a favorite among R/C fans. The TA03R-S TRF

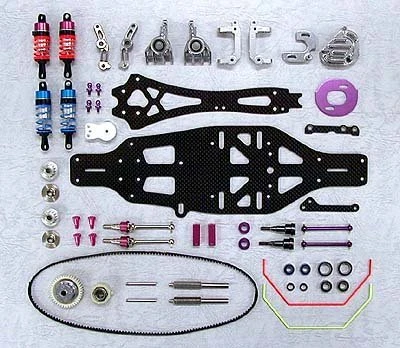

Special Chassis Kit features a midship mounted motor for quick handling and 28
option parts for improved performance. Lightweight, rigid double deck chassis
kit consisting of perforated 2.5mm thick carbon fiber main chassis and 2mm thick

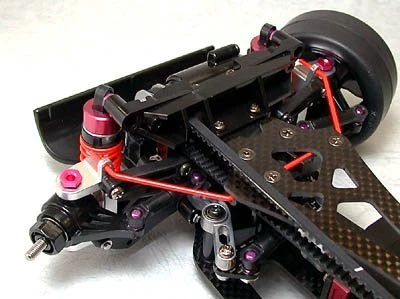

carbon fiber upper deck. Efficient belt driven 4wd chassis with four wheel
independent double wishbone suspension, full bearings and several other
race-tested option parts. Responsive chassis satisfies the strict requirements

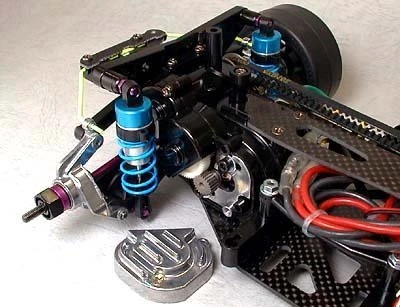

of experienced drivers. Super Low Friction Dampers, Universal Shafts and a host
of specially colored aluminum parts create the special kit image.

Basic Specifications

• Overall Length= 354mm
• Overall Width= 192mm
• Clearance= 9mm
• Weight Fully Equipped= 1400g (Measurement
  includesTP-S3003 servo, CPR Unit and 1700SP Battery. Body not included.
• Wheelbase= 237mm
• Tread F/R= 157mm/165mm
• Chassis Material= 2.5mm thick Carbon
  Fiber+2.0mm thick Carbon Fiber
• Chassis Shape= Double Deck
• Steering Tie Rod= 3 part
• Suspension= Front and Rear Double Wishbone
• Caster Angle-F/R=8/3
• Camber Angle-F/R=1.5/1.5
• Toe Angle-F/R=Variable/1.5
• Damper= F/R Super Low Friction Dampers
• Transmission Type=Belt Driven 4WD
• Gear Ratio=7.34:1
• Differential=F/R One Way/Ball Differential
• Recommended Speed Controller: Electronic
  Speed Controller
• Tire Width/Diameter=27/65mm
• Tread Pattern=Front and rear Reinforced
  Racing Slicks Type A
• Tire Material=Synthetic Rubber

Required Items (Available Separately)

• Body: 1/10 Touring Car Body (50695 Taisan
  Starcard Porsche 911GT2 and 50747 Porsche 911GT1)
• R/C Unit: Adspec GT-I or 2-channel R/C unit
  with electronic speed control
• Motor: RS540 class
• Battery: Tamiya 7.2V Racing Pack

ELECTRIC KITS REQUIRE:
(unless stated differently above)

• Radio: 2-Channel with servo(s)
• Battery: 6-cell flat with standard Tamiya
  connector
• Charger: AC/DC timed or peak for 6-cell
  battery
• Paint: PS for Polycarbonate/TS for ABS
• Misc. Items: Building and track equipment
